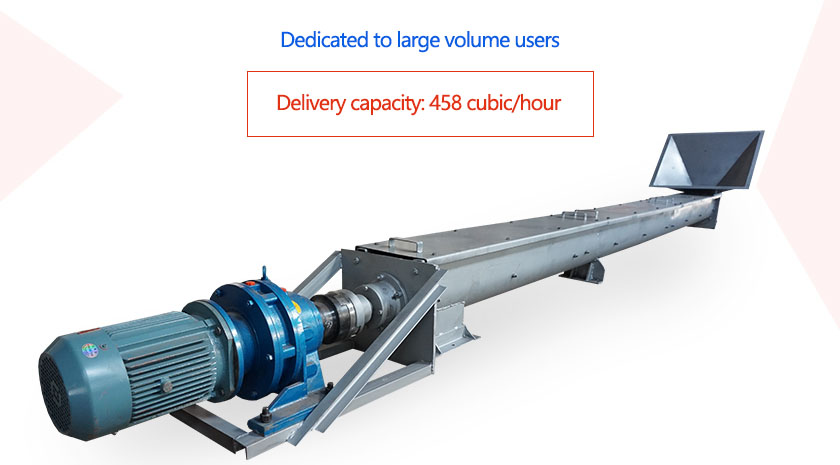

It is specially designed for large-scale screw conveyors with large conveying volume requirements and long conveying lengths to meet the conveying operations of large-volume users.
Price: $900.00 - $35,000.00/Set Chat Now
Diameter: 630mm, 800mm, 1000mm, 1250mm
Delivery capacity: 458 cubic meters per hour
Conveying length: 70 meters
Material: stainless steel, carbon steel
Shape: tubular, U-shaped
Large Screw Conveyor is a large-scale screw conveyor specially designed for users with large output. It is mainly designed for users with large conveying capacity and long conveying length. It can convey bulk materials horizontally, inclined or vertically.
The selection of Large Screw Conveyor can determine the size, screw speed and power of the screw conveyor according to the nature of the conveyed material, conveying volume, conveying distance, inclination angle, installation environment, etc. The large screw conveyor can also be selected according to different requirements Installing different screw shafts requires more conveying volume than a single shaft, which can be appropriately increased according to the different conveying volumes, but half of the increase is an even number, and it can be increased to 6 at most. The length is different, and the degree of mixing and stirring is also different. , the length is short, the time from the feed port to the discharge port is short, the degree of mixing and stirring is light, the length is longer, the time for the material to go from the feed port to the discharge port is longer, the stirring frequency is more, and the degree is heavier.

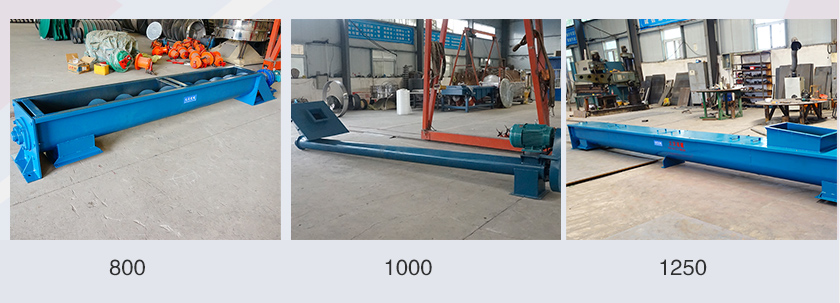

Large Screw Conveyor has screw diameters of 800mm, 1000mm, and 1250mm, and the delivery capacity per hour can reach 160-458 cubic meters per hour.
| LS type | 800 | 1000 | 1250 |
| Spiral diameter (mm) | 800 | 1000 | 1250 |
| Pitch (mm) | 500 | 560 | 630 |
| Speed (r/min) | 45 | 35 | 30 |
| Delivery capacity QΦ=0.33 (m³/h) | 223 | 304 | 458 |
| 功率Pd 1=10m（KW） | 12 | 16 | 24.4 |
| Power Pd 1=30m (KW) | 36 | 48 | 73.3 |
| Speed (r/min) | 35 | 30 | 20 |
| Delivery capacity QΦ=0.33 (m³/h) | 174 | 261 | 305 |
| Power Pd 1=10m (KW) | 9.4 | 14.1 | 16.5 |
| Power Pd 1=30m (KW) | 28.3 | 42.2 | 49.5 |
| Speed (r/min) | 30 | 20 | 16 |
| Delivery capacity QΦ=0.33 (m³/h) | 149 | 174 | 244 |
| Power Pd 1=10m (KW) | 8.1 | 9.5 | 13.3 |
| Power Pd 1=30m (KW) | 24.4 | 28.6 | 39.9 |
| Speed (r/min) | 20 | 16 | 13 |
| Delivery capacity QΦ=0.33 (m³/h) | 99.3 | 139 | 199 |
| Power Pd 1=10m (KW) | 5.7 | 7.7 | 11 |
| Power Pd 1=30m (KW) | 16.7 | 23.2 | 33 |

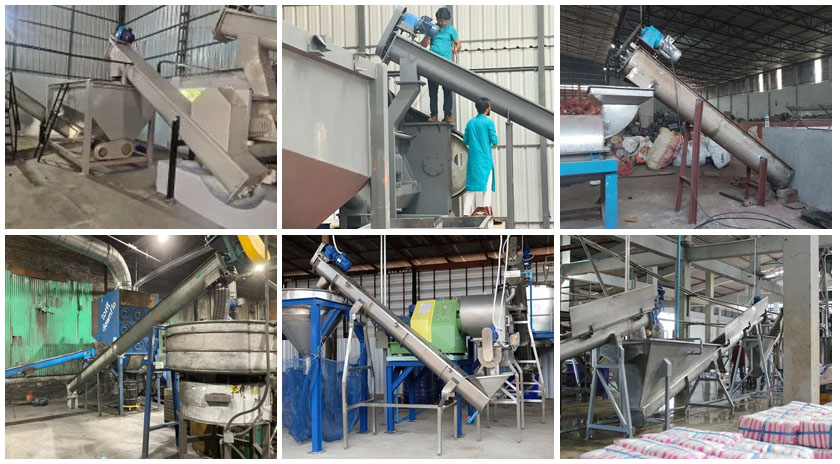

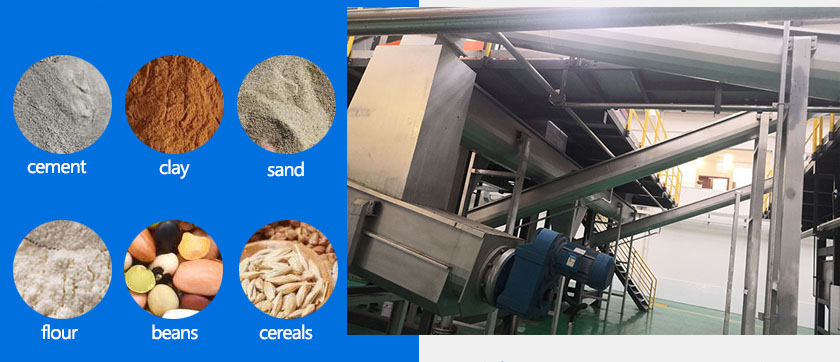

Large Screw Conveyor is used in various sectors of the national economy such as grain industry, building material industry, chemical industry, machinery manufacturing industry, and transportation industry. The screw conveyor is mainly used to convey various powdery, granular and small lump materials. The bulk materials conveyed include grain products such as grains, beans and flour, building materials such as cement, clay and sand, salts and alkalis. , fertilizers and other chemicals, as well as coal, coke, ore and other bulk cargo. The screw conveyor is not suitable for transporting materials that are perishable, viscous, bulky and easy to agglomerate. In addition to transporting bulk materials, screw conveyors can also be used to transport various finished items. Large Screw Conveyor can complete mixing, stirring, cooling and other operations while transporting materials.

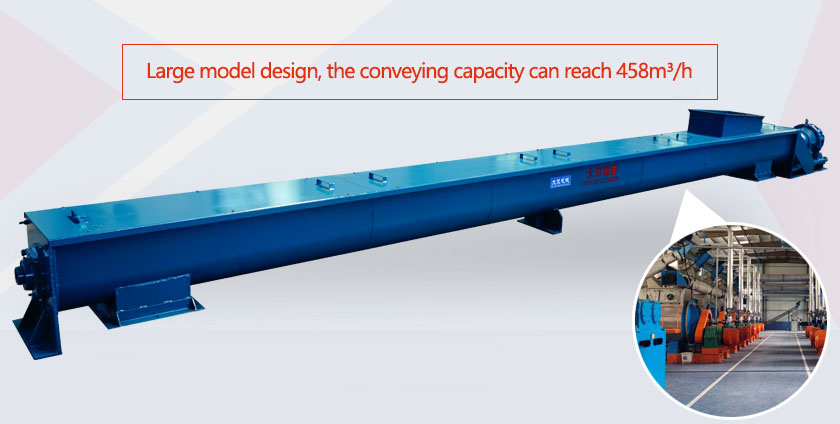

1. Large-scale design, the conveying capacity can reach 458 cubic meters per hour, and the length can reach 70 meters.
2. It can be transported in reverse, and a conveyor can also transport materials in two directions at the same time, that is, to the center or away from the center.
3. It can realize sealed transportation, which is conducive to the transportation of materials that are easy to fly, hot and smelly, and can reduce environmental pollution.
4. It is convenient to load and unload, and can be loaded and unloaded at any point on its conveying line.

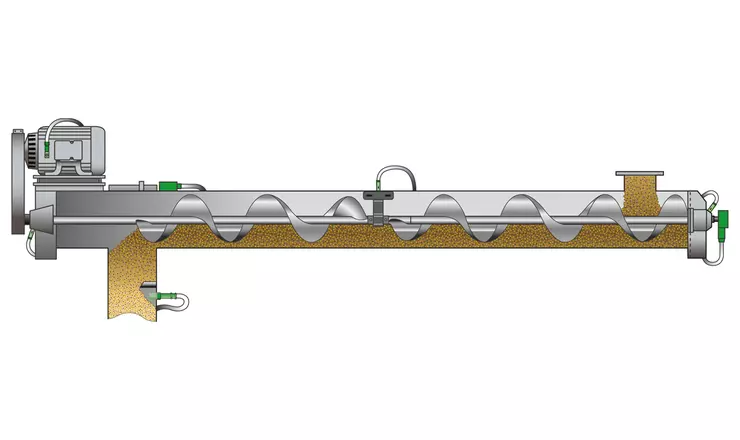

The Large Screw Conveyor mainly pushes the material through the rotating screw blades in the conveyor, and the force that prevents the material from rotating with the blades is the weight of the material itself and the frictional resistance of the casing to the material, and then pushes the material to migrate. , so as to achieve the purpose of transportation.

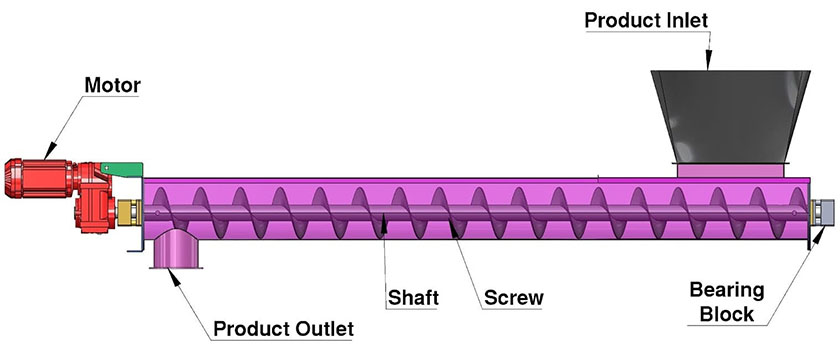

The Large Screw Conveyor is mainly composed of three parts: the screw machine body, the inlet and outlet, and the driving device.
The screw machine body is composed of head bearing, tail bearing, suspension bearing, screw, casing, cover plate and base.
The driving device is composed of a motor, a reducer, a coupling and a base.
