Mobile Screw Conveyor

Universal wheels are installed at the bottom of the Mobile Screw Conveyor, which can be moved at any time, and is suitable for conveying powder, granules and small lump materials in unfixed places.

Price: $800.00-$32,000.00/Set Chat Now

Delivery capacity: 1.2-199 cubic/hour

Conveying length: 2-70 meters

Spiral speed: 25-140 rpm

Conveying Angle: Inclined/Vertical

Material: carbon steel/stainless steel

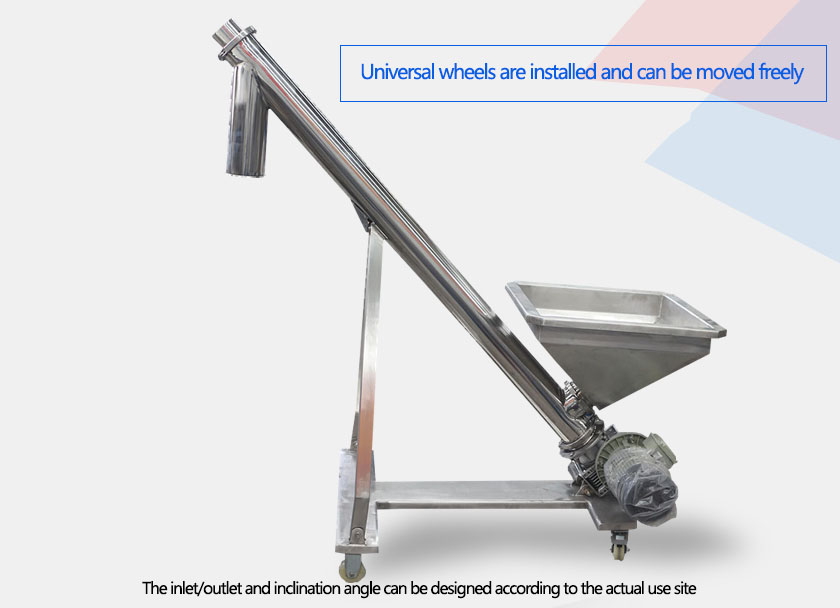

Mobile Screw Conveyor

What is Mobile Screw Conveyor?

The Mobile Screw Conveyor is installed on a frame with locking casters and can be moved freely in the factory. It is suitable for conveying operations of bulk materials without a fixed position. It can flexibly meet the installation requirements of most applications and mobile systems, thereby achieving flexibility in the factory ;The inlet and outlet of the Mobile Screw Conveyor can be made into the required inclination angle according to the conditions of the work site, and it can be connected and fixed with other supporting equipment.

Introduction of Mobile Screw Conveyor

Mobile Screw Conveyor Videos

Conveying lime powder

Mobile Screw Conveyor Application

Mobile Screw Conveyor is used to convey free-flowing and non-free-flowing bulk materials, and is suitable for conveying bulk materials and other unfixed locations. For use on factory mobile conveyor systems, ideal for unloading bulk bags. It is often used in the transportation of bulk materials in feed, chemical, food processing, and grain processing, grain storage, various additives, construction engineering and other industries.

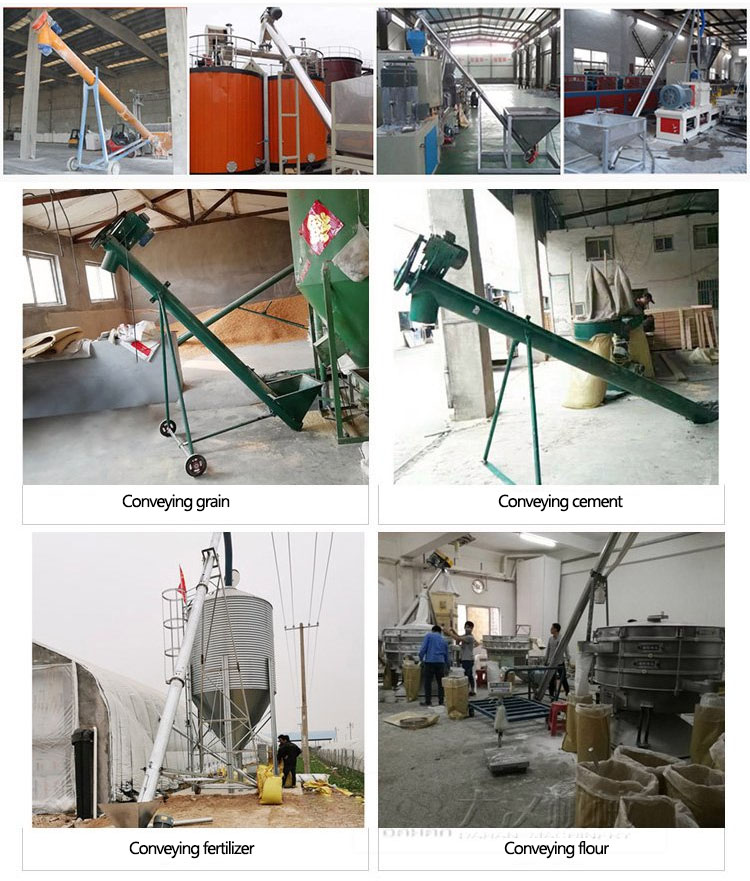

Application

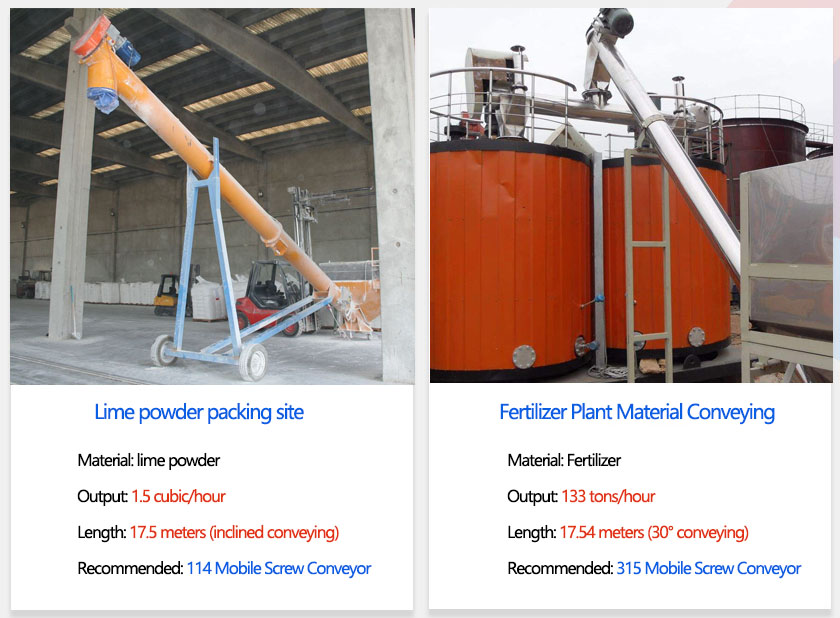

Customer Site

Customer site

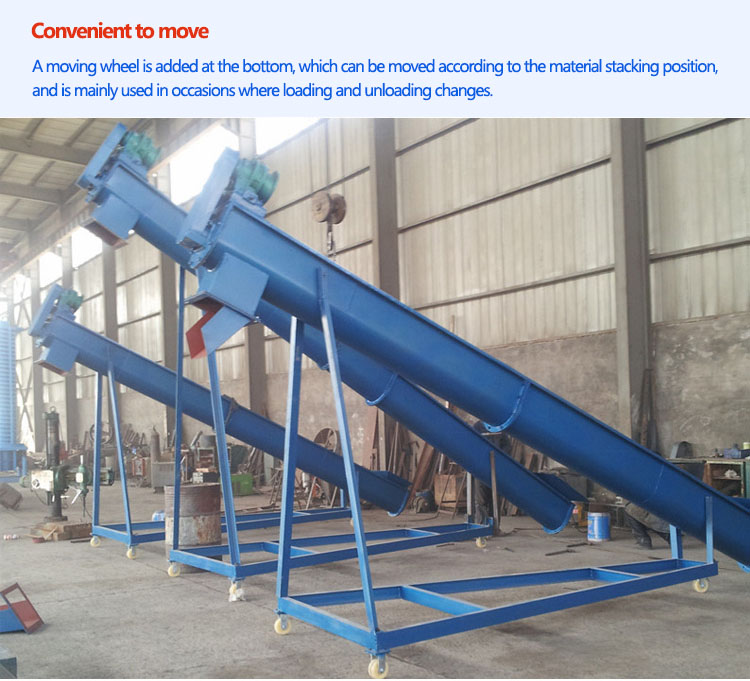

Mobile Screw Conveyor Features

1. It can move freely: the bottom is equipped with moving wheels, which can be moved freely according to the site conditions. Two people can push it in and out of the warehouse, which can be used in occasions where the loading and unloading place changes.

2. Large processing capacity: it can be arranged tiltedly or vertically, the conveying capacity can reach 199 cubic meters per hour, and the length can reach 70 meters.

3. Random adjustment: the feeding motor and the vibration motor can switch and control the vibration amplitude, and the whole screw can be easily disassembled and cleaned.

4. The feeding amount is adjustable: the machine has automatic feeding and automatic stop (independent use needs to install our company's control system in order to complete the automatic feeding function).

5. Easy installation and disassembly: the screw and the soft connection between the barrel and the silo make it easy to disassemble; there is a valve and a forward and reverse switch at the lower end of the barrel, which is easy to clean;

Features

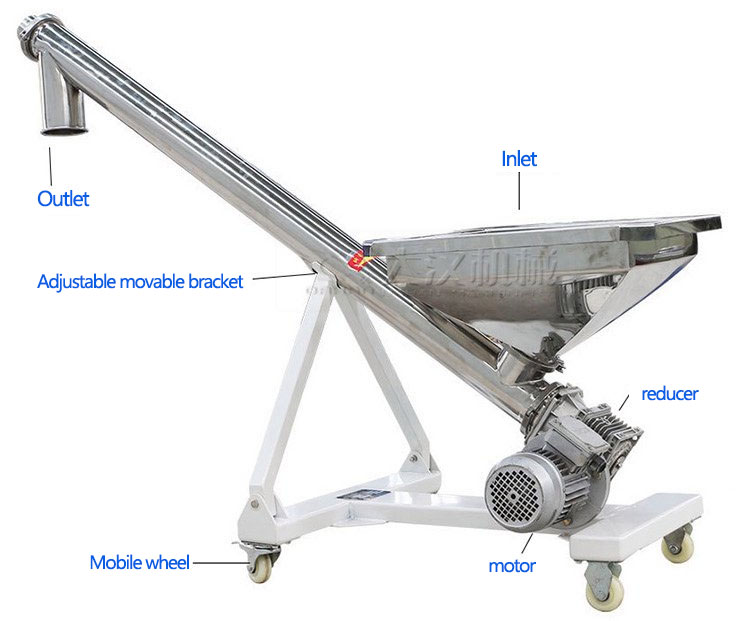

Mobile Screw Conveyor Structure

The Mobile Screw Conveyor consists of a frame mounted on casters, a support frame and a hopper. The shell is connected by steel pipes through flanges to form a whole, and the inlet and outlet and inclination angle can be designed and installed according to user needs.

Structure

Dual motors: screw motor and vibrating motor, each controlled independently.

Universal wheels: Universal wheels are installed under the equipment, which can be moved freely, especially suitable for operations in non-fixed positions such as bulk material loading.

Mobile Screw Conveyor can be customized according to your requirements, such as flange diameter, distance between inlet and outlet, installation inclination, shape (U-shaped, tubular, shaftless), inlet size, etc., and can also be customized with screens and mixers , supporting the use of silos.

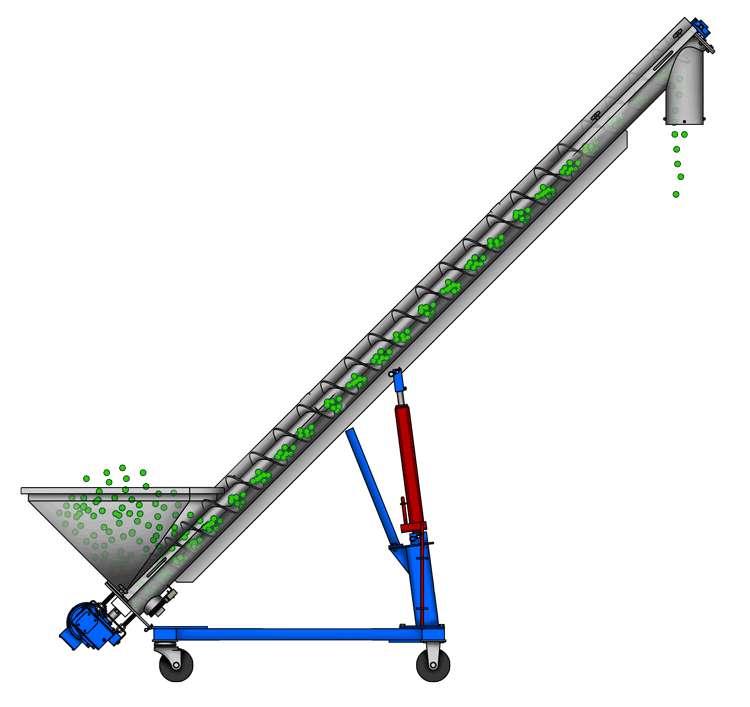

Mobile Screw Conveyor Principle

The material is conveyed into the shell of the Mobile Screw Conveyor through the feed port, and subjected to centrifugal force and pipe wall friction in the inner spiral groove, rotates with the spiral blade, slides down along the spiral groove under the action of gravity, so that the material is continuously pushed forward and conveyed evenly discharged from the outlet.

How Mobile Screw Conveyor works

Mobile Screw Conveyor Technical Parameters

LS type 100 160 200 250 315 400 500 630 800 1000 1250
GX type     200 250 300 400 500
Spiral diameter (mm) 100 160 200 250 315 400 500 630 800 1000 1250
Pitch (mm) 100 160 200 250 315 355 400 450 500 560 630
Speed (r/min) 140 120 90 90 75 75 60 60 45 35 30
Delivery capacity QΦ=0.33 (m³/h) 2.2 7.6 11 22 36.4 66.1 93.1 160 223 304 458
功率Pd 1=10m(KW) 1.1 1.5 2.2 2.4 3.2 5.1 4.1 8.6 12 16 24.4
Power Pd 1=30m (KW) 1.6 2.8 3.2 5.3 8.4 11 15.3 25.9 36 48 73.3
Speed (r/min) 120 90 75 75 60 60 45 45 35 30 20
Delivery capacity QΦ=0.33 (m³/h) 1.9 5.7 18 18 29.1 52.9 69.8 125 174 261 305
Power Pd 1=10m (KW) 1.0 1.3 2.1 2.1 2.9 4.1 4.7 6.8 9.4 14.1 16.5
Power Pd 1=30m (KW) 1.5 2.3 4.5 4.5 7 8.9 11.6 20.4 28.3 42.2 49.5
Speed (r/min) 90 75 60 60 45 45 35 35 30 20 16
Delivery capacity QΦ=0.33 (m³/h) 1.4 4.8 15 15 21.8 39.6 54.3 97 149 174 244
Power Pd 1=10m (KW) 0.9 1.2 1.9 1.9 2.5 3.4 4.3 5.4 8.1 9.5 13.3
Power Pd 1=30m (KW) 1.2 2.2 3.8 3.8 5.4 6.8 9.2 16 24.4 28.6 39.9
Speed (r/min) 75 60 45 45 35 35 30 30 20 16 13
Delivery capacity QΦ=0.33 (m³/h) 1.2 3.8 11 11 17 31.7 46.5 73.0 99.3 139 199
Power Pd 1=10m (KW) 0.75 1.1 1.6 1.6 2.1 3.1 3.7 4.6 5.7 7.7 11
Power Pd 1=30m (KW) 1.1 1.8 3.4 3.4 4.4 5.6 8 14 16.7 23.2 33

Mobile Screw Conveyor Manufacturers

Dahan Mobile Screw Conveyor manufacturer has 15 years of production experience, factory direct sales, cheap price, 2-year warranty, Mobile Screw Conveyor can be designed according to the user's conveying material (granularity), conveying capacity, conveying distance, model, etc., and also supports product specialization Customization, door-to-door delivery, on-site guidance and installation.

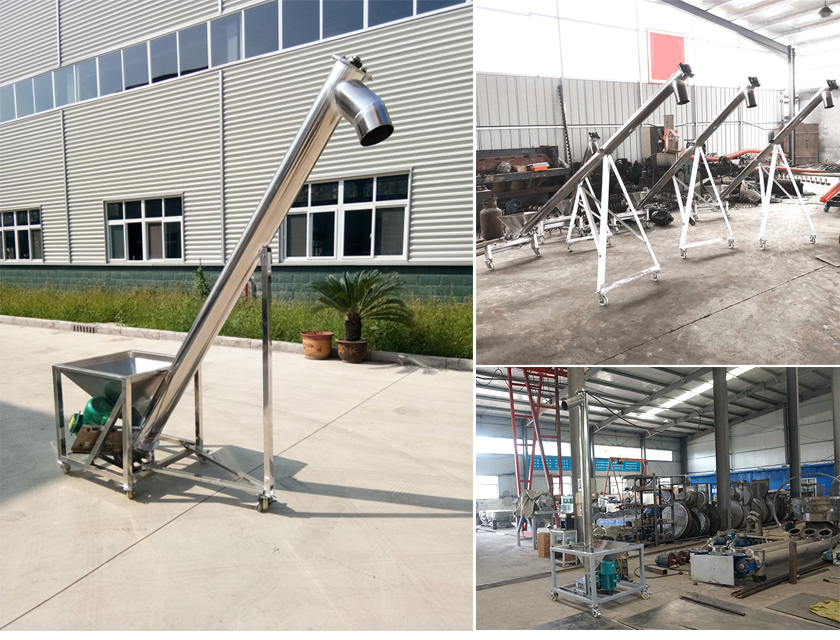

Mobile Screw Conveyor manufacturer's product real shot
