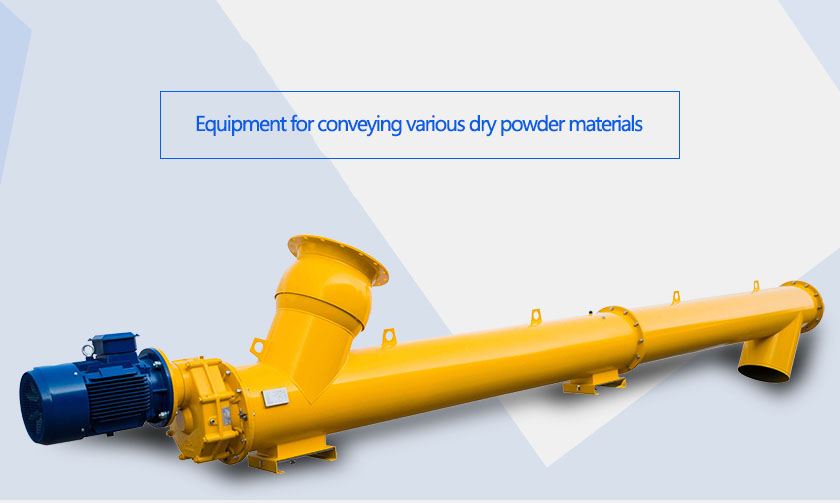

Dry Powder Screw Conveyor is a conveying equipment used for horizontal or inclined conveying of any powdery materials. It adopts a fully sealed structure to avoid dust flying when dry powder materials are conveyed and reduce the environment.
Price: $380.00-$3,000.00/Set Chat Now
Diameter: 100mm-1250mm
Delivery capacity: 142 cubic / hour
Conveying length: 2-70 meters
Material: carbon steel, stainless steel
Applied materials: flour, starch, coal powder, cement powder, rice bran, corn flour, lime powder and other dry powder materials

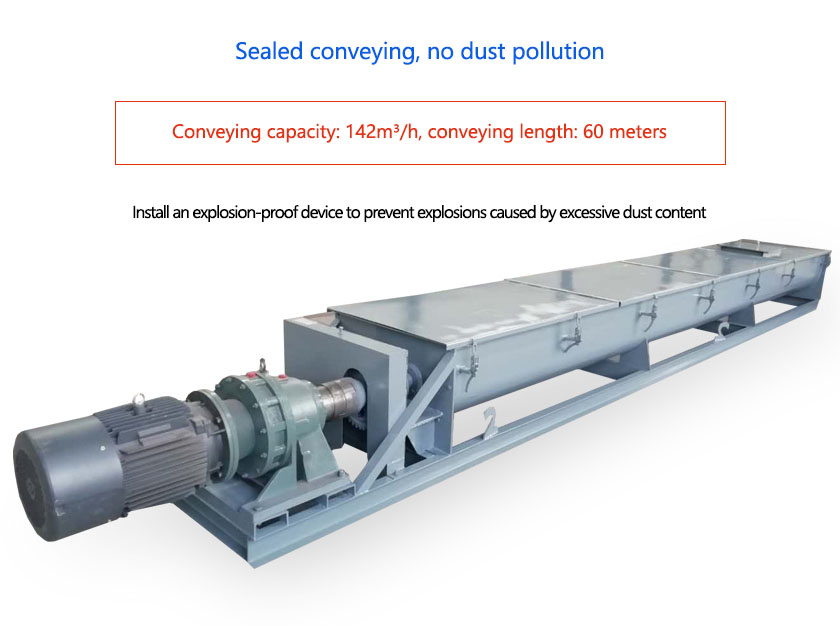

Dry Powder Screw Conveyor is a device for conveying various dry powder materials. The upper and lower cover plates are firmly welded with thicker steel plates to form a closed structure, which can prevent the dry powder from flying during the conveying process and pollute the conveying environment. If explosion-proof measures are adopted on the connecting pipes between the equipment, dust explosion can be avoided. Dahan Dry Powder Screw Conveyor can be arranged horizontally or inclined.

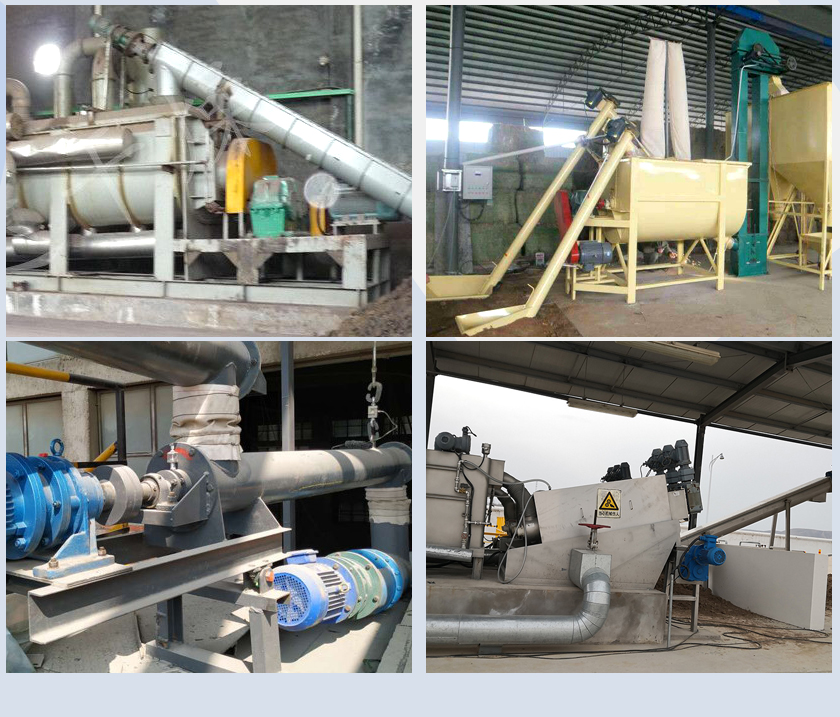

Conveying polyethylene powder
Conveying PVC Powder

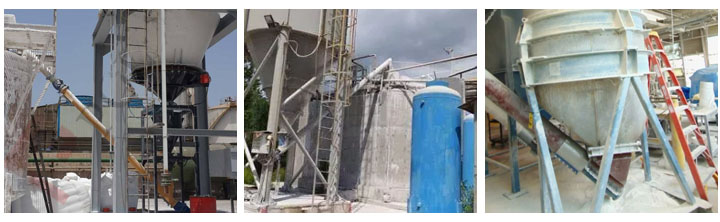

Dry Powder Screw Conveyor is mainly used for horizontal or inclined conveying of various powder materials, such as: flour, coffee powder, alumina dry powder, cement powder, pepper powder, coal powder, mineral powder. Lime powder, etc., can transport materials with a temperature lower than 200°C in one direction at an inclination angle of less than 20°C at an ambient temperature of -20°C to 500°C. It is widely used in food, medicine, chemical industry, building materials, metallurgy, coal, etc. industry.
1. The output of dry powder conveying is large, it can convey 142 cubic meters of dry powder per hour, and the conveying length can reach 70 meters.
2. Equipped with an explosion-proof device, which can avoid the explosion site of the dry powder during the transportation process.
3. The sealing performance is good, the noise of the whole machine is low, and it can also ensure environmental sanitation and dry powder from pollution.
4. There is a cleaning device at the discharge end, and the position of the inlet and outlet is flexible;

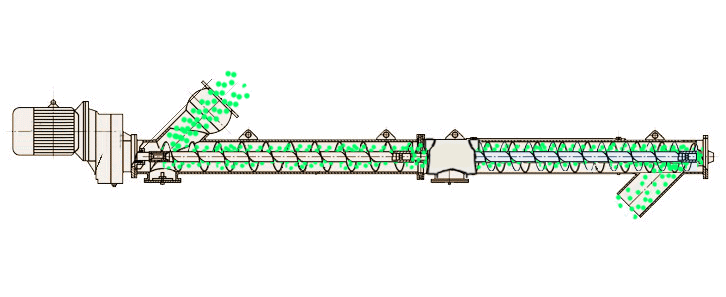

The Dry Powder Screw Conveyor uses the rotating screw to push the conveyed dry powder along the fixed casing to carry out the conveying work.
| LS type | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||||
| Spiral diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed (r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery capacity QΦ=0.33 (m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| 功率Pd 1=10m（KW） | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| Power Pd 1=30m (KW) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Speed (r/min) | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| Power Pd 1=10m (KW) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| Power Pd 1=30m (KW) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| Speed (r/min) | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| Power Pd 1=10m (KW) | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| Power Pd 1=30m (KW) | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| Speed (r/min) | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| Power Pd 1=10m (KW) | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| Power Pd 1=30m (KW) | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |
