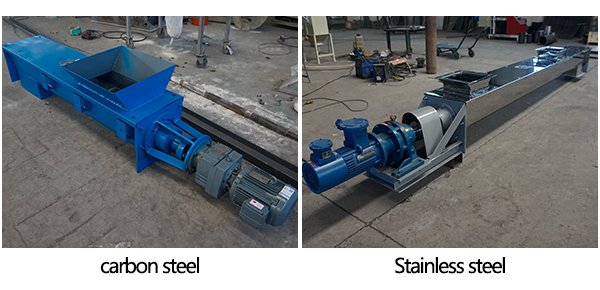

Auger Screw Conveyor is divided into carbon steel, 304 stainless steel, 316 stainless steel and other materials. Stainless steel materials are specially used to transport corrosive, perishable, and high-grade materials. The price of stainless steel Auger Screw Conveyor is 1~ of carbon steel 2 times.
Different models of Auger Screw Conveyor correspond to different outputs. Let me show you the output correspondence table of Auger Screw Conveyor models:
| Specifications | Spiral diameter(mm) | Pitch (mm) | Speed(r/min) | Delivery capacity(m³/h) | Speed(r/min) | Delivery capacity(m³/h) | Speed(r/min) | Delivery capacity(m³/h) | Speed(r/min) | Delivery capacity(m³/h) | |
| small | 100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 |
| 125 | 125 | 125 | 125 | 3.8 | 100 | 3.0 | 80 | 2.4 | 63 | 1.9 | |
| 160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 | |
| 200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 | |
| medium | 250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 |
| 315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 | |
| 400 | 400 | 355 | 71 | 62.5 | 56 | 49.3 | 45 | 38.6 | 36 | 31.7 | |
| large | 500 | 500 | 400 | 63 | 97.7 | 50 | 77.6 | 40 | 62.0 | 32 | 49.6 |
| 630 | 630 | 450 | 50 | 138.5 | 40 | 110.8 | 32 | 88.6 | 25 | 69.3 | |
| 800 | 800 | 500 | 40 | 198.5 | 32 | 158.8 | 25 | 124.1 | 20 | 99.3 | |
The larger the model, the more expensive the Auger Screw Conveyor machine is. In the case of the same material and design, the price of Auger Screw Conveyor will increase by $210.00-$290.00 for each model difference.

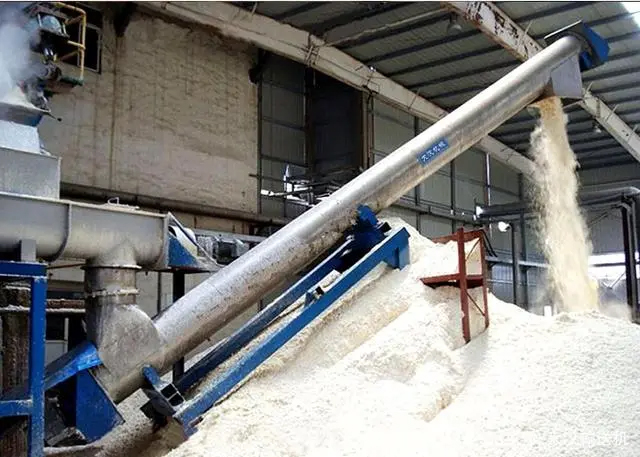

The Auger Screw Conveyor can be used for horizontal, inclined, and vertical conveying, and there is no effect within 15°. For every 5° increase, the conveying efficiency will decrease by 15%, which requires thicker conveyor pipe wall thickness and greater motor power.
Generally, if the conveying length of Auger Screw Conveyor exceeds 15 meters, the pipe diameter needs to be increased. The price of the auger screw conveyor will increase by $40.00-$290.00 for every additional meter.

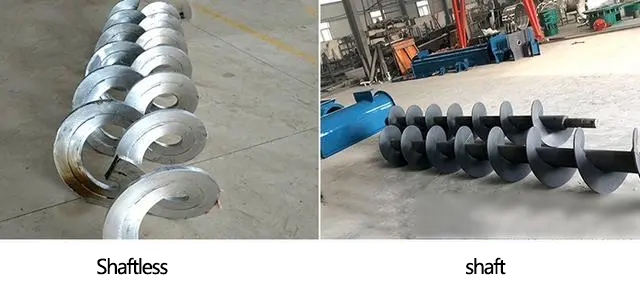

In many cases, in order to ensure uniform feeding without causing blockage and reduce the instantaneous pressure of the auger screw conveyor, special treatment will be done on the feed inlet or the blade, such as a shaft or shaftless design, which is designed separately. At this time, the whole The price of the machine will be higher than that of the general screw conveyor.
The above is a specific description of the price of the auger screw conveyor. If you want to know more, please consult me!
