Double Screw Conveyor Model

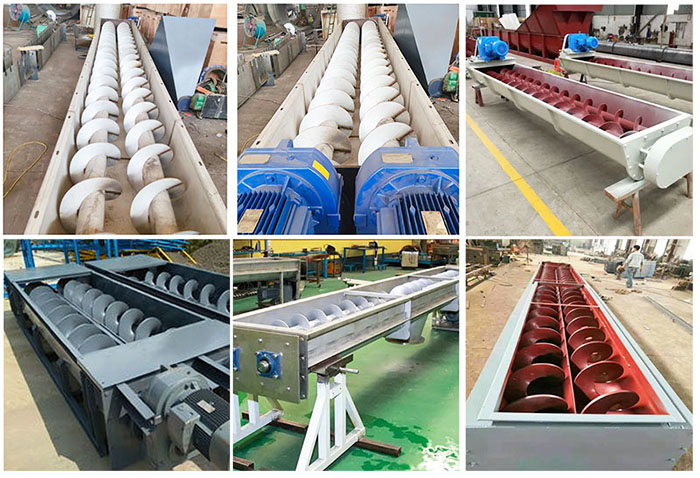

Double Screw Conveyor is a commonly used conveying equipment, mainly used for conveying powdery, granular and small block materials. It is composed of two helical shafts, which can be rotated separately. During the conveying process, the material is subjected to the double helix effect facing each other, which is not easy to accumulate and get stuck, and can realize smooth and fast conveying.

At present, the common Double Screw Conveyor models on the market mainly include GX200, GX250, GX300, GX350, GX400, GX500, GX600, GX800, GX1000, etc. The main technical parameters of each model are as follows:

Model Maximum conveying capacity (m³/h) Spiral diameter (mm) Spiral speed (r/min) Conveying length (m) Motor power (KW)

GX200 8-10 200 100 3-12 1.1-2.2

GX250 10-20 250 90 3-15 1.5-3

GX300 20-25 300 80 3-20 2.2-4

GX350 25-35 350 70 3-25 3-5.5

GX400 35-45 400 60 3-30 4-7.5

GX500 50-60 500 50 3-35 5.5-11

GX600 80-100 600 45 3-40 7.5-15

GX800 120-150 800 35 3-45 15-30

GX1000 200-250 1000 30 3-50 30-45

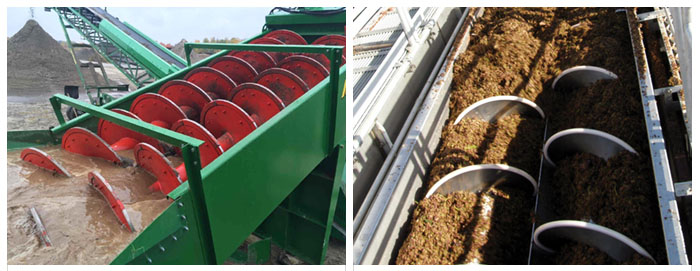

Different models are suitable for different application industries and materials. Under normal circumstances,

GX200 and GX250 are suitable for food, medicine, chemical industry and other industries, for conveying small granular materials, such as powder, millet, small tablets, etc.;

GX300 and GX350 are suitable for cement, building materials, metallurgy and other industries, for conveying medium Granular materials, such as cement, slag, gravel, etc.;

GX400 and GX500 are suitable for chemical, food, light industry and other industries, used to transport medium and large granular materials, such as granular additives, quartz sand, salt, etc.;

GX600 and above The model is suitable for heavy industry fields such as electric power, chemical fertilizer, and metallurgy, and is used to transport large particle materials, such as coal, ore, limestone, etc.

In short, the Double Screw Conveyor has the advantages of simple structure, stable operation, large conveying capacity, and strong adaptability, and is widely used in many industries. When selecting a specific model, it is necessary to comprehensively consider according to the nature of the material and the conveying requirements, and choose the most suitable model to obtain the best conveying effect.
