Your location is: Home > screw conveyor > Sand Suction Machine

Sand Suction Machine

Sand Suction Machine is also called sand pumping machine, referred to as sand suction machine, which is mainly used for loading dry river sand along the river and for sand suction in sand stockyards.

Price:$100.00-$1500.00/Set Chat Now

Output: 6-20t/h

Length: 3-12m

Horizontal conveying distance: 5-30m

Lifting height: 8 meters

Voltage: 220-380v

Material: dry sand, river sand, fine sand, silt and other loose sand

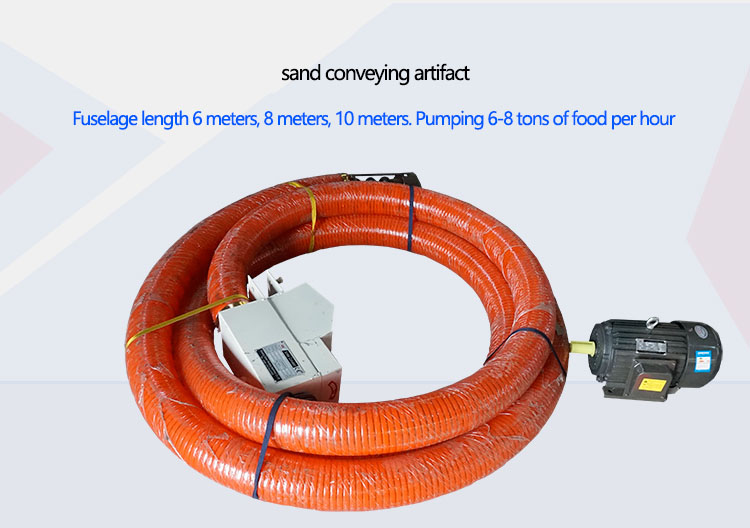

Sand Suction Machine

What is Sand Suction Machine?

Sand Suction Machine is also called sand pumping machine, referred to as sand suction machine. It is a sand suction artifact for dry river sand loading and sand suction in sand yards. It can transport dry sand, river sand, fine sand, and sediment horizontally, vertically, and obliquely. Various types of sand such as cement. The horizontal conveying distance can reach 4-12 meters, 6-8 tons per hour. According to the conveying output, it can be divided into: 2 tons per hour, 6-7 tons per hour, 8-10 tons per hour, and 18-20 tons per hour. You can choose the corresponding model according to the output.

Introduction of Sand Suction Machine

According to the hose diameter: 50mm, 100mm, 120mm, 159mm

According to the length of the whole machine: 3 meters, 6 meters, 8 meters, 10 meters, 12 meters, 15 meters (3-15 meters can be produced)

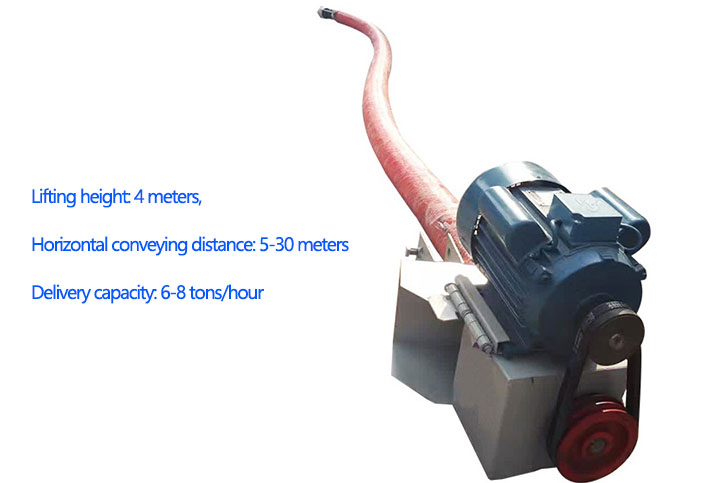

Sand Suction Machine

Sand Suction Machine Video

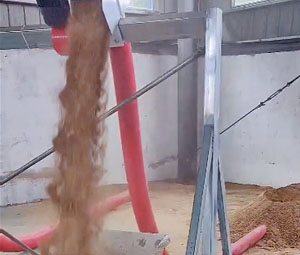

Sand Conveying

sand conveying up the stairs

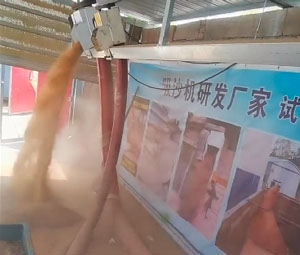

Conveying dry sand

Sand Suction Machine Application

Sand Suction Machine can be used to suck various types of sand, such as: dry sand, river sand, yellow sand, fine sand, sand mixed with cement, dry cement, etc. It can also be used for wheat. Corn, rice, rapeseed, peanut, sunflower seed, sawdust, plastic granules and other materials with good fluidity. Wheat and corn can reach 6-8 tons per hour. About 5 tons of rice, rice husk, wood flour, and sawdust can also be used, subject to the actual material.

Suction gravel (residue in cement)

Suction gravel (residue in cement)

Conveying length: 10 meters

Delivery capacity: 15 tons/hour

Suction of sand and cement mixture

Suction of sand and cement mixture

Conveying length: 20 meters

Delivery capacity: 30 tons/hour

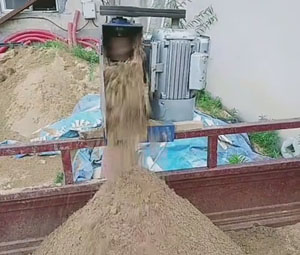

dry sand

dry sand

Conveying length: 15 meters

Delivery capacity: 18 tons/hour

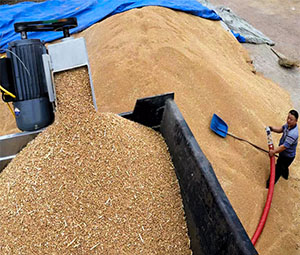

suck barley

suck barley

Conveying length: 2.5-3 meters

Delivery capacity: 3-5 tons/hour

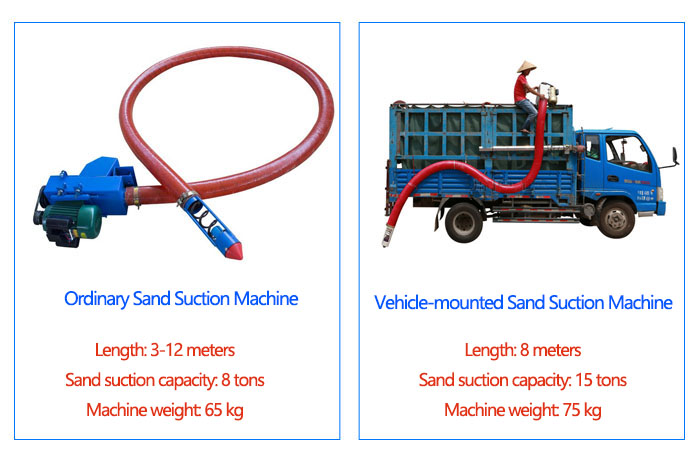

What are the Types of Sand Suction Machine?

Ordinary Sand Suction Machine: The length of the machine body is 3-12 meters, and it can suck sand and sand 8 tons per hour. The weight of the machine is about 60 kg. The power supply of the machine is 220V single-phase or 380V three-phase.

Vehicle-mounted Sand Suction Machine: The card is used on the vehicle, it can be bent and moved, light in weight, and easy to carry. The body length is 8 meters, the sand suction capacity can reach 15 tons per hour, and the weight of the machine is 75 kg, which is suitable for places that need sand loading.

Types of Sand Suction Machine

What are the Advantages of Sand Suction Machine?

1. The length of the Sand Suction Machine is 3-15 meters optional, the sand suction is 6-15 tons per hour, and the weight of the machine is 60-75 kg.

2. There are various operation modes, including single-suction operation mode, single-pressure delivery operation mode, and suction-pressure mixed operation mode, which can be selected according to different customers and different operation requirements.

3. Special suction nozzle for local deep sand suction. It can go deep into the sand below 6 meters to absorb sand.

4. High air pressure, long conveying distance, high lift, small volume, low noise and low energy consumption

5. The machine is small and flexible, quick and convenient to assemble, compact in structure and complete in function. The design of the whole machine fully considers the needs of the user group.

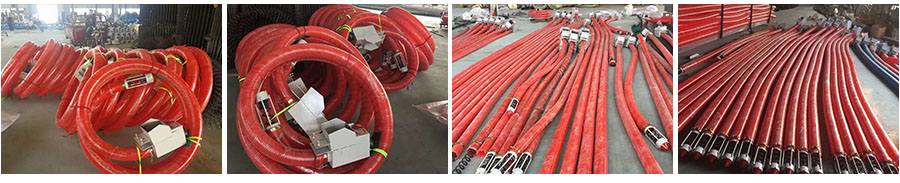

features

How does the Sand Suction Machine work?

Sand Suction Machine uses rotating screw to move the conveyor material into the fixed housing, the bearings of the head and tail move to the housing, the hanger bearing adopts the sleeve bearing, and is equipped with a dust-proof sealing device, and the bearing bush is usually made of powder metallurgy , Felt bushing is used to convey concrete, and the hanger shaft and screw shaft are linked by sliders.

Sand Suction Machine Technical Parameters

host type Length (m) Tube Diameter (inches) Efficiency (hour/ton) Motor power (kW) Lifting height (m) Machine weight (kg)
220V-380V single power 3 meters 3.5 5-6 2.2 2 60
4 meters 5-6 3.0 2.5 64
5 meters 5-6 3.0 3.0 67
6 meters 5-6 3.0 3.5 70
7 meters 5-6 3.0 3.5 73
8 meters 5-6 3.0 enlarged motor 3.5 82
9 meters 5-6 3.0 enlarged motor 3.0 85
10 meters 4-5 3.0 enlarged motor 3.0 88
11 meters 4-5 3.0 enlarged motor 3.0 92
12 meters 4-5 3.0 enlarged motor 3.0 95
220V-380V single power 3 meters 4 7.8 3.0 2.0 65
4 meters 3.0 2.5 68
5 meters 3.0 3.5 71
6 meters 3.0 3.5 75
7 meters 3.0 enlarged motor 3.0 80
8 meters 3.0 enlarged motor 3.5 83
