Auger Grain Suction Machine

What is Auger Grain Suction Machine?

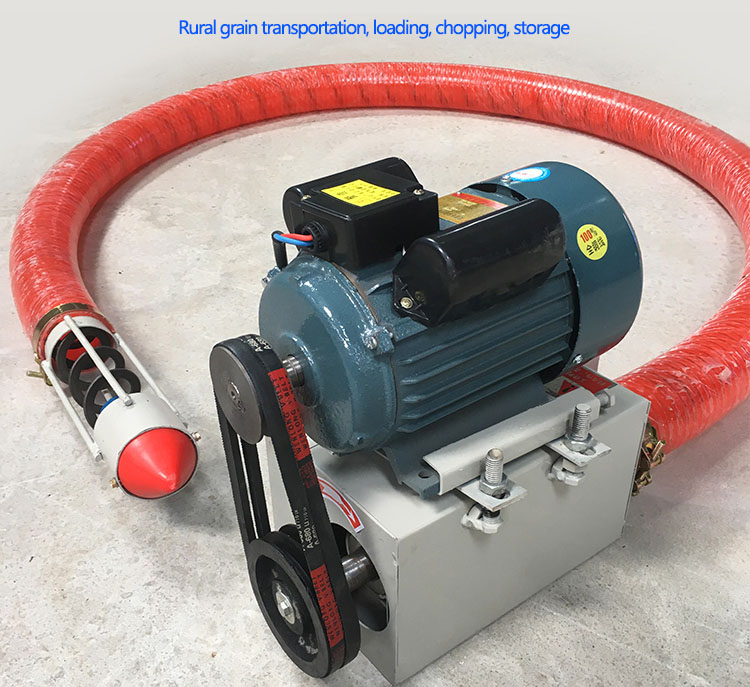

Auger Grain Suction Machine is a small equipment specially designed for grain transportation, loading, chopping and storage in rural areas. It has the characteristics of small size, light weight, easy to move, high grain absorption efficiency, low breakage rate, and widely used in Chagan Lake. It is very suitable for individual farmers, specialized grain households and agricultural cooperatives.

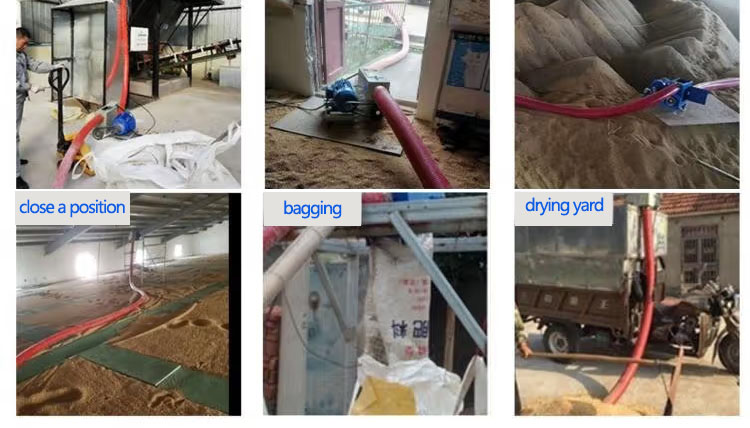

Auger Grain Suction Machine Application

Auger Grain Suction Machine can be used in the conveying, mixing and mixing of coarse powder, powder and granular materials with good fluidity in grain processing, chemical industry, light industry and other industries. The specific application is as follows:

1. Grain processing industry: It can be used for the transportation, processing and storage of grains, corn, rice, wheat and other grains.

2. Chemical industry: It can be used for conveying, mixing, drying and other chemical raw materials, such as plastic powder, iron oxide, polymer materials, etc.

3. Light industry: It can be used for conveying and mixing raw materials in papermaking, ceramics, glass and other industries, such as pulp and clay.

Auger Grain Suction Machine Video

What are the Advantages of Auger Grain Suction Machine?

1. The length of the fuselage is 8 meters, the pumping grain is 10-12 tons per hour, and the weight of the machine is 75 kg, which is suitable for pumping grain in the countryside.

2. It can be used to suck grain, and also can be used to suck granular fertilizer, plastic, etc.

3. Reasonable design of coil spring structure, low noise and high productivity.

4. The whole machine is light in weight, small in floor space, and convenient to move and install.

How does the Auger Grain Suction Machine work?

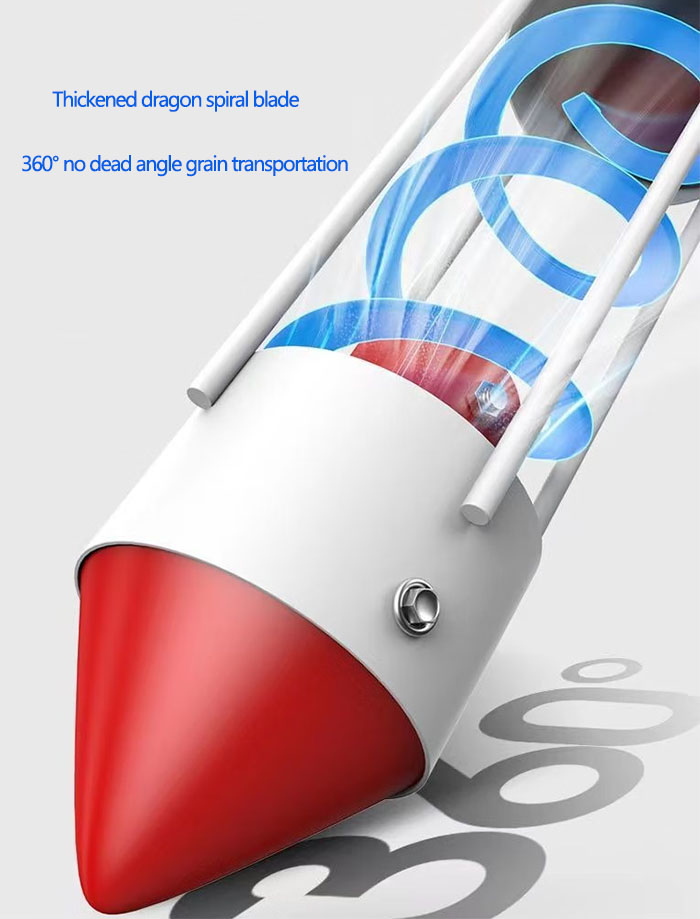

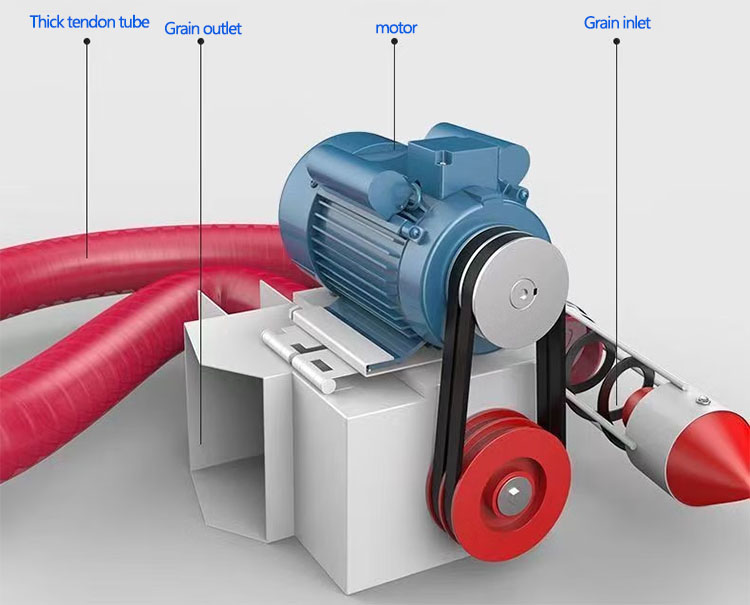

Auger Grain Suction Machine is mainly composed of feed inlet (faucet), suction pipe, shaftless screw, discharge outlet (chassis), machine base, motor (gasoline and diesel engine, worm gear reducer) and other parts. The motor shaft and the helical spring are connected by a screw. When the material enters the suction pipe evenly and appropriately from the feeding port, the motor drives the helical spring to rotate, and the grain at the collecting port will rise along the helical angle of the spring under the action of the rotating spring. , when it reaches the discharge port, it will automatically unload the grain due to the action of gravity.

Auger Grain Suction Machine Technical Parameters

Model No.	Length (Meters)	Pipe diameter	Loading Capacity (t/h)	Motor phase-power (kw)	Installation	Structure	Conveying height
RLS100	4 meter	100mm	5—8	Single phase-3kw	Vehicle mounted	Steel screw blade inside	Depends on case
	5 meter	100mm	5—8	Single phase-3kw	Vehicle mounted	Steel screw blade inside
	6 meter	100mm	5—8	Single phase-3kw	Vehicle mounted	Steel screw blade inside
	8 meter	100mm	5—8	Single phase-3kw	Vehicle mounted	Steel screw blade inside
(Customized)
RLS120	4 meter	120mm	10—15	Three phase-4KW	Vehicle mounted	Steel screw blade inside	Depends on case
	5 meter	120mm	10—15	Three phase-4KW	Vehicle mounted	Steel screw blade inside
	6 meter	120mm	10—15	Three phase-4KW	Vehicle mounted	Steel screw blade inside
	8 meter	120mm	10—15	Three phase-4KW	Vehicle mounted	Steel screw blade inside
(Customized)
RLS-160	4 meter	160mm	10—15	Three phase-5KW	Vehicle mounted	Steel screw blade inside	Depends on case
	5 meter
	6 meter
	8 meter
(Customized)
