Grain Suction Machine

What is Grain Suction Machine?

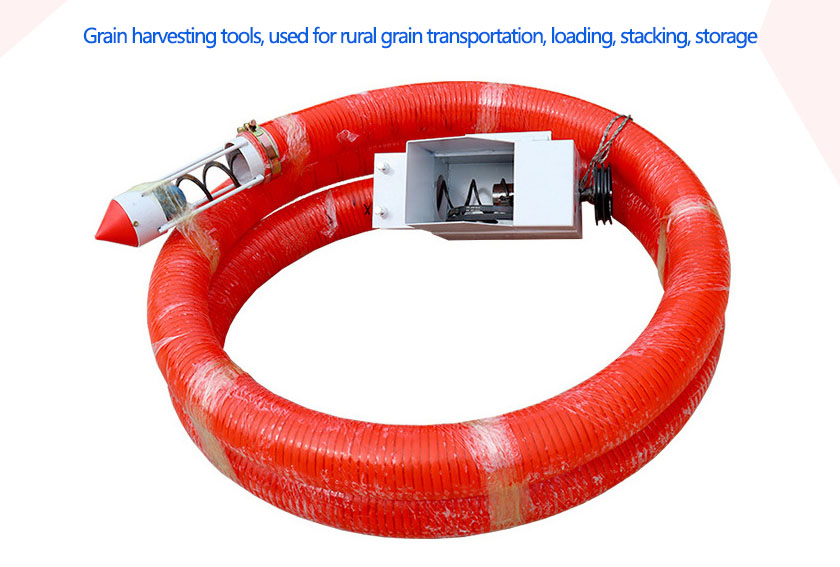

Grain Suction Machine is a tool for sucking and pumping grain. It is a small-scale equipment specially designed for rural grain transportation, loading, stacking, and storage. It can load and unload dust materials and granular materials. , Clearance and transshipment work, the delivery capacity is 5 tons-50 tons per hour, large ones can move freely, work in multiple locations, saving manpower and material resources.

Grain Suction Machine Videos

Grain Suction Machine Grain Particle Collection

wheat collection

corn loading

Rice Milling Conveyor site

paddy rice loading/bagging

Powder Conveying

lime powder conveying (20 tons per hour)

Sand Conveying

Conveying Coal Powder

Conveying Wood Powder

Grain Suction Machine Application

Grain Suction Machine is suitable for individual farmers, specialized grain households and agricultural cooperatives. It can also be used in grain processing, feed processing, beer brewing and other industries such as farms, feed factories, food factories, plastic factories, farms, docks, stations, large grain depots, etc. It can convey wheat, soybean, corn, rice, sorghum, plastic, rice and other materials horizontally and obliquely.

Agricultural field: commonly used to collect, transport and process agricultural products such as grains, beans, seeds, etc.

Food processing industry: used to transport and process granular food raw materials, such as grains, rice flour, beans, etc.

Feed production: During the feed production process, grain suckers can be used to collect and transport feed raw materials, such as corn, soybean meal, etc., for mixing and processing.

Warehousing and logistics: Grain suckers are also commonly used in the field of warehousing and logistics to transport and load granular materials, helping to improve the efficiency of warehousing operations.

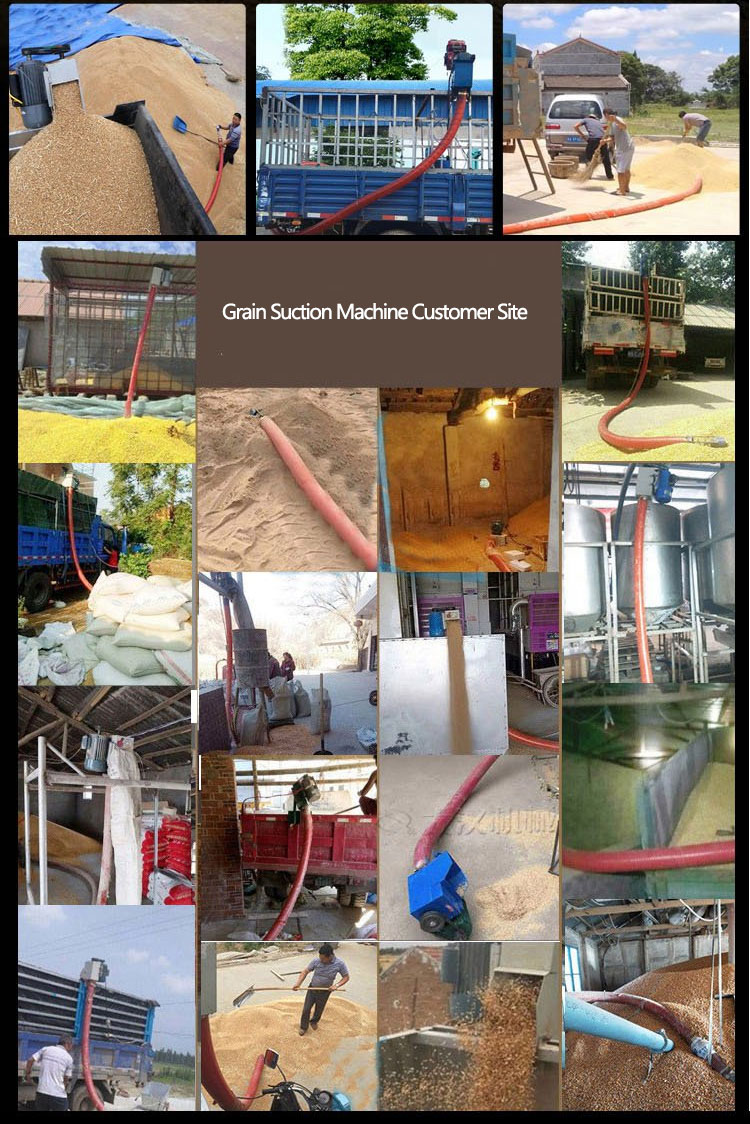

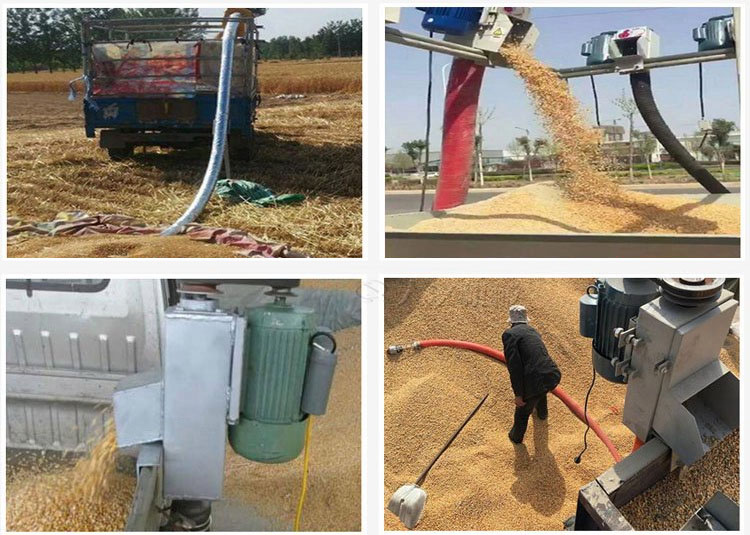

Grain Suction Machine Customer Site

Conveying Bean Cake

Delivery capacity: 1.5 tons/hour

Conveying length: 4 meters

Recommendation: 100mm grain suction machine

Conveying wheat

Delivery capacity: 5 tons/hour

Conveying length: 12 meters

Recommendation: 120mm grain suction machine

Conveying Corn

Delivery capacity: 7 tons/hour

Conveying length: 12 meters

Recommendation: 150mm grain suction machine

Conveying Paddy Rice

Delivery capacity: 3-5 tons/hour

Conveying length: 3 meters

Recommendation: 140mm grain suction machine

Conveying chemical flakes: length: 24 meters, conveying capacity: 28m3 / hr, recommendation: shaftless hose grain suction machine

Conveying sand: length: 6 meters, conveying capacity: 2-3 tons/h, recommendation: 150mm grain suction machine

Conveying rice: length: 13 meters, conveying capacity: 10 tons/h, recommended: 160 diameter grain suction machine

Conveying soybeans: length: 4-5 meters, conveying capacity: 5 tons/h, 5-inch grain suction machine

What are the Types of Grain Suction Machine?

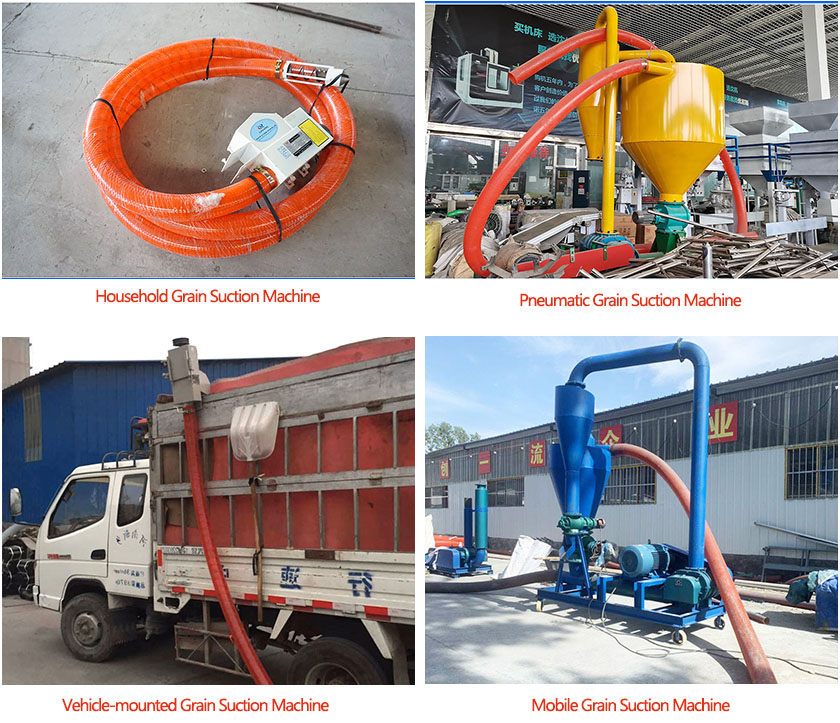

Grain Suction Machine is divided into household type, vehicle type, mobile type, pneumatic type, electric motor type and diesel type.

Household type: The diameter of the household Grain Suction Machine is 100mm 120mm 160mm, commonly used 6 meters, 8 meters, 220v voltage, single-phase asynchronous motor, can be used for grain collection in the countryside, grain dumping, grain loading, etc.

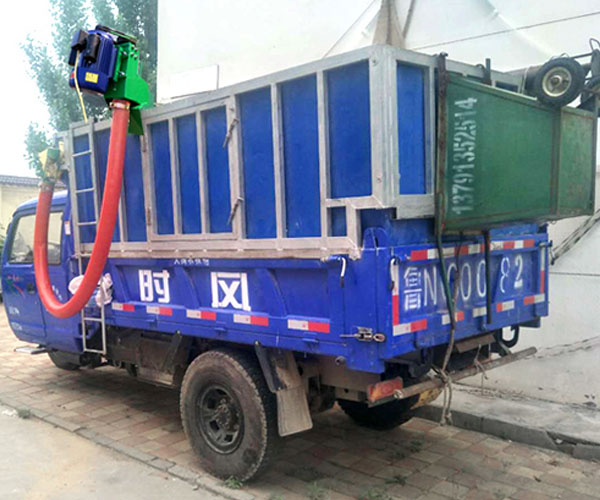

Vehicle-mounted: It can be directly stuck on the heightened wall of the truck box, can be bent and moved, and is easy to carry. It is a convenient equipment for loading, unloading, leaving and storing various food crops.

Mobile: add a mobile bracket at the bottom, which can be moved freely according to the site of use, without being restricted by the site

Pneumatic type: large air pressure, separate suction, pressure, or mixed suction and pressure, can be air-dried and dust removed, the air pressure in the pipeline is relatively high, not suitable for fragile and fragile materials

Motor type: It is started by a vibration motor to drive the grain suction machine to convey materials.

Diesel type: suitable for use in places without electricity

Features of Grain Suction Machine

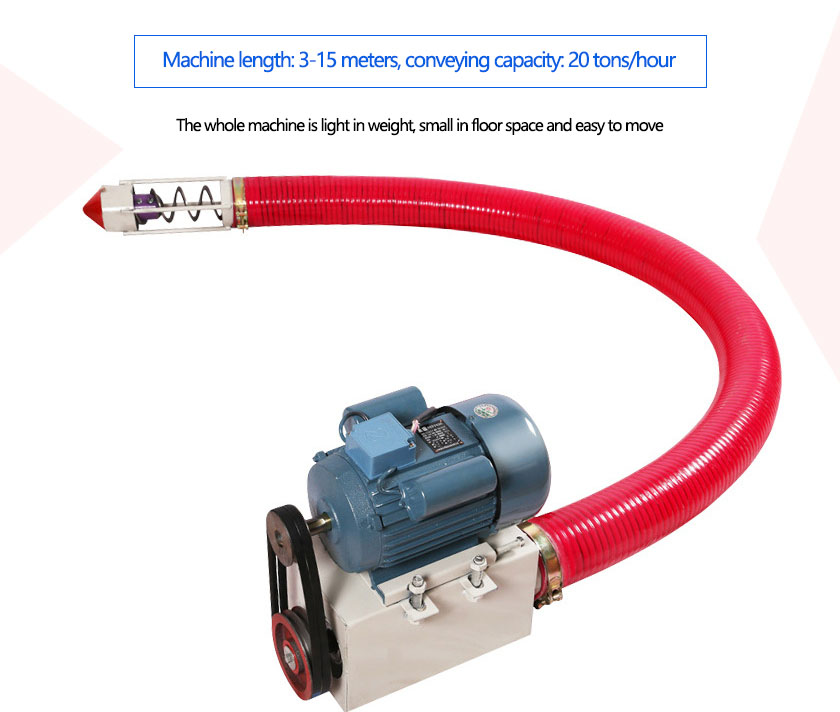

High conveying efficiency: According to the diameter of the hose, it can be divided into: 50mm, 100mm, 120mm, 159mm, and the length of the whole machine can be divided into: 4 meters, 6 meters, 8 meters, 10 meters, 12 meters, 15 meters (can produce 3-15 meters), each Hourly processing output can reach 2-20 tons.

Wide range of applications: One machine is multi-purpose, not only can suck grain, but also can suck granular fertilizer, feed, chemical products and other non-corrosive granular materials.

Can be used in combination: It can be run alone or combined with other equipment to form a conveying system to meet different requirements.

Good sealing: The entire conveying process is completely airtight and less affected by climate and environmental conditions, which not only improves the working conditions, but also prevents the conveyed materials from absorbing moisture, polluting or mixing with other impurities, so as to ensure the quality of conveyed materials.

Working Principle of Grain Suction Machine

When the Grain Suction Machine is working, the motor shaft and the coil spring are connected by a screw. When the motor is started, the motor drives the coil spring to rotate, and the grain at the collection port will be driven by the rotating spring along the direction of the helix angle of the spring. When it rises and reaches the discharge port, it will automatically unload the grain due to the action of gravity.

Grain Suction Machine Technical Parameters

Diameter	Length	Voltage	Power	Capacity	Weight
100mm	3m	220V	3KW	5-6T	43kg
100mm	4m	220V	3KW	5-6T	47kg
100mm	5m	220V	3KW	5-6T	51kg
100mm	6m	220V	3KW	5-6T	55kg
100mm	7m	220V	3KW	5-6T	62kg
100mm	8m	220V	3KW	5-6T	66kg
100mm	9m	220V	3KW	5-6T	70kg
100mm	10m	220V	4KW	5-6T	74kg
100mm	11m	380V	4KW	5-6T	82kg
100mm	12m	380V	4KW	5-6T	86kg
120mm	3m	220V	3KW	7-8T	48kg
120mm	4m	220V	3KW	7-8T	52kg
120mm	5m	220V	3KW	7-8T	56kg
120mm	6m	220V	3KW	7-8T	60kg
120mm	7m	220V	4KW	7-8T	60kg
120mm	8m	220V	4KW	7-8T	71kg
120mm	9m	220V	4KW	7-8T	75kg
120mm	10m	220V	4KW	7-8T	79kg
120mm	11m	380V	4KW	7-8T	89kg
120mm	12m	220V	4KW	7-8T	93kg
100mm	20m	380V	7.5KW	5-6T	150kg
100mm	25m	380V	7.5KW	5-6T	170kg
120mm	20m	380V	7.5KW	6-7T	180kg
120mm	22m	380V	7.5KW	6-7T	200kg

Grain Suction Machine Structure

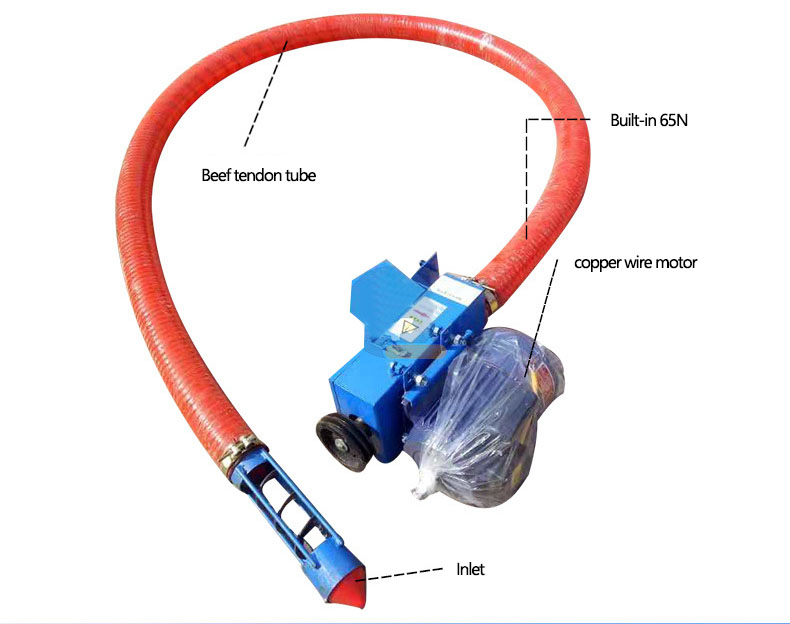

Grain Suction Machine is mainly composed of feed inlet, beef tendon tube, shaftless screw, discharge outlet, machine base, motor and so on.

Thickened beef tendon tube: The grain suction machine adopts thickened beef tendon tube, which has the advantages of cold resistance, pressure resistance, wear resistance, etc., and can be customized for a long time.

Fully open and enlarged foreign matter bin: In the process of sucking food, in case foreign matter gets stuck on the screw, the foreign matter can be taken out by opening the screw, with high stability.

Spiral: The soft spiral is made of manganese steel, which has high hardness, good elasticity and wear resistance.

Grain inlet: There is no dead angle for grain feeding, and it is more convenient to transport grain.

Grain Suction Machine Manufacturers For Sale

Dahan Grain Conveyor Manufacturer, we are committed to providing customers with high-quality and efficient grain convection solutions. We have many years of industry experience and technical accumulation, and we are constantly innovating technology and optimizing products to meet the needs of customers in different fields. Our grain convection products cover multiple fields, including agriculture, food processing, feed production, warehousing logistics and industrial fields. Whether it is a small farm or a large factory, we can provide suitable grain convection solutions to help customers improve production efficiency and save labor costs. If you are interested in our grain convection products or have any needs, please feel free to contact us. We look forward to cooperating with you, developing together, and providing you with high-quality grain convection equipment and services.
