It can be used for conveying powder, granules and small block materials in a small range/small inclination angle, and can be fed/discharged at multiple points. The machine cover is removable, which is convenient for observing the material conveying situation
Price: $400.00-$3,500.00/Set Chat Now
Inclination angle: 10°-45°
Delivery capacity: 9-134.2m³/h
Conveying length: 10-20 meters
Weight: 726-7090kg
Selection type: with shaft and without shaft
Select material: carbon steel stainless steel

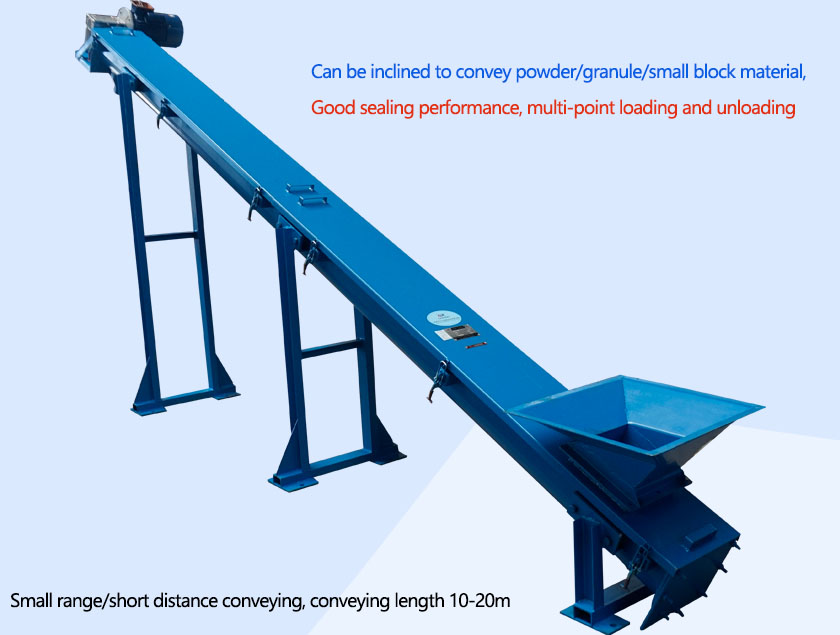

The U-Shaped Inclined Screw Conveyor trough has a "U"-shaped cross section, which can be inclined to transport powder, granules, and small lump materials, with good sealing performance and multi-point loading and unloading; the main features of U-Shaped Inclined Screw Conveyor: the machine cover can be Disassembly at will is convenient for observation and can timely discover and solve problems in transportation. Disadvantages: small-scale/short-distance transportation, transportation length: 10-20m (in the case of a single axis), and the inclination angle does not exceed 25°.

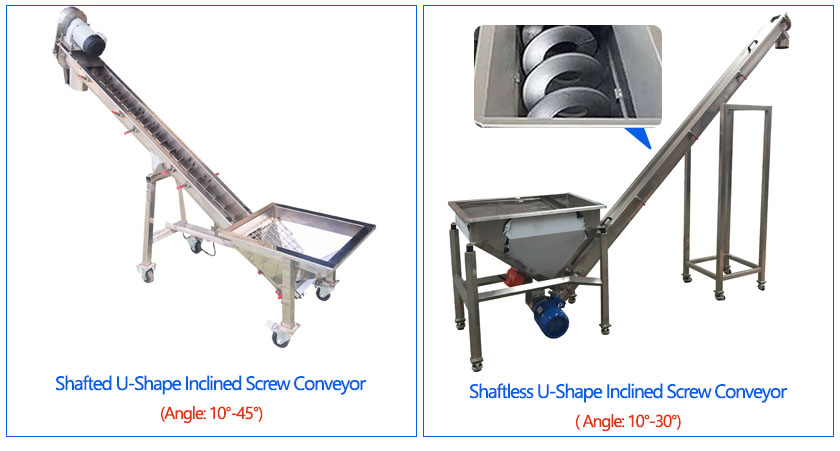

Shafted U-Shape Inclined Screw Conveyor Angle: 10°-45°, refers to the angle between the inclination angle of the spiral blade and the horizontal plane. The larger the angle, the greater the conveying capacity, but the greater the damage to the material.
Shaftless U-Shape Inclined Screw Conveyor Angle: 10°-30°, which refers to the angle between the inclination angle of the entire conveyor and the horizontal plane. Because there is no central axis, it is smaller than the Shafted U-Shape Inclined Screw Conveyor , light weight, easy installation and maintenance. But without the support of the central shaft, the conveying capacity and stability are relatively low.

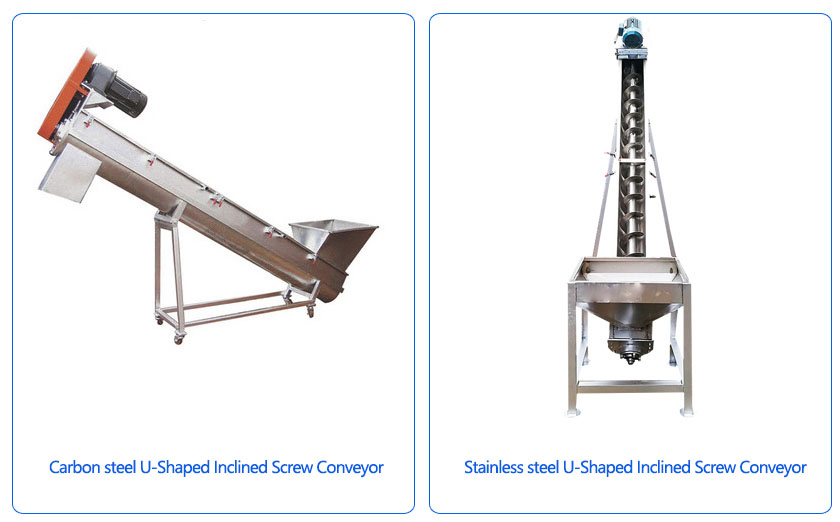

Carbon Steel U-Shape Inclined Screw Conveyor: Made of high-quality carbon steel, it has high strength and wear resistance. It is suitable for use when the material conveying volume is large, the weight is heavy, and the material requirements are not high; it can be used for cement, coal, stone and other abrasive materials in chemical, metallurgy, building materials and other industries.
Stainless steel U-Shape Inclined Screw Conveyor: It is made of stainless steel, so it has better corrosion resistance and hygiene. It is suitable for use in humid, acidic, alkaline, food industry and other environments; it can be used in food, medicine, food and other fields, and can meet high-standard hygienic requirements.

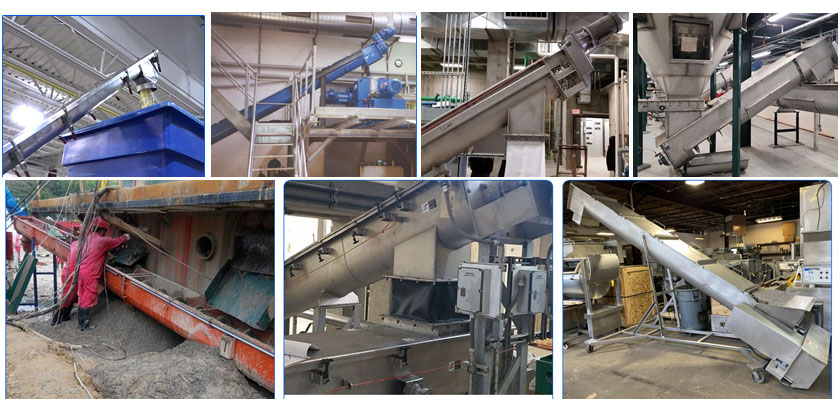

Inclined 40° to convey flour
Inclined at 30° to convey flour
Inclined 20° to convey sludge
Inclined 45° to convey wood chips
U-Shaped Inclined Screw Conveyor can be used to convey various bulk materials in a small range, and is commonly used in cement, coal powder, carbon black, soda ash flour, grain, pulp, sludge, biomass, Transportation of garbage and other materials.
1. Good sealing performance, environmental protection and hygiene
Both the head and tail bearings are installed outside the casing, and sliding bearings are used in the middle. The dust-proof sealing device is designed to avoid dust when the materials are conveyed, and will not pollute the environment too much, which is conducive to the subsequent hygienic cleaning; secondly, U-Shaped Inclined Screw Conveyor generally has a detachable box cover, which is convenient for later maintenance and cleaning.
2. Stable delivery
It is suitable for small-scale transportation, stable transportation, and can play a good role when the transportation site is limited. U-Shaped Inclined Screw Conveyor can convey 134m of material per hour. U-shaped screw conveyor has single-shaft drive screw and double-shaft drive screw.
3. Multi-point loading and unloading
U-Shaped Inclined Screw Conveyor can load and unload at any point on its conveying line, and it is convenient to load and unload in the middle. Compared with other screw conveyors that cannot load and unload materials at any time, it has obvious advantages and can meet the needs of customers.

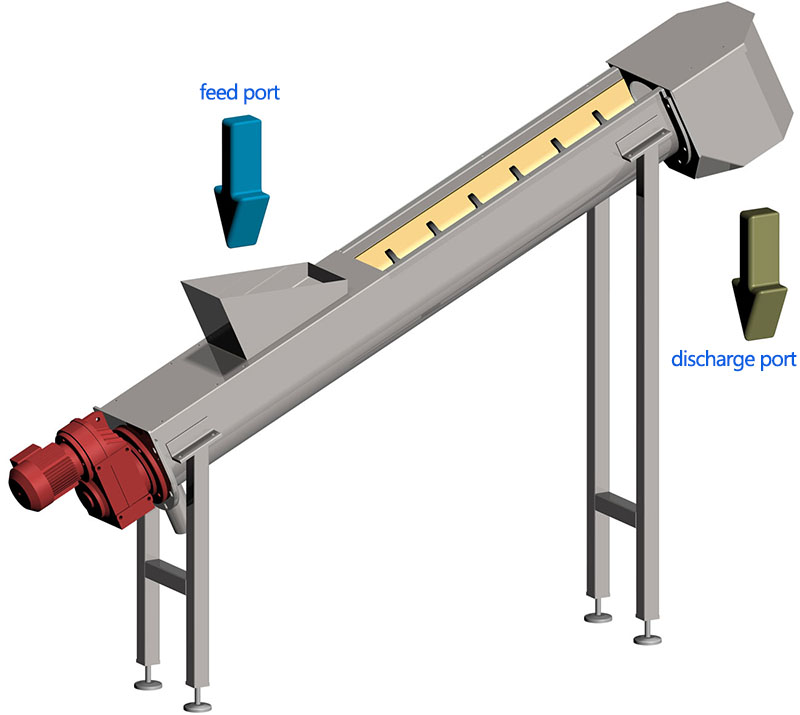

The material enters the U-Shaped Inclined Screw Conveyor conveying trough from the feed port, and the motor and reducer drive the bearing and blades to rotate. The blades push the material to move upwards in the U-shaped trough until it is discharged from the discharge port.
| Specification | Main technical performance | drive unit | drive unit | Weight (kg) | |||
| diameter | length (m) | Output (cement) t/h | speed(min) | reducer | electric motor | ||
| model | speed ratio | Power(kw) | |||||
| U 200 | -10 | 9 | 60 | ZQ250 | 23.34 | 1.1 | 726 |
| U 200 | -20 | 9 | 60 | ZQ250 | 23.34 | 1.5 | 1258 |
| U 250 | -10 | 15.6 | 60 | ZQ250 | 23.34 | 2.2 | 960 |
| U 250 | -20 | 15.6 | 60 | ZQ250 | 23.34 | 3 | 1750 |
| U 300 | -10 | 21.2 | 60 | ZQ350 | 23.34 | 3 | 1373 |
| U 300 | -20 | 21.2 | 60 | ZQ350 | 23.34 | 4 | 2346 |
| U 400 | -10 | 51 | 60 | ZQ400 | 23.34 | 5.5 | 1911 |
| U 400 | -20 | 51 | 60 | ZQ500 | 23.34 | 11 | 2049 |
| U 500 | -10 | 87.5 | 60 | ZQ400 | 23.34 | 7.5 | 2381 |
| U 500 | -20 | 87.5 | 60 | ZQ650 | 23.34 | 18.5 | 5389 |
| U 600 | -10 | 134.2 | 45 | ZQ750 | 23.34 | 22 | 3880 |
| U 600 | -10 | 134.2 | 45 | ZQ850 | 23.34 | 55 | 7090 |

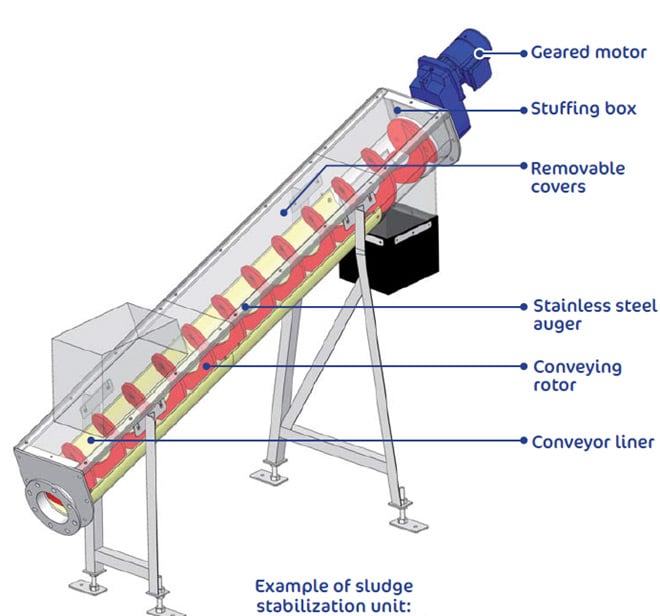

U-Shaped Inclined Screw Conveyor structure includes driving device, coupling, screw shaft, tank, hanging bearing device, bearing device at both ends, support, machine cover, inlet and outlet, etc.
NOTE: You can also send a message to us by this email sale@xxdahan.com, we will reply to you within 24 hours. Now tell us your needs, there will be more favorable prices!
