Model and parameters of U-Shaped Screw Conveyor

jalal afsarThursday March-30 2023  10:51:13 construction works no comments

The U-Shaped Screw Conveyor uses rotating screw blades within a U-shaped housing for conveying bulk and viscous materials. , suitable for horizontal/small inclination angle conveying, and the inclination angle does not exceed 15°. This article will introduce the U-Shaped Screw Conveyor model for you, which is convenient for you to use as a reference when selecting models:

Model and parameters of U-Shaped Screw Conveyor

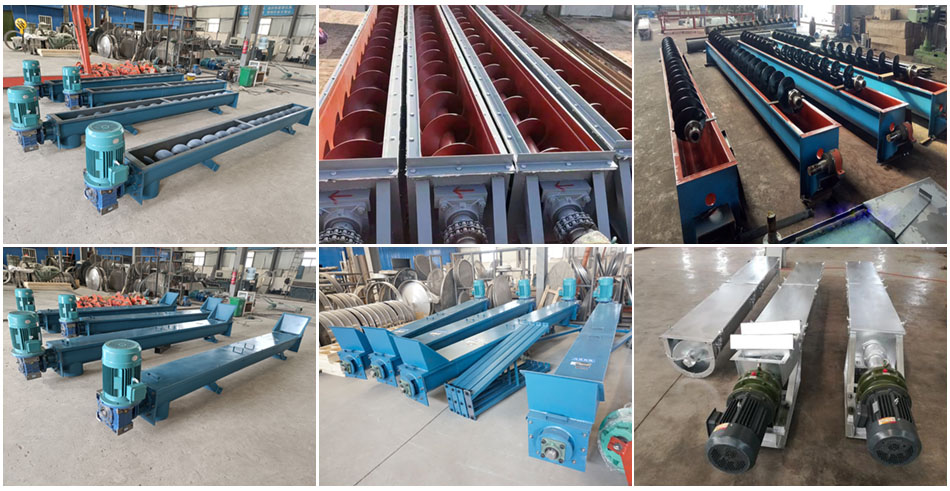

U-Shaped Screw Conveyor Model

The U-Shaped Screw Conveyor models include U200, U250, U300, U400, U500, U600, etc., with a conveying capacity of up to 143 cubic meters per hour and a conveying length of no more than 20 meters.

U-Shaped Screw Conveyor Model

U-Shaped Screw Conveyor Parameter

Specification Main technical performance drive unit drive unit Weight (kg)
diameter length (m) Output (cement) t/h speed(min) reducer electric motor
model speed ratio Power(kw)
U 200 -10 9 60 ZQ250 23.34 1.1 726
U 200 -20 9 60 ZQ250 23.34 1.5 1258
U 250 -10 15.6 60 ZQ250 23.34 2.2 960
U 250 -20 15.6 60 ZQ250 23.34 3 1750
U 300 -10 21.2 60 ZQ350 23.34 3 1373
U 300 -20 21.2 60 ZQ350 23.34 4 2346
U 400 -10 51 60 ZQ400 23.34 5.5 1911
U 400 -20 51 60 ZQ500 23.34 11 2049
U 500 -10 87.5 60 ZQ400 23.34 7.5 2381
U 500 -20 87.5 60 ZQ650 23.34 18.5 5389
U 600 -10 134.2 45 ZQ750 23.34 22 3880
U 600 -10 134.2 45 ZQ850 23.34 55 7090

It can be seen from the above table:

1) The width of the conveying trough: U-Shaped Screw Conveyor is named according to the width of the conveying trough, that is, the width of the trough. The trough width determines the height of the conveying volume. The wider the conveying trough, the greater the conveying capacity.

2) Motor speed: It is also a key factor to determine the conveying capacity of U-Shaped Screw Conveyor, but it should be noted that the speed of the screw conveyor needs to be reduced as much as possible under the premise of reaching the conveying capacity. Because when the speed of the screw conveyor exceeds the corresponding limit, the centrifugal force received by the material will be counterproductive and the material will be thrown out.

3) Motor power: The choice of motor power should be controlled within a reasonable range. If the motor power is too small, the running speed of the material in the conveying trough will be too slow, which will affect the conveying efficiency, and the motor may be burned due to excessive load. If the power of the motor is too large, it will increase the power consumption and increase the production cost of the enterprise.

Special Model of U-Shaped Screw Conveyor

In addition, U-Shaped Screw Conveyor can also choose a shaft or no shaft design according to the material to be conveyed, and a double shaft design can also be used for special materials and special occasions.

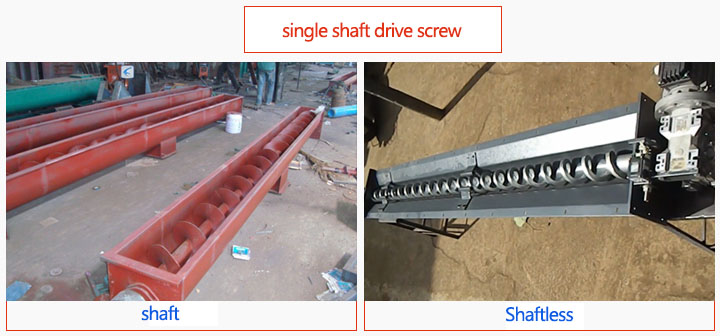

single screw drive

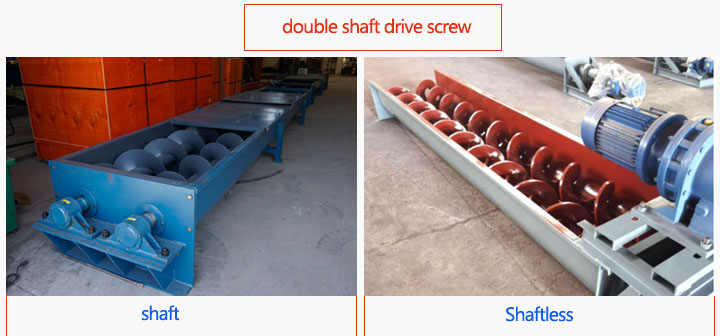

double helix drive

U-Shaped Shaftless Screw Conveyor: Granular/powder materials, wet/paste materials, semi-fluid/viscous materials, easily entangled/easy to clog materials, materials with special hygienic requirements. Such as sludge, garbage, etc.

U-Shaped Shaft Screw Conveyor: Materials that are not easy to stick and have certain friction.



The above is the introduction of U-Shaped Screw Conveyor model and parameters, I hope it will be helpful to you.
