Vehicle-mounted Grain Suction Machine

What is Vehicle-mounted Grain Suction Machine?

Vehicle-mounted Grain Suction Machine is a practical and portable vehicle-mounted loading machine that is directly stuck on the vehicle. It is suitable for small and medium-sized farms and vendors who go to the countryside to collect grain. It is small in size, light in weight, easy to move, and efficient in absorbing grain. High, low damage rate, wide use occasions, safe and reliable, etc., it is very suitable for individual farmers, grain households and agricultural cooperatives.

Vehicle-mounted Grain Suction Machine conventional models: 6 meters, 8 meters, 10 meters, 12 meters, and can also be customized according to the length of the user's needs.

Where can the Vehicle-mounted Grain Suction Machine be used?

Vehicle-mounted Grain Suction Machine is mainly used for bulk grain transportation, warehouse storage, and truck loading. The applicable materials include wheat, corn, soybean, buckwheat, rice, sorghum and other agricultural crops. It is suitable for grain depots, farms, stations, and docks , Grain and oil processing and brewing industry, agriculture, forestry, animal husbandry, petrochemical industry, food in storage or production process in bulk, bulk transportation, bulk unloading, chopping, replenishment, storage and other mechanization.

Note: When the Vehicle-mounted Grain Suction Machine is working, the bending radius of the hose shall not be less than 1 meter. The pipe shall not be squeezed or damaged or dented by sharp tools.

Vehicle-mounted Grain Suction Machine Video

Vehicle-mounted Grain Suction Machine Features

1. The horizontal conveying distance can reach 5-30 meters, the lifting height can reach 4 meters, and 2-5 tons per hour.

2. The machine is directly stuck on the car, so it is easy to move and install.

3. It has a wide range of applications, and can suck and transport grain, as well as granular fertilizers, feed, chemical products and non-corrosive granular materials.

4. The layout is flexible, and materials can be transported horizontally, inclined or vertically.

5. It can be operated by a single unit, a combination of multiple units, or form a conveying system with other equipment to meet different operating needs.

Vehicle-mounted Grain Suction Machine Structure

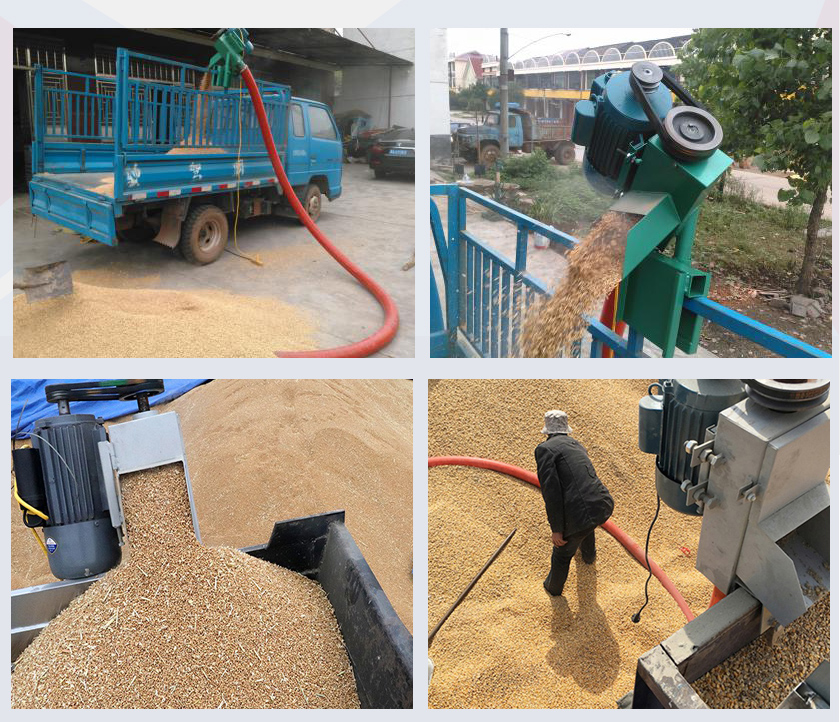

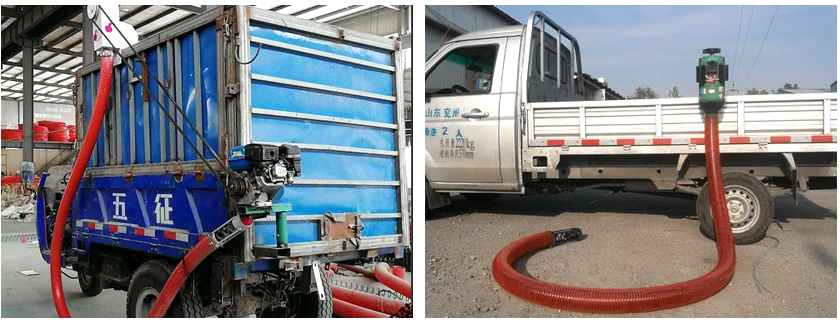

The Vehicle-mounted Grain Suction Machine is installed on the side panel of the carriage. There is a fixed and inclined box on the installation shelf. There is a hose connected under the body, and the end section of the hose is provided with a joint pipe extending into the storage box. The end section of the joint pipe is closed, and a coil spring runs through the hose. The upper end of the spring extends into the box and connects with the output shaft of the motor. fixed.

How does Vehicle-mounted Grain Suction Machine work?

The hose of the Vehicle-mounted Grain Suction Machine has a soft helix inside. The motor shaft and the helical spring are connected by a screw. When the motor is started, the motor drives the helical spring to rotate. Under the action, it rises along the direction of the helix angle of the spring, and when it reaches the discharge port, it will automatically unload grain due to the action of gravity.

Vehicle-mounted Grain Suction Machine Technical Parameters
