Wheat Grain Suction Machine

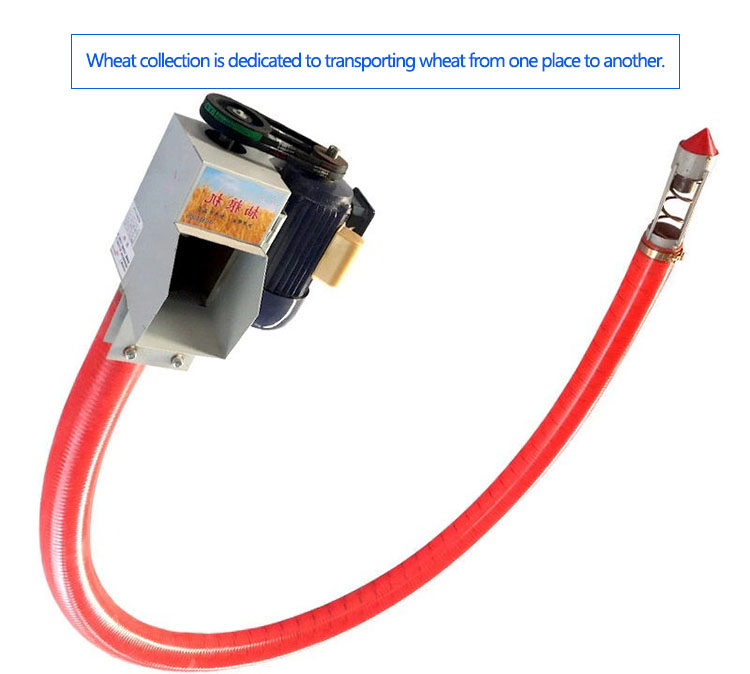

The Wheat Grain Suction Machine is a tool dedicated to wheat collection that transports wheat from one place to another.

Price:$50.00-$1200.00/Set Chat Now

Pipe diameter: 100mm, 120mm, 160mm

Regular model: 6m-8m-10m-12m

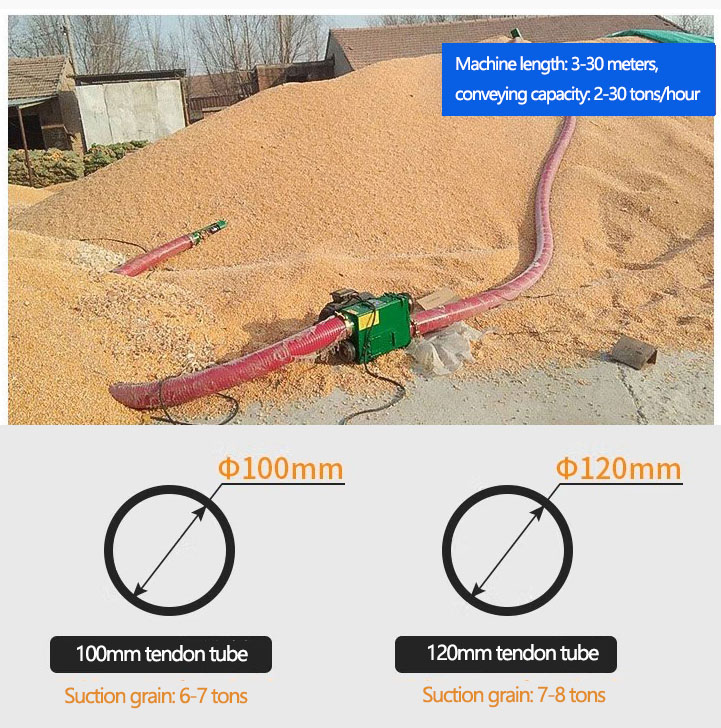

Length: 3-30 meters (can be customized)

Output: 2-30 tons/hour

Conveying form: horizontal and inclined conveying wheat

Voltage: 220V/380V

Power: 3-7.5KW

Wheat Grain Suction Machine

Introduction of Wheat Grain Suction Machine

Wheat Grain Suction Machine is a kind of mechanical equipment specially used for harvesting wheat, rice and other crops. Its main working principle is to separate and store the grains harvested from the crops by means of air flow absorption, transportation, screening, etc., and then pass through the conveyor or unloading Grain hoses transport harvested crops to storage bins or tanks. The wheat grain suction machine is one of the important equipment in agricultural mechanized production. It has the advantages of high operating efficiency, high degree of intelligence, and low cost of use, and plays an important role in agricultural production.

 Wheat Grain Suction Machine

Wheat Grain Suction Machine Video

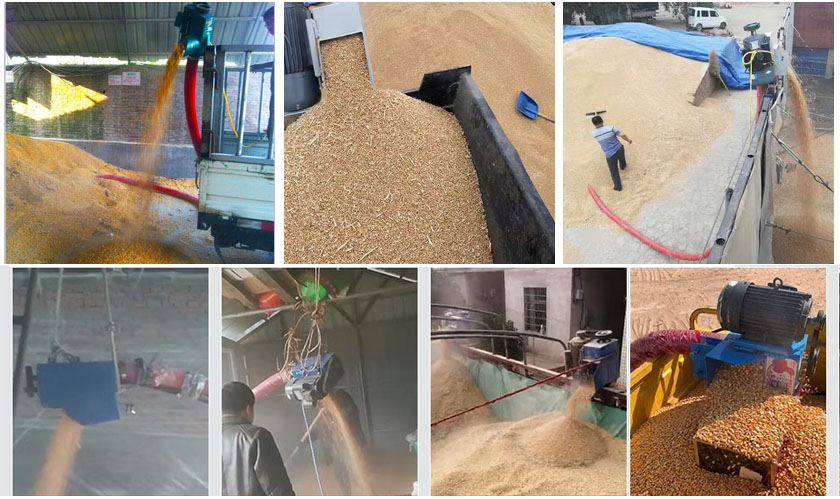

Wheat loading site

wheat delivery

Hand Grain Suction Machine for Loading Wheat

Mobile Portable Hand Wheat Grain Suction Machine

Wheat Grain Suction Machine Application

The Wheat Grain Suction Machine is a device used by farmers to suck wheat into the granary when the wheat is harvested. In addition to wheat, it can also absorb other granular and large-sized crops, such as corn, soybeans, rice, peanuts, plastics, etc.

Customer site

What are the Advantages of Wheat Grain Suction Machine?

1. Multifunctionality: The wheat grain suction machine can complete multiple functions such as harvesting, conveying and cleaning, which effectively improves the efficiency of agricultural production.

2. Flexibility: The wheat grain suction machine is suitable for a variety of different sites and terrain conditions, and can be used in different crop planting areas without terrain restrictions.

3. Efficiency: The wheat grain suction machine has high-efficiency harvesting and conveying capabilities, and can quickly complete the harvesting and conveying of crops, reducing the intensity of manual labor.

4. Protection: The wheat grain suction machine adopts advanced technology to handle the crops gently, avoiding damage and grain loss, and ensuring grain quality.

5. Maintainability: The wheat grain suction machine has a simple structure, easy maintenance, high reliability and stability, and prolongs the service life.

features

Grain Suction Machine Technical Parameters

Diameter Length Voltage Power Capacity Weight
100mm 3m 220V 3KW 5-6T 43kg
100mm 4m 220V 3KW 5-6T 47kg
100mm 5m 220V 3KW 5-6T 51kg
100mm 6m 220V 3KW 5-6T 55kg
100mm 7m 220V 3KW 5-6T 62kg
100mm 8m 220V 3KW 5-6T 66kg
100mm 9m 220V 3KW 5-6T 70kg
100mm 10m 220V 4KW 5-6T 74kg
100mm 11m 380V 4KW 5-6T 82kg
100mm 12m 380V 4KW 5-6T 86kg
120mm 3m 220V 3KW 7-8T 48kg
120mm 4m 220V 3KW 7-8T 52kg
120mm 5m 220V 3KW 7-8T 56kg
120mm 6m 220V 3KW 7-8T 60kg
120mm 7m 220V 4KW 7-8T 60kg
120mm 8m 220V 4KW 7-8T 71kg
120mm 9m 220V 4KW 7-8T 75kg
120mm 10m 220V 4KW 7-8T 79kg
120mm 11m 380V 4KW 7-8T 89kg
120mm 12m 220V 4KW 7-8T 93kg
100mm 20m 380V 7.5KW 5-6T 150kg
100mm 25m 380V 7.5KW 5-6T 170kg
120mm 20m 380V 7.5KW 6-7T 180kg
120mm 22m 380V 7.5KW 6-7T 200kg
