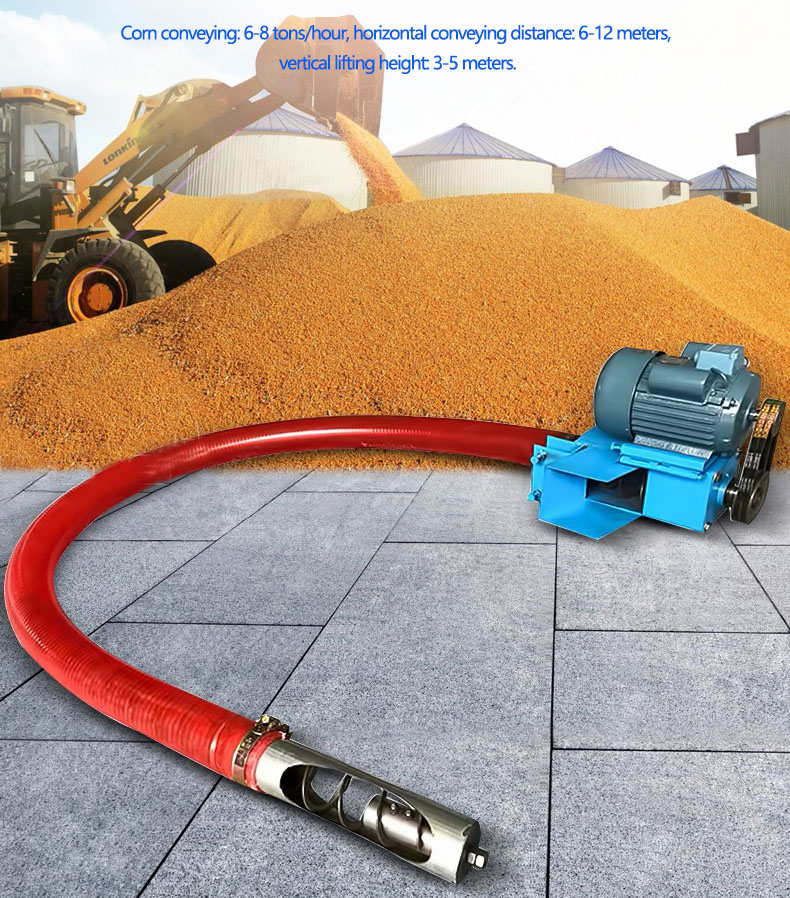

Corn Grain Suction Machine is a small conveying machine designed for bulk corn collection, bagging and conveying. The length can be customized according to user needs.
Price:$90.00-$1050.00/Set Chat Now
Fuselage length: 8 meters
Delivery capacity: 6-8 tons
Horizontal conveying distance: 6-12 meters
Vertical lifting height: 3-5 meters
Application: corn, wheat, rice, soybean, straw, cotton
Corn Grain Suction Machine is mainly used as a small conveying machine for conveying corn grains. It is suitable for small and medium-sized farms and vendors who go to the countryside to collect grain. It can be bagged and loaded. Corn enters the screw blade from the feed port of the grain suction machine and conveys upward. Then the material is discharged from the discharge port to complete this process. Corn Grain Suction Machine can be customized in different lengths according to different requirements of customers. The main lengths are 6 meters, 8 meters, 10 meters, 12 meters, etc.
Commonly used models of Corn Grain Suction Machine are 100mm, 120mm, 160mm, and 180mm in diameter, and the output can reach 3 to 30 tons depending on the model. The vertical lifting height can reach 6 meters, and the length of the straw can reach more than 10 meters.
corn loading
Wholesale Portable Grain Suction Machine for Bulk Corn From

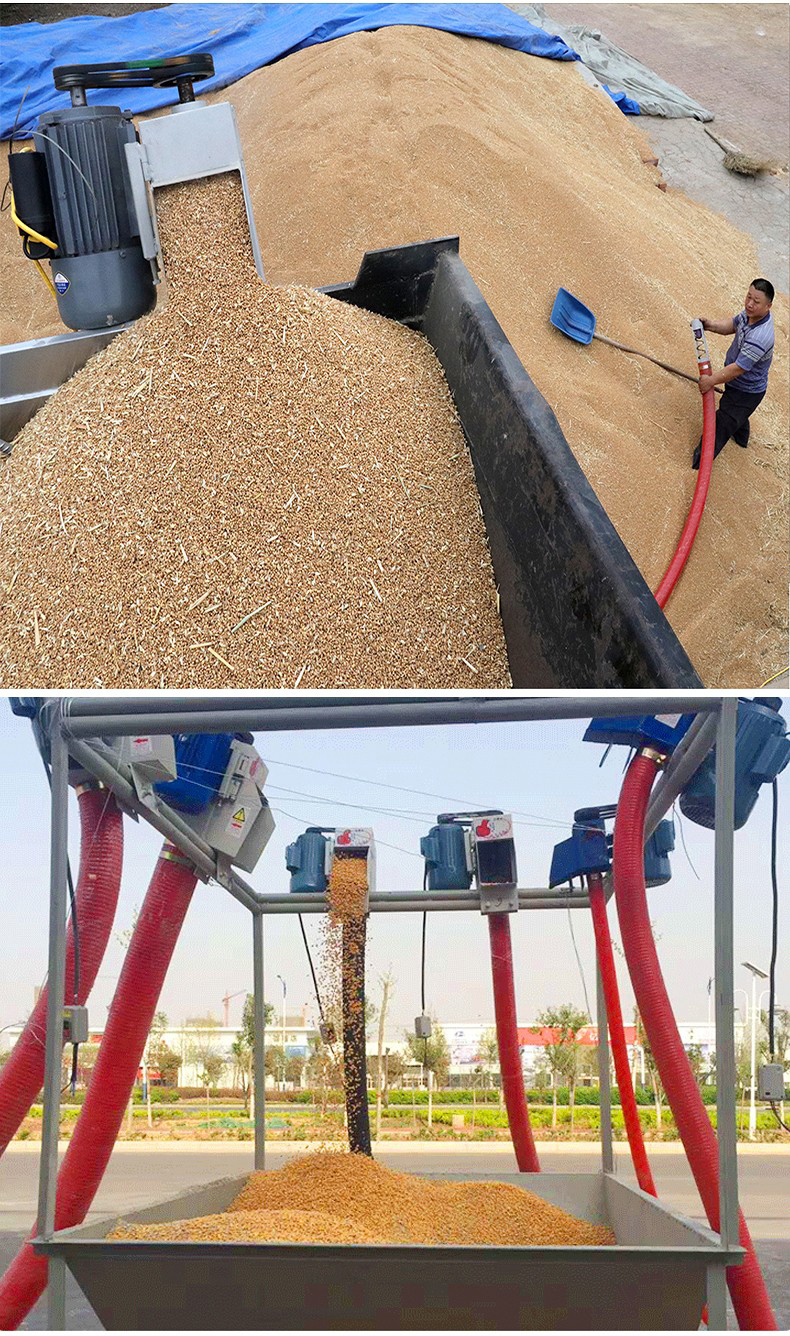

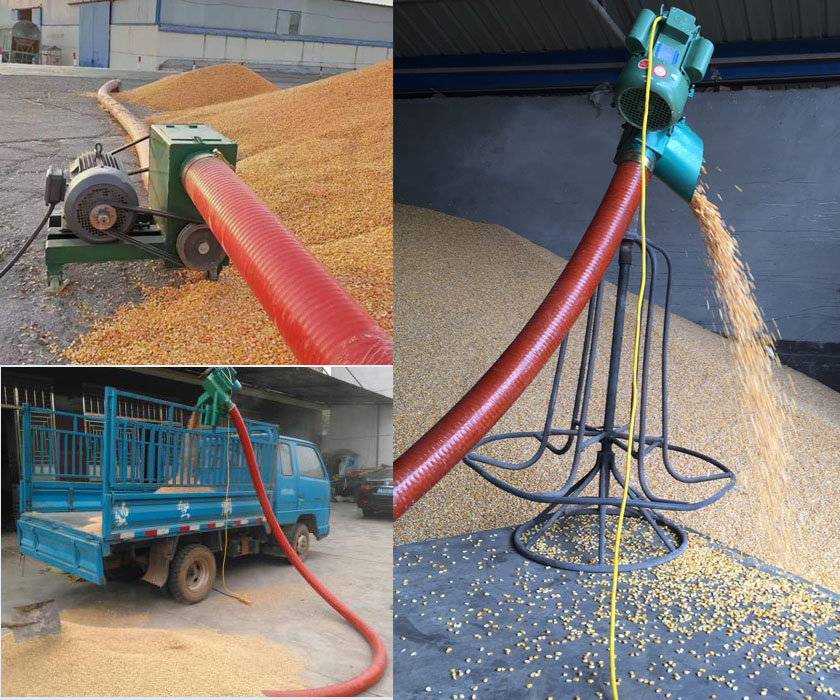

Corn Grain Suction Machine can be used in corn collection, corn loading, bagging, warehousing, storage, bulk transportation, bulk unloading and other links in agricultural production. In addition, it can also be used for harvesting and processing other food crops, grass seeds and other materials.
Specific application materials include corn, millet, wheat, soybean, rapeseed, grass seeds and other crop seeds, as well as peanuts, cotton, sesame, granular fertilizers, plastics, cement, sand and other oil crops.

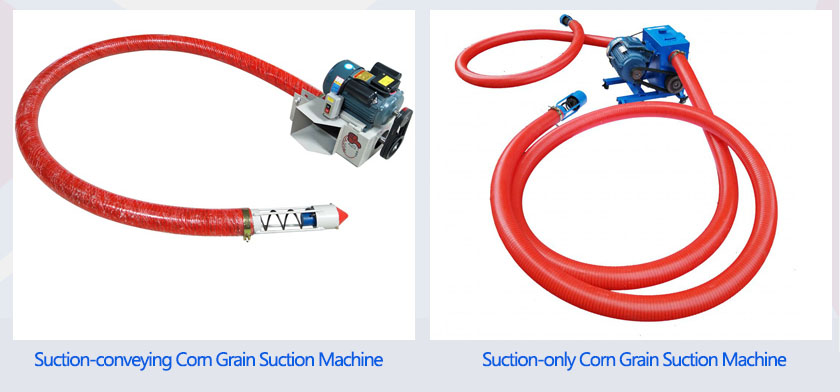

1. Suction-conveying Corn Grain Suction Machine: Wind-driven corn is sucked into the machine through the suction device and suction pipe, and the gas and material are separated through the separator, and then sent to the warehouse, carriage and other destinations by the pipe and unloader.
2. Corn Grain Suction Machine that only sucks but does not deliver: After the corn is sucked into the machine, it passes through the separator and the fan, and then falls freely at the outlet of the fan, where it is directly stacked, bagged or connected to other conveying equipment.

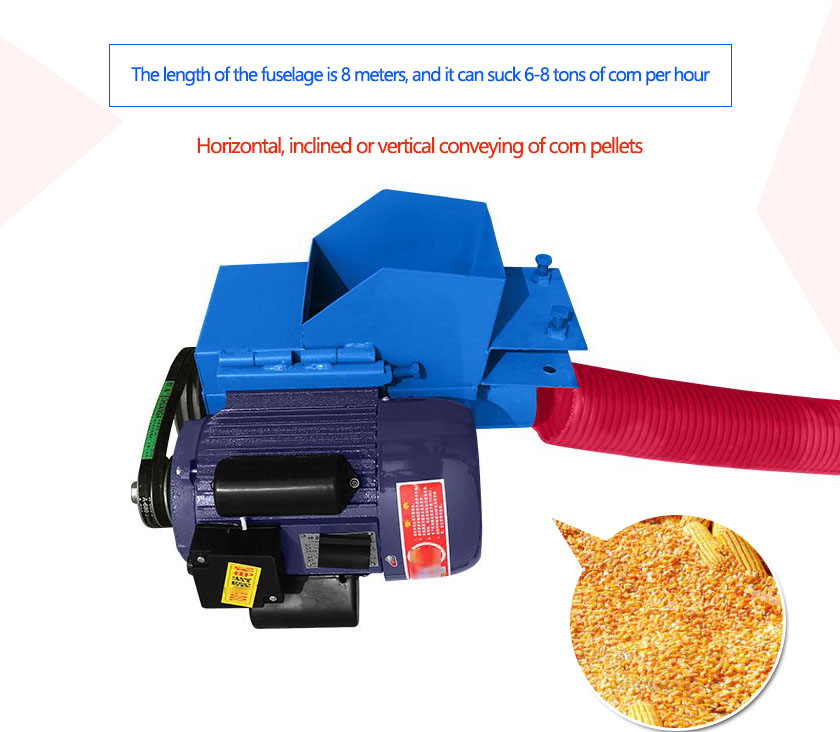

1. The length of the fuselage can reach 8 meters, and it can pump 6-8 tons of grain per hour. It is suitable for pumping grain in the countryside and reduces the burden on workers.
2. Corn grains can be transported horizontally, inclined or vertically, the horizontal distance can reach 6-12 meters, the lifting height can reach 3-5 meters, and the bending radius cannot be less than 1 meter when working.
3. According to the requirements of the conveying process, it can be operated by a single unit, a combination of multiple units, or form a conveying system with other equipment to meet different operating requirements.
4. The whole machine is light in weight, occupies a small area, and is easy to move and install.
The Corn Grain Suction Machine starts the engine, drives the centrifugal fan to rotate, generates strong negative pressure suction, and sucks foreign matter such as corn kernels, straw and weeds on the ground into the machine, and the motor drives the coil spring to rotate, and the grain at the collection port is rotating. Under the action of the spring, it rises along the direction of the helix angle of the spring. When reaching the exit, the corn is automatically unloaded by gravity.
| Diameter | Length | Voltage | Power | Capacity | Weight |
| 100mm | 3m | 220V | 3KW | 5-6T | 43kg |
| 100mm | 4m | 220V | 3KW | 5-6T | 47kg |
| 100mm | 5m | 220V | 3KW | 5-6T | 51kg |
| 100mm | 6m | 220V | 3KW | 5-6T | 55kg |
| 100mm | 7m | 220V | 3KW | 5-6T | 62kg |
| 100mm | 8m | 220V | 3KW | 5-6T | 66kg |
| 100mm | 9m | 220V | 3KW | 5-6T | 70kg |
| 100mm | 10m | 220V | 4KW | 5-6T | 74kg |
| 100mm | 11m | 380V | 4KW | 5-6T | 82kg |
| 100mm | 12m | 380V | 4KW | 5-6T | 86kg |
| 120mm | 3m | 220V | 3KW | 7-8T | 48kg |
| 120mm | 4m | 220V | 3KW | 7-8T | 52kg |
| 120mm | 5m | 220V | 3KW | 7-8T | 56kg |
| 120mm | 6m | 220V | 3KW | 7-8T | 60kg |
| 120mm | 7m | 220V | 4KW | 7-8T | 60kg |
| 120mm | 8m | 220V | 4KW | 7-8T | 71kg |
| 120mm | 9m | 220V | 4KW | 7-8T | 75kg |
| 120mm | 10m | 220V | 4KW | 7-8T | 79kg |
| 120mm | 11m | 380V | 4KW | 7-8T | 89kg |
| 120mm | 12m | 220V | 4KW | 7-8T | 93kg |
| 100mm | 20m | 380V | 7.5KW | 5-6T | 150kg |
| 100mm | 25m | 380V | 7.5KW | 5-6T | 170kg |
| 120mm | 20m | 380V | 7.5KW | 6-7T | 180kg |
| 120mm | 22m | 380V | 7.5KW | 6-7T | 200kg |
