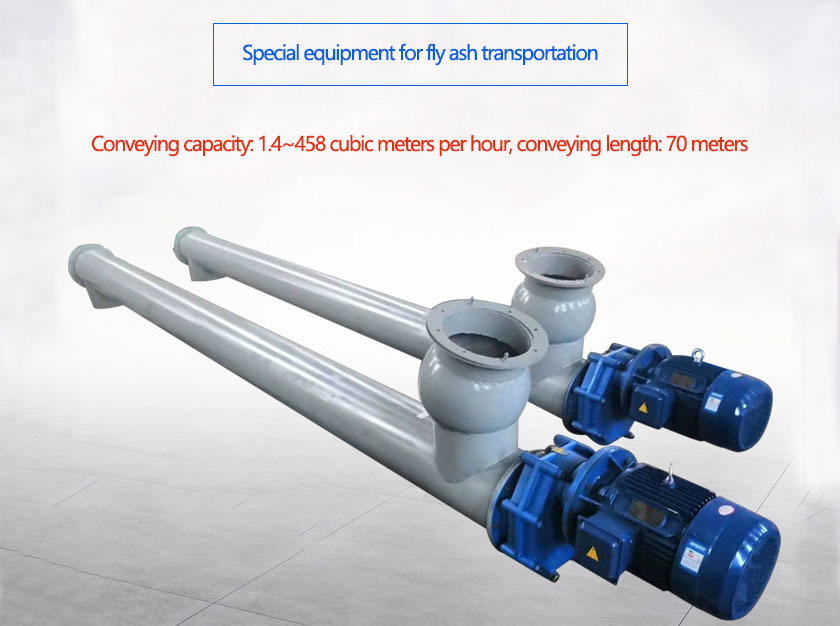

Fly Ash Screw Conveyor is a special equipment for fly ash conveying. It has good sealing performance and can prevent fly ash from being polluted during the conveying process.
Price: $450.00 - $19,000.00/Set Chat Now
Pipe diameter: 114-400m
Conveying length: 2-60 meters
Delivery capacity: 54-75 tons/hour
Conveying angle: 0-60 degrees
Speed: 80-112 rpm

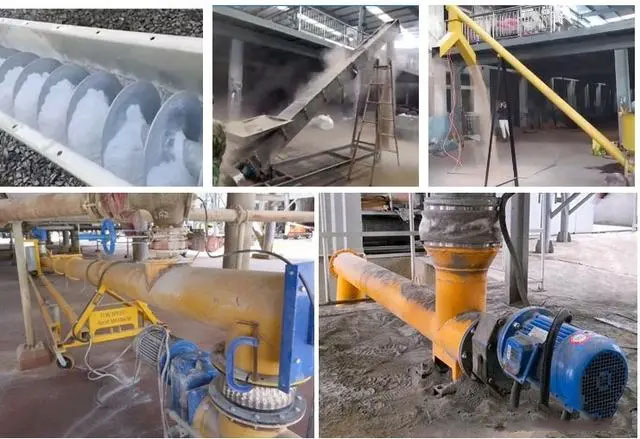

Fly Ash Screw Conveyor is mainly used for conveying fly ash, coal powder, cement, mineral powder and other bulk powder materials. It is a common conveying equipment for concrete mixing plants and stabilized soil mixing plants. Large, low noise and other characteristics, double-pitch blades, reduce the degree of compression during material transportation.

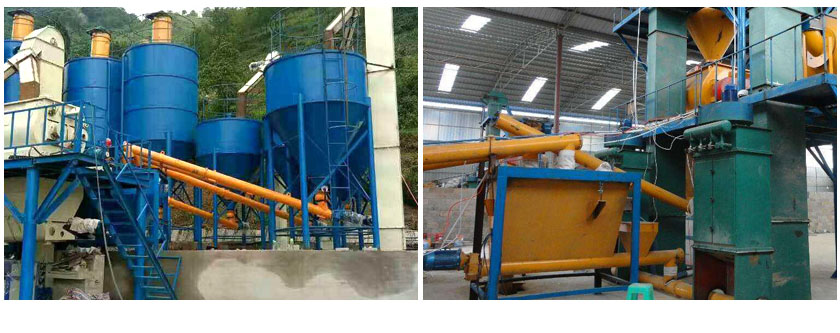

Fly ash screw conveyors are mainly used in concrete processing plants, thermal power plants, and urban central heating boilers that use pulverized coal as fuel. The purpose is to complete the transfer and transportation of fly ash on the basis of the lowest possible generation of dust pollution and additional labor costs.
Compared with ordinary screw conveyors, the fly ash screw conveyor has cold-rolled blades, which have higher hardness, and a more rigorous waterproof design allows the machine to work normally in rainy days, and there is no need to worry about fly ash caused by rainwater penetration. Caking.
1. Specifications include 140/165/219/273/325/426 and other models, the length can reach 1-20 meters, and can transport fly ash, cement powder and other products horizontally or inclined (<50 degrees).
2. Double-pitch blades are used to reduce the compression degree during material transportation and avoid blockage.

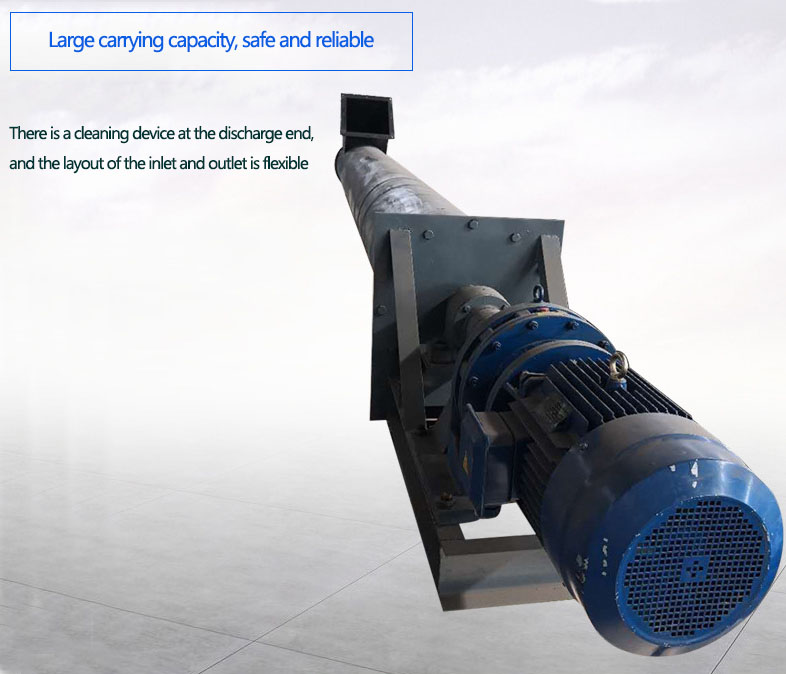

3. Heavy-duty gear box with high torque, low noise and no oil leakage.
4. The optional universal ball head is adopted, which is convenient for installation, adjustment and steering.
5. Reliable dust-proof and lubricating facilities can prevent tiny particles from entering the bearing.

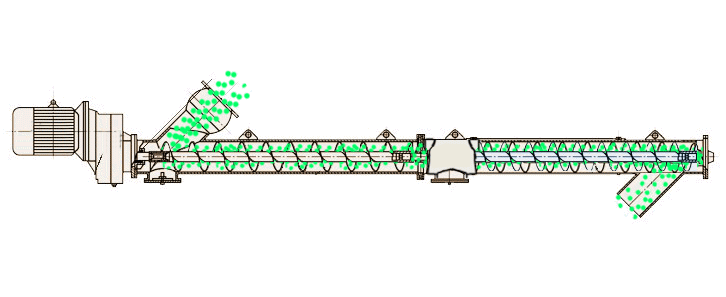

The fly ash in the cement silo is conveyed to the storage hopper through the conveying equipment, or directly conveyed to the weighing hopper, and the motor drives the screw to rotate to push the material to achieve the purpose of conveying. When the screw shaft rotates, due to the gravity of the fly ash and the friction generated by the tank wall, the material can only move forward along the bottom of the conveying trough driven by the blades.
| Model | LSY100 | LSY120 | LSY140 | LSY160 | LSY200 | LSY250 | LSY300 | LSY400 | ||
| Tube Diameter (mm) | Φ114 | Φ133 | Φ168 | Φ194 | Φ219 | Φ273 | Φ325 | Φ402 | ||
| Angle (α) | 0°～60° | 0°～60° | 0°～60° | 0°～60° | 0°～60° | 0°～60° | 0°～60° | 0°～60° | ||
| Conveying Length (m) | 8 | 10 | 12 | 14 | 15 | 18 | 20 | 25 | ||
| Conveying Capacity (t/h) | 6 | 12 | 17 | 28 | 45 | 70 | 130 | 150 | ||
| Motor | Model | L≤7 | Y90S-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y132M-4 | Y160M-6 | Y160L-4 | Y180 |
| Y180M-4 | L-4 | |||||||||
| Power KW | 1.1 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15-18.5 | 22 | ||
| Model | L＞7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160M-6 | Y160L-4 | Y180M-4 | YH20 | |
| Y180M-4 | Y180L-4 | 0L-4 | ||||||||
| Power KW | 2.2 | 3 | 4 | 7.5 | 11 | 15 | 18.5-22 | 20-30 | ||
