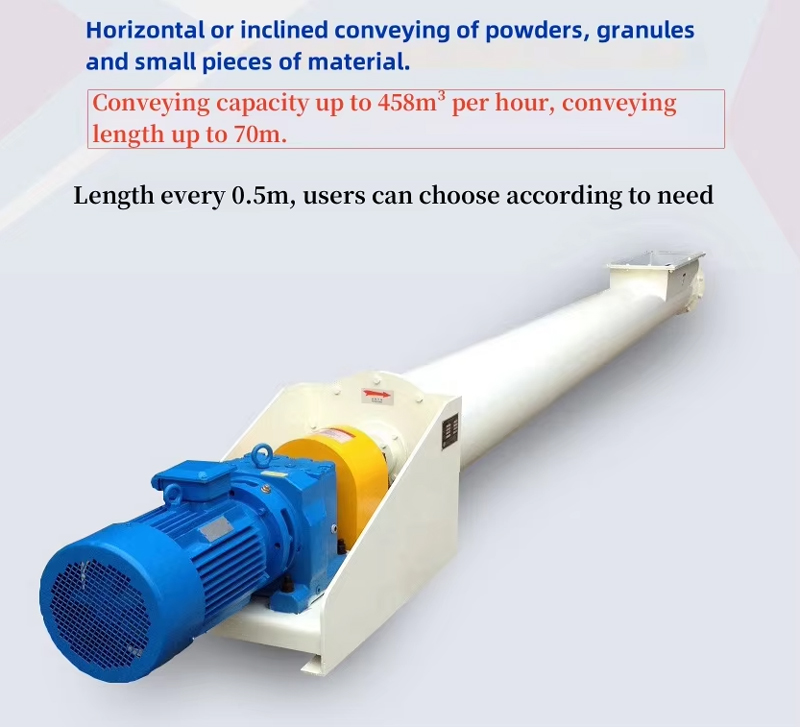

It can convey viscous/poor fluidity powder and granular materials horizontally or obliquely, and can be mixed and stirred during conveying.
Price: $500.00-$20,000.00/Set Chat Now
Each processing capacity range: 1000-3000L
Diameter of stirring blade: 450mm-600mm
Production capacity: 10-200t/h

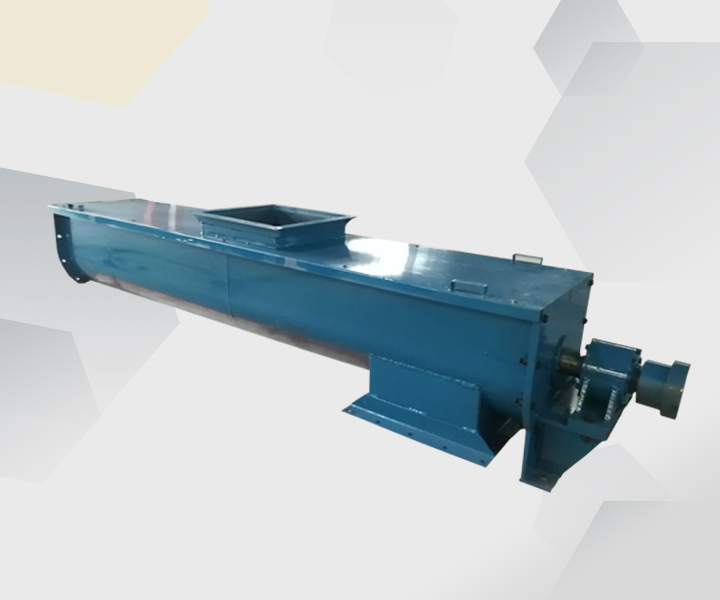

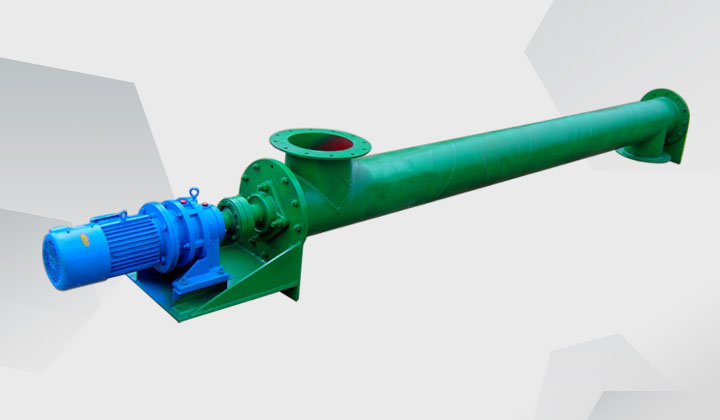

Paddle Conveyor is used to convey wet paste, viscous and semi-fluid powder materials from one end to the other, and can mix and stir the materials while conveying. The conveying method can be horizontal or inclined (the inclination angle does not exceed 45°), and the inclined conveying can control the material conveying speed and mixing time through the inclination angle.

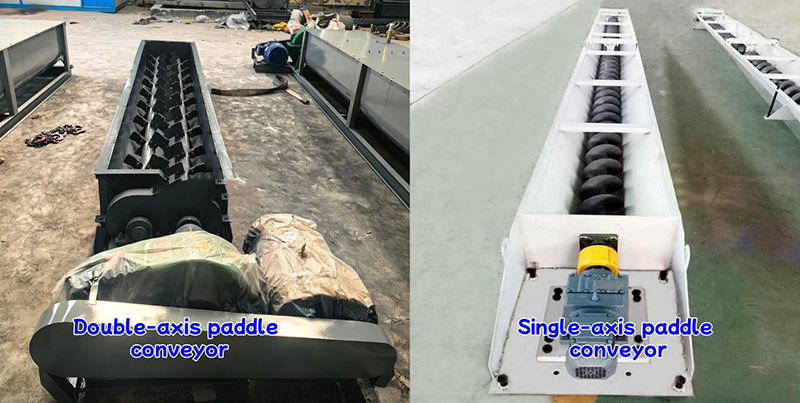

Single-axis paddle conveyor: With a single main axis as the core, the paddles are welded with equal spacing and the blade inclination angle is adjustable from 15° to 30°. The cylinder diameter is 200-600mm and the length is ≤30 meters, which effectively prevents bending and deformation. Its cost is 30%-40% lower than that of the double-axis, with fewer bearings, half the number of lubrication points, and easy maintenance. It is suitable for conveying lightweight powders with a density of less than 0.8g/cm³, short distances of less than 10 meters, and non-sticky materials with a moisture content of less than 15%.

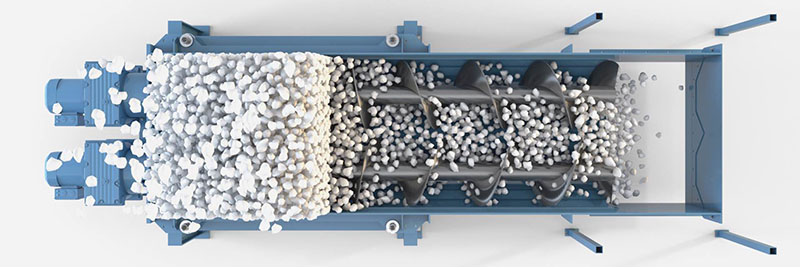

Double-axis paddle conveyor: It relies on two parallel axes to rotate synchronously in opposite directions, the paddles are staggered, and are equipped with 2-5mm adjustable linings to prevent material jamming. It is 40%-60% more efficient than a single-axis conveyor, and reverse rotation achieves self-cleaning. It is suitable for conveying high-viscosity, long-distance (>15 meters) and easy-to-agglomerate materials that need to be broken.

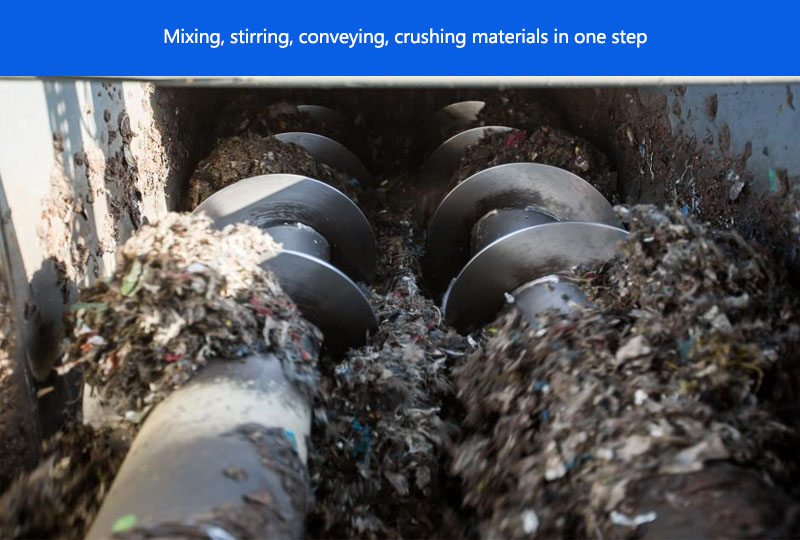

At the same time, it is capable of mixing, stirring, conveying, and material conveying in one step, which is 1.5 times the capacity of the traditional screw conveyor.
Fully sealed structure, conveying powder materials, no dust, no pollution
1. The double-groove paddle reduces the compression process of the material during transportation and avoids blockage.
2. The inlet and outlet are equipped with high-quality center bearings and tail bearings.
3. The size and angle can be customized according to your requirements.
4. It is suitable for horizontal, inclined or vertical transportation, which can meet the material transportation needs in different working scenarios.
5. The design of the paddle can effectively prevent the material from dumping or piling up during transportation, ensuring smooth material transportation.
When the Paddle Conveyor is working, the material enters the conveyor from the feed port, and the rotation of the spiral body makes the material move axially, so as to achieve the purpose of conveying.
| Double shaft horizontal mixer model | HDWJ2000 | HDWJ2500 | HDWJ3000 |
| production capacity(t/h) | 8 | 10 | 18 |
| Spindle speed(r/min) | 35 | 35 | 35 |
| motor（kw） | 7.5KW4class | 11KW4class | 15KW4class |
| Dimensions (L×W×H) | 3100×750×500 | 4200×800×620 | 4700×800×620 |
| equipment weight(kg) | 1600 | 2500 | 3200 |

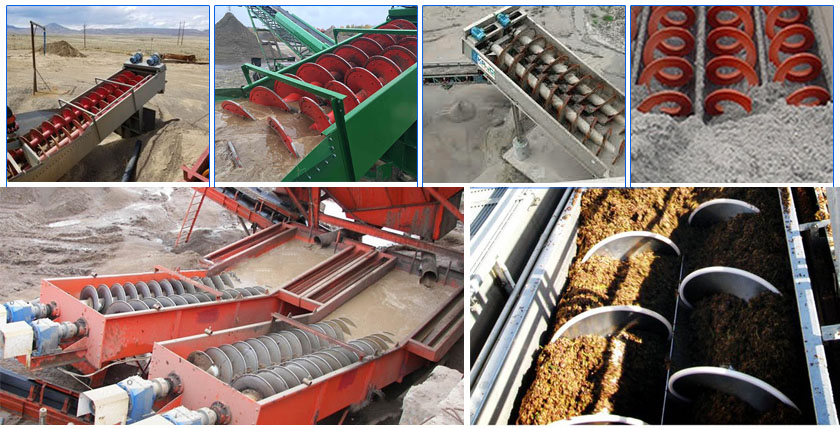

Paddle conveyors are widely used for powdered, granular and small-block materials, including grains, cement, sand and many other categories, thanks to their multifunctional characteristics of simultaneously conveying, stirring and mixing materials. In the cement industry, they can convey raw materials and finished products such as cement and limestone; in the mining industry, they are used to transport materials such as coal and ore; in the metallurgical industry, they are responsible for conveying metal ores and slag; in the chemical industry, they are responsible for the transportation of fuels such as coal powder and ash slag, making them a powerful equipment for material handling in many industries.

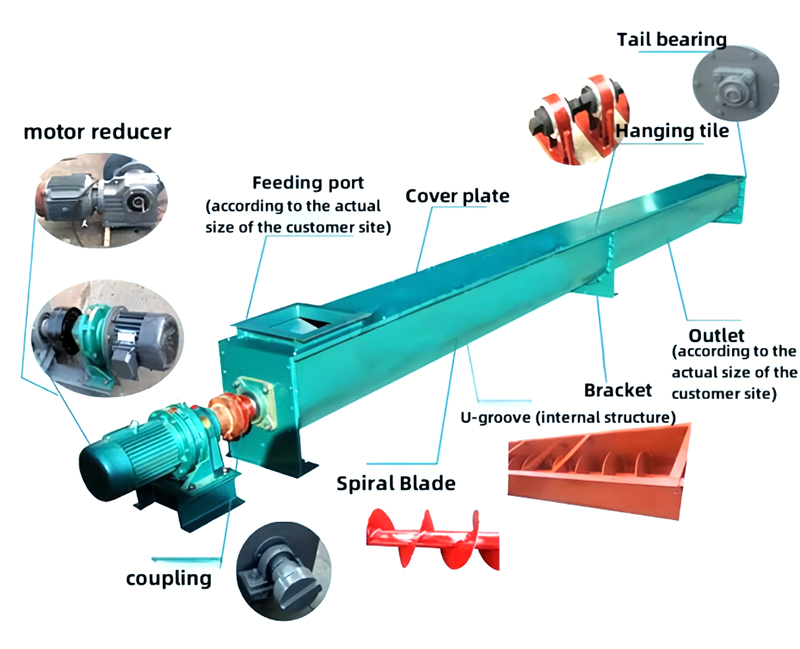

Paddle conveyor is a complex conveying system composed of multiple components, including the following main components:
Paddle (spiral blade): The paddle is the core component of the paddle conveyor, usually composed of spiral blades, responsible for moving the material along the conveying pipe or trough.
Conveying pipe (conveyor trough): A pipe or trough used to hold and convey materials, through which the paddle conveys the material from one place to another.
Motor and reducer: The motor and reducer used to drive the paddle provide power to rotate the paddle and realize the conveying of materials.
Support structure: Supports the overall structure of the paddle conveyor to ensure stable operation of the equipment.
Feed port and discharge port: The feed port is used to load materials, and the discharge port is used to unload materials to achieve smooth material transportation.
Dahan Conveying Equipment Factory has many years of industry experience and a professional technical team, committed to innovative design and precision manufacturing. We have three different types of conveyors: shaftless, dual-shaft, and shafted. We can provide you with advanced conveying solutions to meet the needs of different industries. If you are looking for efficient conveying solutions or need a customized paddle conveyor, please feel free to contact us. We will provide you with quality products and services.
The price range of paddle conveyors is between US$658.00 and US$2,900.00 per set, and the specific price varies depending on the equipment specifications and configuration. Single-axis paddle conveyors are usually priced at the lower end of the range due to their simple structure and single function. They are suitable for small-scale operations that handle light powders and carry out short-distance transportation. The price of the double-shaft paddle conveyor is relatively high due to its advantages of efficient conveying, self-cleaning, and the ability to handle high viscosity and long-distance conveying. In addition, if the diameter and length of the equipment barrel are increased, or if special functions such as explosion-proof design and customized lining are equipped, the cost will also increase. If you need a more detailed product price list, please contact us!
