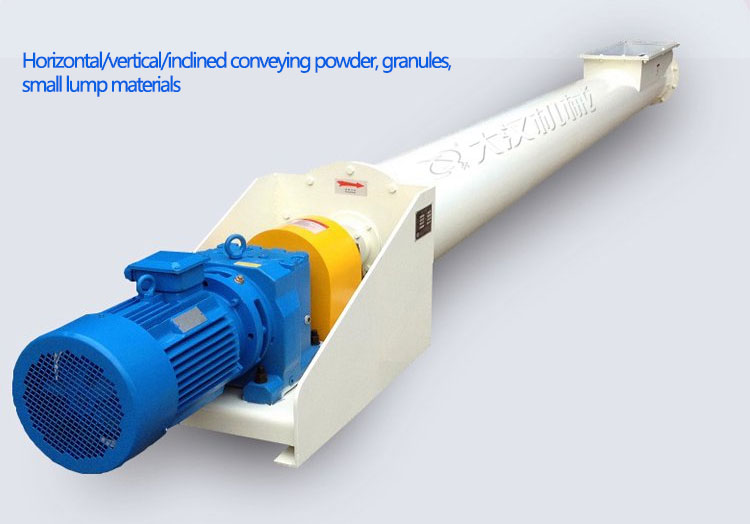

Screw conveyor is a device for horizontal/vertical/inclined conveying of powder, granules and small lump materials.
Screw conveyor is divided into two types with shaft and without shaft. The shafted Screw conveyor is suitable for non-sticky dry powder materials and small granular materials (such as: cement, fly ash, lime, grain, etc.), and the Screw conveyor is suitable for conveying viscous and viscous materials, and will not be damaged due to the materials sticking to the shaft. Risk of clogging (eg: sludge, pulp, biomass, garbage, etc.), the fully enclosed conveying and easy-to-clean helical surfaces guarantee a hygienic environment and ensure that the delivered material is free from contamination and leaks.
Large conveying capacity: It is allowed to transport a large amount of materials in a small space, with a conveying capacity of 458m/h and a length of up to 60 meters.
Uniform conveying, no material jamming: the speed of the whole machine is fast, the conveying is fast and uniform, the material is not easy to be blocked, and it can be connected and fixed with other supporting equipment.
Sealed Construction: Keeps out odors, keeps foreign objects out, avoids spills and minimizes maintenance.
Easy to load and unload: the horizontal screw conveyor can be loaded and unloaded at any point on its conveying line, and the vertical screw conveyor has superior feeding capacity compared with the screw feeding device.
Flexible layout: It can be erected on a raised shelf, on the ground or in a pit, can be installed horizontally or on a slope (≤15°), and can also be transported vertically.

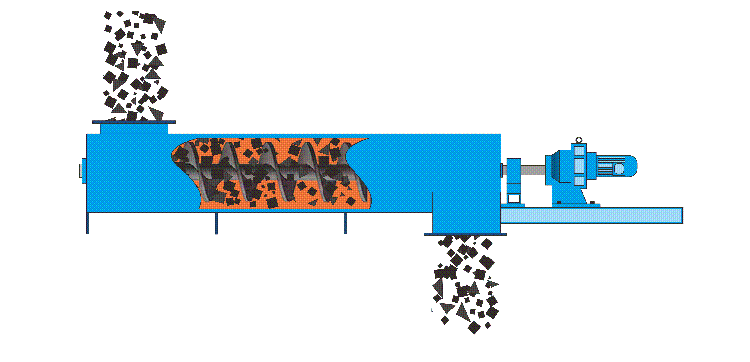

After the material is transported to the screw conveyor shell through the feed port, it is subjected to the centrifugal force and the friction force of the pipe wall in the inner spiral groove, and rotates with the spiral blade, slides down the spiral groove under the action of gravity, so that the material is continuously pushed forward and conveyed , and finally evenly discharged from the discharge port.
