Small Auger Feeder

Introduction of Small Auger Feeder

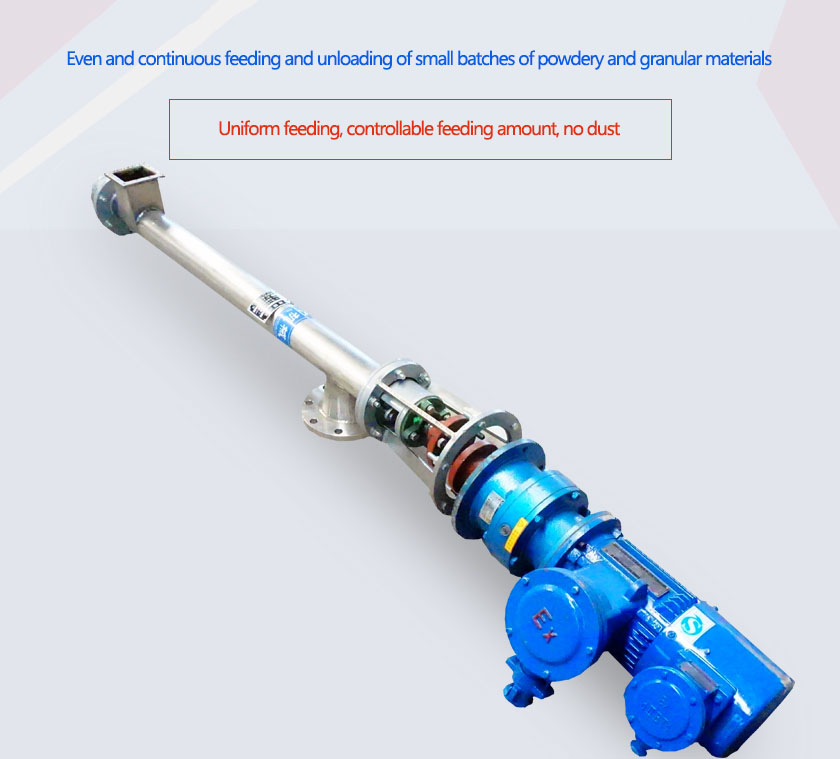

Small auger feeder, also known as miniature small auger feeder, is a screw conveying equipment specially designed for small-volume users. It is mainly used for uniform and continuous feeding and unloading of small batches of powdery and granular materials, with stable flow and uniform feeding, the feeding amount is from 0.001 kg/h to 1000 kg/h, the feeding length (the distance between the center of the inlet and outlet) is 100mm-2000mm, and the discharge method is divided into vertical and horizontal discharge.

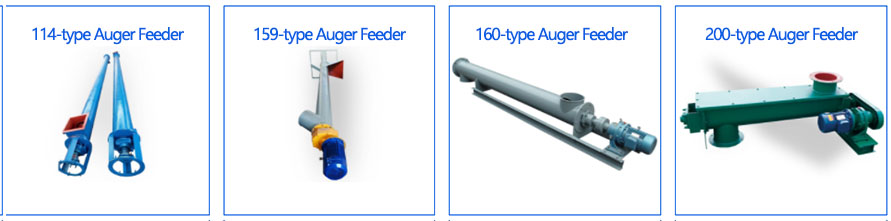

Specifications of Small Auger Feeder

114-type Auger Feeder: diameter 114mm, conveying capacity: 3 cubic meters per hour, conveying length 3 meters

159-type Auger Feeder: diameter 159mm, delivery capacity: 5 cubic meters per hour, delivery length 10 meters

160-type Auger Feeder: diameter 160mm, delivery capacity: 8 cubic meters per hour, delivery length 15 meters

200-type Auger Feeder: diameter 200mm, delivery capacity: 10 cubic meters per hour, delivery length 20 meters

Videos of Small Auger Feeder

fertilizer feed

sand feed

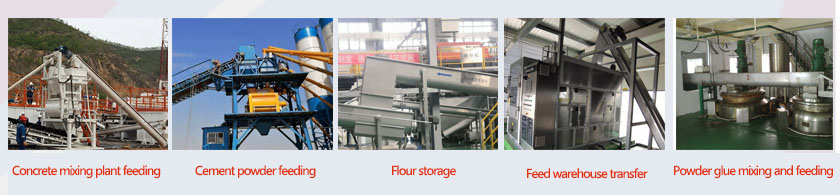

Application of Small Auger Feeder

As a common conveying equipment, small auger feeders are widely used in many industries.

In the livestock breeding industry, small auger feeders are often used for feed conveying and feeding operations. It can transport various granular or powdery feed ingredients efficiently and evenly.

In the agricultural field, small auger feeders are also used for the transportation and distribution of agricultural products such as seeds and fertilizers.

Small auger feeders are also widely used in material transportation and handling in construction materials, chemicals, food processing and other industries. It can transport materials in various forms such as powder, granular, and lumpy, and is suitable for the material transportation needs of different process links.

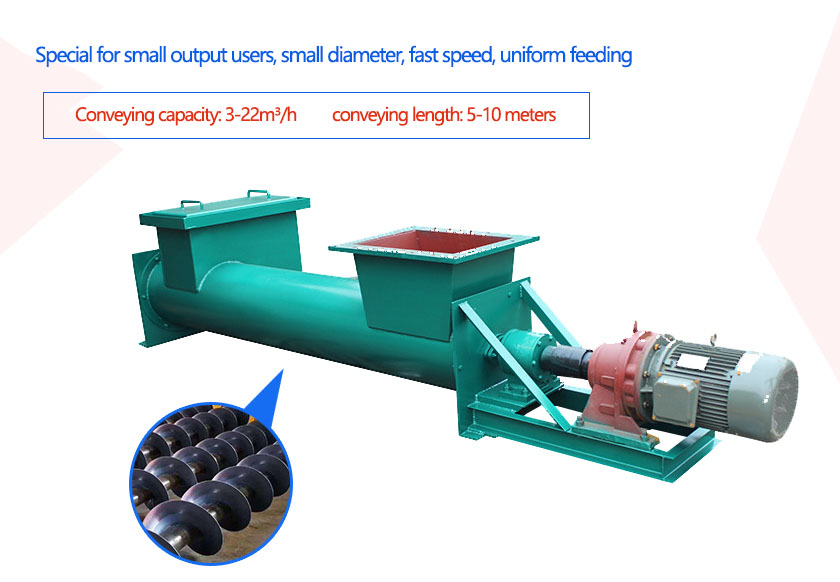

Features of Small Auger Feeder

1. Dedicated to users with small output, small diameter, fast speed, conveying capacity of 3-22 cubic meters per hour, and conveying length of 5-10 meters.

2. The same tank can be used for conveying in two directions, and it has the function of stirring and loosening materials during the conveying process.

3. It can be loaded and unloaded freely along the entire length.

4. It is easy to install and can be moved. If multiple mixers use the same material, only one feeder can feed multiple mixers at the same time, eliminating the trouble of manual feeding, making the feeding work safer and more time-saving , more labor-saving.

5. During the conveying process, the raw materials will not be polluted and foreign matter will not be brought in, which can realize the fully closed automation in the production process.

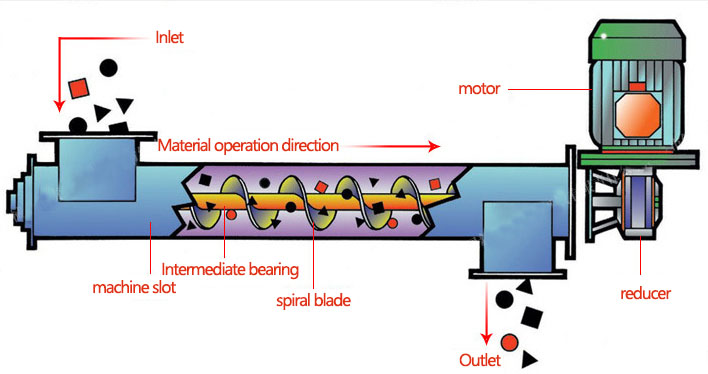

Structure of Small Auger Feeder

Small Auger Feeder mainly consists of the following parts:

Feed port: The entrance used to receive materials to be transported.

Screw blade: Located in the cylinder, driving the material forward through rotation.

Cylinder: Wraps the screw blades to form a conveying channel to ensure smooth conveying of materials.

Driving device: Usually composed of a motor, reducer, etc., which provides power to drive the screw blades to rotate.

Discharge port: The material is discharged from here after being conveyed to complete the conveying process.

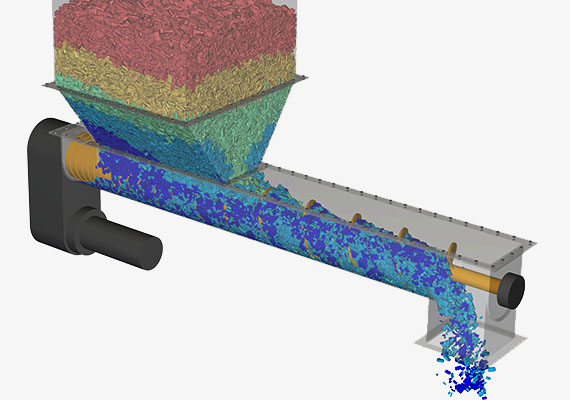

Working Principle of Small Auger Feeder

When the small auger feeder is running, after the material is conveyed to the shell of the single-tube screw feeder through the feed port, the material is subjected to the centrifugal force and the friction force of the tube wall in the internal spiral groove, and rotates together with the screw blade, and Under the action of gravity, it slides down the spiral groove, so that the material is continuously pushed forward and conveyed, and finally discharged evenly from the discharge port.

Technical Parameters of Small Auger Feeder

Types	100	160	200	250	315	400
Screw diameter(mm)	100	160	200	250	315	400
Screw pitch(mm)	100	160	200	250	315	355
Rotating speed(r/min)	100	120	90	90	75	75
Capacity Qφ=0.33(m3/h)	2.2	7.6	11	22	36.4	66.1
Power Pd 1=10m(kw)	1.1	1.5	2.2	2.4	3.2	5.1
Specification only for your reference, size variable as per customer's request. Note: Please use other types of screw conveyors of our company for those larger than 1000 kg/h.

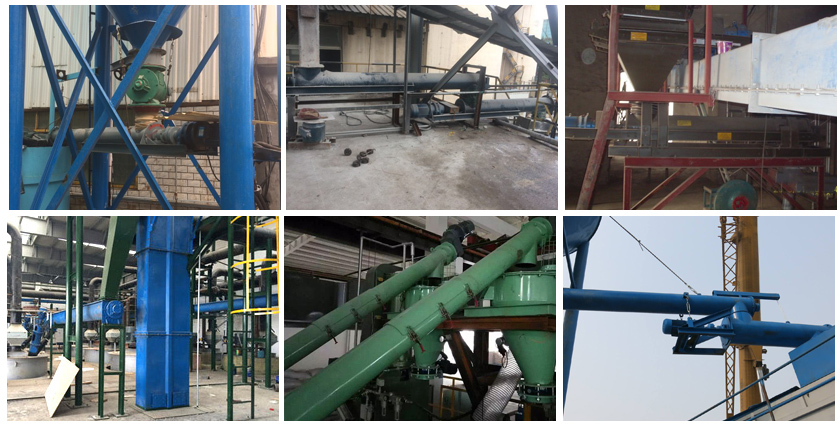

Customer site
