Small Auger Conveyor
Small Auger Conveyor
  • Video Presentation
  • Technical parameters

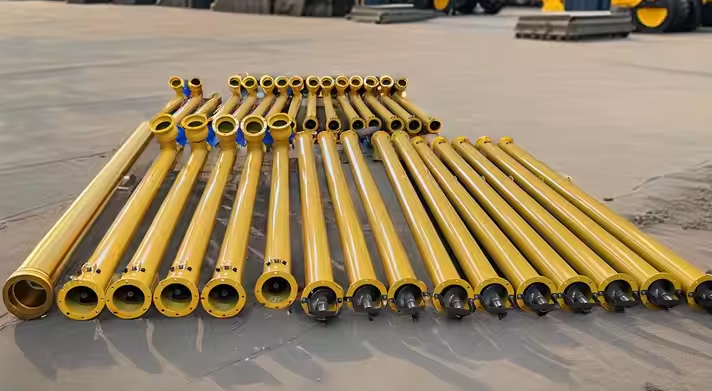

Small Auger Conveyor

It is specially designed for small output users, and is used for uniform and continuous processing of small batches of powder, granules and small block materials.

Diameter: 114mm, 159mm, 160mm, 250mm, 315mm

Delivery capacity: 3-37 cubic/hour

Conveying length: 5-60 meters

Material: carbon steel, stainless steel

What is Small Auger Conveyor?

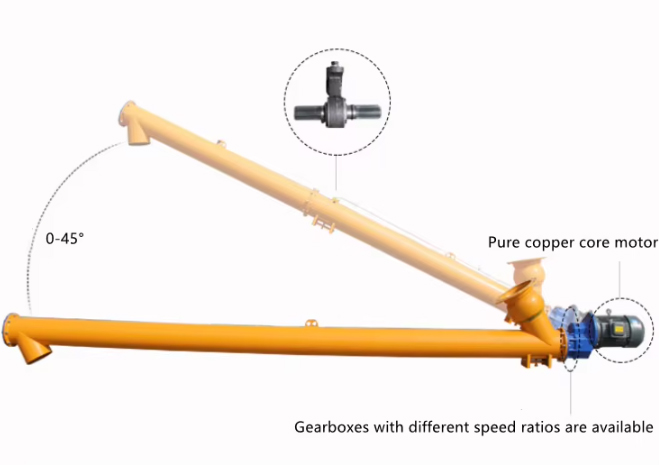

Small Auger Conveyor is specially designed for users with small output, directly including 114mm, 159mm, 160mm, 200mm, the conveying capacity ranges from 3-35 cubic meters per hour, and the length can reach 20 meters, suitable for conveying powder in horizontal, inclined or vertical state, For granular and small block materials, carbon steel or stainless steel can be selected according to the nature of the conveyed materials.

Small Auger Conveyor video

Small Auger Conveyor Classification

model LS114 LS159 LS160 U200
diameter 114mm 159mm 160mm 200mm
Conveying capacity 3 cubic / hour 5 cubic / hour 8 cubic / hour 9 cubic / hour
length 5m 10m 15m 20m

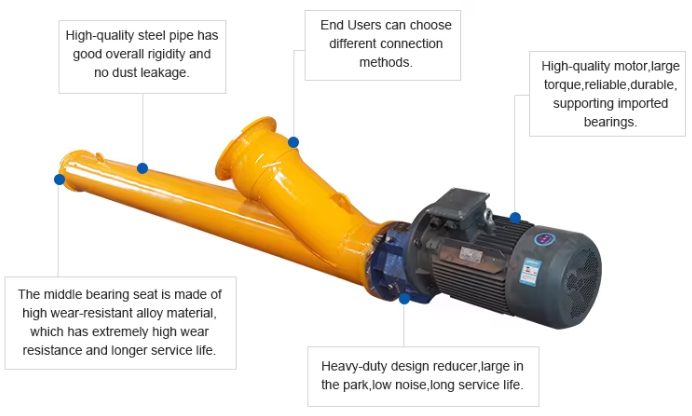

Small Auger Conveyor Features

1. The whole machine is small in size, compact in size and small in floor space.

2. The pipe diameter is 114mm, 159mm, 160mm, etc., the conveying length can reach 20 meters, and the conveying capacity can reach 9 cubic meters per hour.

3. Sealed transportation can effectively reduce environmental pollution and improve the working environment.

4. The entire feeder may be made of stainless steel, which is resistant to acid and alkali corrosion, not easy to rust, and clean and hygienic.

How does the Small Auger Conveyor work?

The Small Auger Conveyor uses a rotating screw to push the conveyed material along the fixed casing to carry out the conveying work. The head and tail bearings are moved outside the casing, and the suspension bearing adopts a sliding bearing with a dust-proof sealing device. The movement of the bearing depends on the thrust of the material moving forward behind. Therefore, the transportation of materials in the conveyor is a kind of sliding movement.

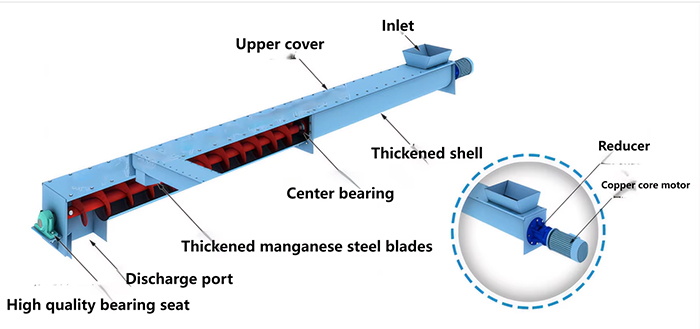

Small Auger Conveyor Structure

The body of Small Auger Conveyor consists of head bearing, tail bearing, suspension bearing, screw, casing, cover plate and base, etc. The driving device is composed of motor, reducer, coupling and base.

Head bearing: used to support the head of the screw conveyor and bear the radial and axial loads of the conveyor.

Tail bearing: located at the tail of the conveyor, supports the tail of the conveyor and helps maintain the stability of the screw conveyor.

Suspension bearing: used to support part of the weight of the middle section of the screw conveyor, reduce the load on the screw, and maintain the normal operation of the screw.

Screw: It is the main conveying component of the screw conveyor, responsible for conveying materials along the axis of the conveyor.

Casing: used to fix and protect the screw, and at the same time form a material conveying channel to prevent material from overflowing.

Cover: located on the upper or side of the casing, used to close the conveyor to prevent material from overflowing or dust from flying.

Base: Supports the structure of the entire screw conveyor, fixes the conveyor to the ground, and has stability and load-bearing capacity.

Motor: As a driving force source, it provides power to the screw conveyor, drives the screw to rotate, and realizes the conveying of materials.

Small Auger Conveyor Application

Small screw conveyors play an important role in many industries that need to convey powdered or granular materials, improving production efficiency, mainly including but not limited to the following fields:

Food processing industry: Commonly used to convey powdered or granular food raw materials, such as flour, powdered sugar, oatmeal, etc., as well as packaging and packaging materials.

Chemical industry: Can be used to convey chemical raw materials, powders, granules, pigments, additives and other materials, such as fertilizers, plastic granules, etc.

Pharmaceutical industry: Usually used to convey pharmaceutical raw materials, granules, powders, etc. to ensure the smooth progress of the production process.

Building materials industry: Used to convey powdered or granular materials such as cement, sand, lime, and fly ash.

Agricultural field: Used to convey agricultural raw materials such as feed, seeds, and fertilizers.

Small Auger Conveyor Manufacturers

Dahan Screw Conveyor is committed to providing high-quality and efficient conveying solutions for various industries to meet the different conveying needs of customers. We can customize various specifications of screw conveyors according to your needs to meet the specific application needs of customers. Our screw conveyors are widely used in food processing, chemical, pharmaceutical, building materials and other industries, and are well received by customers. If you are looking for a reliable small screw conveyor supplier, please contact us, we will wholeheartedly provide you with customized conveying solutions.
