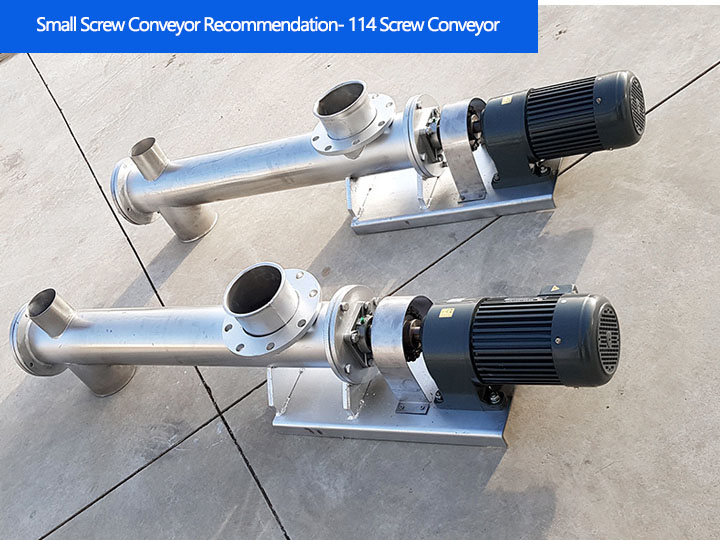

The Small Screw Conveyor equipment means that the diameter of the spiral tube is 114mm, so the diameter is determined as 114 Screw Conveyor, and the length is determined according to the user's conveying distance, and there is no fixed length model. 114 Screw Conveyor is a Small Screw Conveyor designed for users with small output, so the price is relatively cheaper. The following editor will give you a specific introduction based on the output and price of 114 Screw Conveyor.
Yield = Length + Material
For materials that are easy to convey, such as: powdery and granular materials such as fly ash and stones, the conveying capacity of the 114 Screw Conveyor within five meters is generally 1m³/h (equipped with a 0.75-1.1kw motor, a 0-type reducer, The speed is 84-130, and the speed ratio is 17-11). For materials that are difficult to convey, such as kitchen waste, sludge and other viscous winding materials, the phenomenon of winding blades or sticking to the pipe wall will generally occur. Although there is no clear output data, the conveying volume will be relatively reduced. For the same type of screw conveyor, the longer the conveying length, the slower its conveying speed per hour, and the lower its conveying output.
The conveying length of the 114 Screw Conveyor is affected by the angle. There are three kinds of angles: vertical, horizontal, and inclined. The vertical conveying angle only supports a conveying length (height) of 5 meters; the horizontal and inclined angles can reach a single conveying distance of 10 meters. After the combination of sections, it can carry out material transportation with a distance of hundreds of meters.
price = length + material
The price of the 114 Screw Conveyor produced by our company is unified at $700.00/set for carbon steel with a pipe length of less than 5 meters; the unified price for stainless steel is $1000.00/set. The 114 Screw Conveyor above 5 meters needs to be quoted after the technician calculates the price. You can click on the online customer service or make a call to make an inquiry.

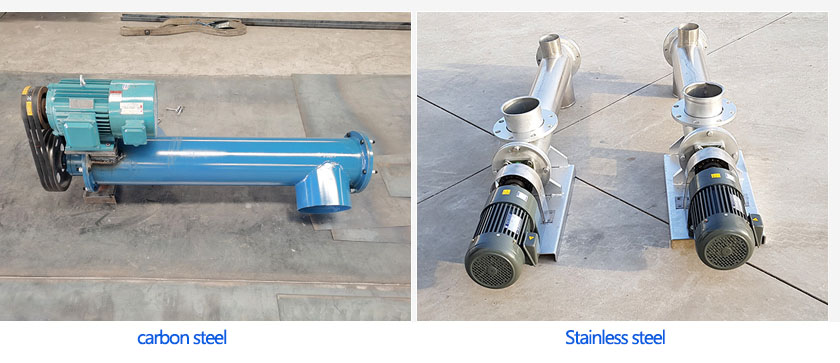

The carbon steel 114 Screw Conveyor produced by Dahan is wear-resistant, durable and cheap; the stainless steel 114 Screw Conveyor is corrosion-resistant, heat-insulating, clean and hygienic. Different materials have different prices and are used for different material transportation. If you have any doubts about the choice of materials, Dahan can recommend materials for you according to your material properties.
