Small Grain Suction Machine is compact, lightweight, and easily disassembled and transported. It's ideal for warehouses, granaries, farms, and other locations where space is limited or frequent movement is required. It can quickly suck up and deliver piles of grain, feed, and pellets to designated locations, meeting the needs of small-batch operations. Equipped with a variety of drive options, including a small motor, motor, and diesel, it offers low energy consumption and simple operation, allowing a single person to complete loading and unloading.
Small Grain Suction Machine focuses on flexibly adapting to the needs of small-volume grain transportation. It offers multiple options for key configurations, including hose diameters of 100mm, 120mm, and 159mm, which can be flexibly matched according to grain particle size and transportation efficiency requirements. The machine length can be customized from 3 to 15 meters, adapting to narrow or variable-distance transportation scenarios such as fields and warehouses. The delivery capacity is divided into four levels: 2 tons, 6-7 tons, 8-10 tons, and 18-20 tons, respectively, to meet the small-batch grain transportation needs of different sizes, including farming households, small grain stations, and individual processing plants.

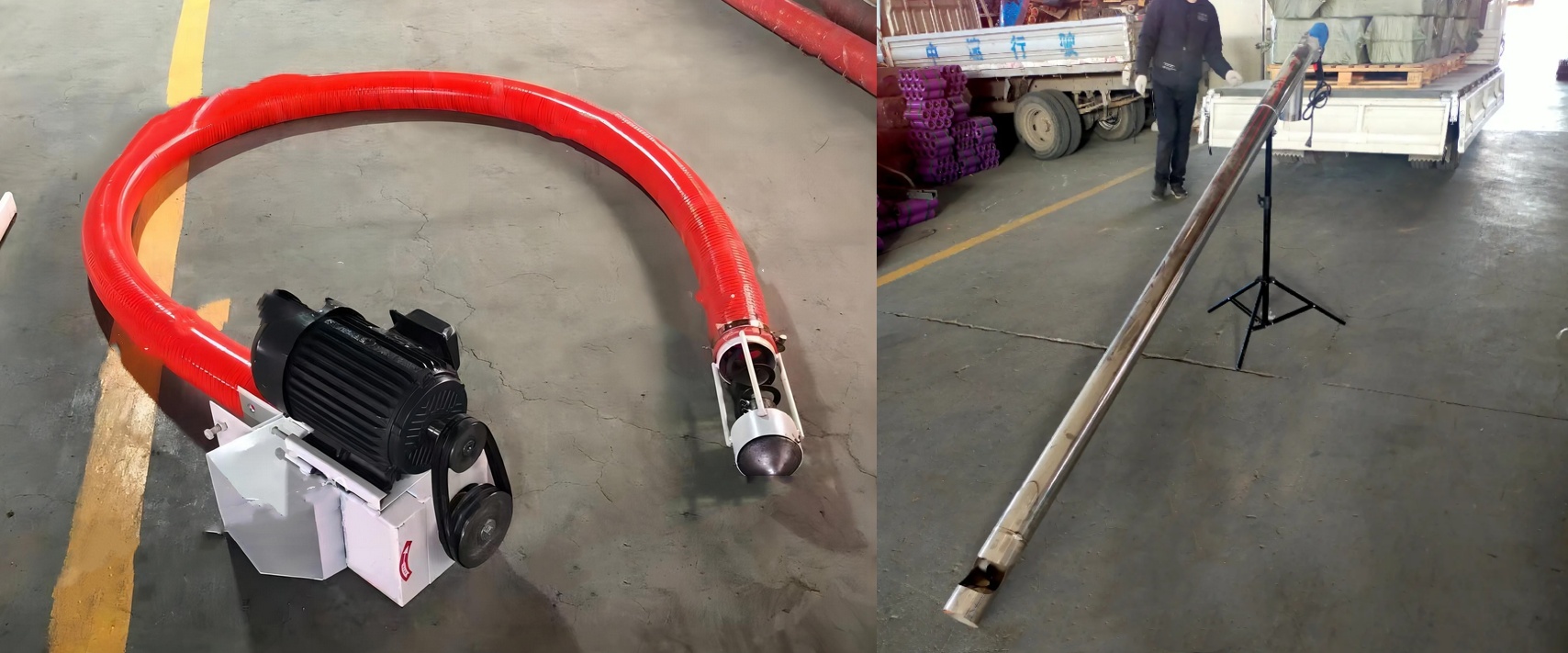

Based on our customers' transfer needs, we offer two types of small grain suction machines: hose and stainless steel. The hose type utilizes a flexible hose, offering portability and cost-effectiveness. The stainless steel type is corrosion-resistant and easy to clean, making it suitable for industries such as food and pharmaceuticals.
Hose-Type Small Grain Suction Machine:Its main body is made of a cowhide hose, equipped with a coil spring or pneumatic conveying mechanism. A motor-driven coil spring rotates, causing the material to rise along the spiral angle, or conveyed using negative pressure from a fan. This highly flexible hose can be bent and steered, supporting multi-directional conveying. It is also highly portable and can be operated by a single person.
Stainless Steel Small Grain Suction Machine:The core components are made of stainless steel, with a variety of suction port sizes available. It features adaptive bucket wall technology and multiple anti-clogging devices. It offers strong corrosion resistance and resistance to moisture and wear, making it ideal for clean production environments. It also offers high conveying efficiency, reduces labor costs, and is suitable for a variety of material forms.
The Small Grain Suction Machine combines portability, low energy consumption, and strong adaptability. It supports quick disassembly and movement, easily handling operations in confined spaces, saving time and effort, and is an ideal choice for small-scale material handling!

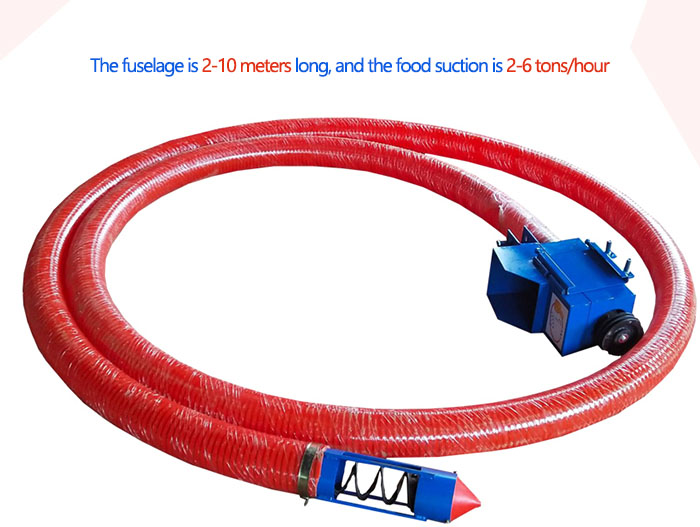

Small model design, the length of the machine is 5-10 meters, it can pump 2-6 tons of grain per hour, and the weight of the machine is about 60 kg.
It can be transported by suction, pressure and mixed with suction and pressure, and can also be transported horizontally, inclined and vertically.
Wear-resistant rubber steel wire tube, the thickness is greater than 6mm, durable and wear-resistant, the tube can be bent, and the length can be customized.
It can be used as a single unit, or combined with multiple units, or form a conveying system with other equipment to meet different function requirements.
The Small Grain Suction Machine relies on the principle of negative pressure suction to transport grain. It operates in concert with a motor, suction hose, separator drum, and discharge port. During operation, the motor drives the fan to rotate at high speed, creating a negative pressure area at the inlet of the suction hose. This pressure differential draws grain from containers such as grain bins and bags into the hose. Once the grain enters the separator drum with the airflow, the expanded internal space and the sudden drop in airflow speed cause the grain to separate from the airflow due to gravity and fall into the discharge port below for discharge.
The Small Grain Suction Machine primarily consists of a power source, conveying device, separation device, and conveying pipeline. It conveys materials via spiral or airflow, boasting a compact structure and easy mobility, making it suitable for diverse applications.
Small Grain Suction Machine is mainly composed of beef tendon tube, motor, grain inlet, coil spring and other parts.
Grain inlet: Conical design is adopted, which is convenient for Jinliang mouth to enter the interior of the material, and the material is fed quickly.
Motor: pure copper motor, can be equipped with 220v and 380v according to customer requirements.
Spiral: It is fixed on the seamless thickened steel pipe with U-shaped wire, which is durable and not easy to damage.
Conveying Pipeline:It utilizes stainless steel pipes or hoses with connectors designed for easy assembly and disassembly. It supports horizontal, inclined, and vertical conveying in various directions, meeting the needs of various scenarios.
| Model No. |
Length (Meters) |
Pipe diameter |
Loading Capacity (t/h) |
Motor phase-power (kw) |
Installation | Structure | Conveying height |
| RLS100 | 4 meter | 100mm | 5—8 | Single phase-3kw | Vehicle mounted | Steel screw blade inside | Depends on case |
| 5 meter | 100mm | 5—8 | Single phase-3kw | Vehicle mounted | Steel screw blade inside | ||
| 6 meter | 100mm | 5—8 | Single phase-3kw | Vehicle mounted | Steel screw blade inside | ||
| 8 meter | 100mm | 5—8 | Single phase-3kw | Vehicle mounted | Steel screw blade inside | ||
| (Customized) | |||||||
| RLS120 | 4 meter | 120mm | 10—15 | Three phase-4KW | Vehicle mounted | Steel screw blade inside | Depends on case |
| 5 meter | 120mm | 10—15 | Three phase-4KW | Vehicle mounted | Steel screw blade inside | ||
| 6 meter | 120mm | 10—15 | Three phase-4KW | Vehicle mounted | Steel screw blade inside | ||
| 8 meter | 120mm | 10—15 | Three phase-4KW | Vehicle mounted | Steel screw blade inside | ||
| (Customized) | |||||||
| RLS-160 | 4 meter | 160mm | 10—15 | Three phase-5KW | Vehicle mounted | Steel screw blade inside | Depends on case |
| 5 meter | |||||||
| 6 meter | |||||||
| 8 meter | |||||||
| (Customized) | |||||||
| Model | Length(m) | Diameter(mm) | Rated voltage(v) | Matching power(kw) | weight(kg) |
| stainless steel | 1.5 | 100 | 220V | 2KW | 10-20 |
| 2 | 100 | 220V | 2KW | 10-20 | |
| 2.5 | 100 | 220V | 2KW | 10-20 | |
| 3 | 100 | 220V | 2KW | 10-20 | |
| 3.5 | 100 | 220V | 2KW | 10-20 | |
| 4 | 100 | 220V | 2KW | 10-20 |

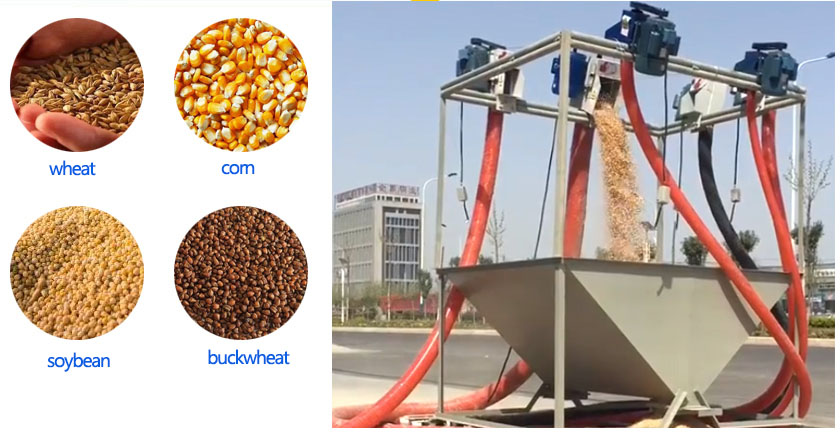

Small Grain Suction Machine's core applications focus on conveying, unloading, and bulk grain loading. It easily adapts to short-distance grain transportation after harvest in farmers' fields, inter-warehouse transfers at small grain depots, and raw material unloading and finished product loading at individual processing plants. It effectively replaces traditional manual handling and significantly improves the efficiency of small-volume grain transportation. Its compatibility with a wide range of materials allows it to accurately transport common crop grains such as wheat, corn, soybeans, buckwheat, rice, and sorghum, meeting the diverse needs of farmers and small grain companies in different regions.
From farmers' easy grain transportation, to food factory hygienic transportation, to livestock farm feed transfer, we can customize flexible hose or stainless steel models to match pipe diameters and lengths, quickly solving various challenges and improving costs and efficiency.
Grain Transportation for Farmers: In the past, farmers relied entirely on manual labor to load and stack grain after harvest, resulting in extremely low efficiency. Considering the limited space and the need for frequent equipment movement, a customer customized a small, flexible hose-type grain suction machine. The pipe has a diameter of 100mm, a length of 6 meters, a 2.2kW motor, and is compatible with 220V household voltage. This machine is lightweight and easy to carry by one person, and the flexible hose makes it easy to handle, whether loading grain from a grain bin onto a truck or stacking it within the warehouse.
Food Factory Transportation: Mainly producing corn flakes, the raw material is large quantities of corn kernels, placing stringent demands on hygiene and efficient transportation. The factory customized a small stainless steel grain conveyor. Key components, such as the conveyor head and drive shaft, are all made of 304 stainless steel. Equipped with a three-stage suction port and multiple anti-blocking devices, the pipe has a diameter of 159mm and a length of 10 meters, with a conveying capacity of 18 tons per hour.
Feed transfer on the farm: Due to the complex layout and limited space in the breeding area, he customized a small hose-type grain conveyor. This conveyor has a pipe diameter of 100mm and a length of 12 meters. It features pneumatic conveying and can be operated by remote control, allowing for flexible adjustment of conveying direction and start and stop. Within the farm, the conveyor can easily move between the feed storage area and the various breeding sheds, allowing a single person to quickly complete feed transfers, eliminating the secondary contamination and waste of feed caused by traditional handling methods.
The price of a small grain suction machine varies depending on the type and specifications, with custom models starting as low as $250. Basic, hose-type small grain suction machines, commonly used by farmers, have small diameters, short lengths, and relatively simple configurations. These machines are priced in the lower hundreds of dollars, meeting simple daily grain transfer needs. Higher requirements for conveying capacity and material quality, such as custom stainless steel models for food factories, can increase in price, potentially reaching thousands of dollars, due to the high-quality materials, complex manufacturing processes, and design requirements that meet hygienic standards.
We have specialized in the research, development, and manufacturing of small grain suction machines for many years. With a professional design and production team, we offer custom services tailored to your needs. Whether it's a short-hose, small-diameter model suitable for farmers' tight spaces, or a stainless steel, high-capacity machine designed to meet the hygienic and high-speed requirements of food factories, we can precisely craft it. From design and material selection to processing and assembly, we rigorously control every step of the way to ensure the superior performance and quality of each small grain suction machine. We provide high-speed, durable small grain suction machines at reasonable prices and with excellent service to individual farmers, grain producers, agricultural cooperatives, livestock farms, and various processing plants.
The Small Grain Suction Machine is compact and easy to operate, requiring no complex installation. A single operator can easily handle the short-distance grain transportation needs of households and small grain depots. Compared to traditional manual handling, it not only significantly reduces labor consumption but also prevents grain spillage and loss. Furthermore, its filtration reduces dust pollution, balancing practicality and environmental protection. It is a high-quality device that improves the efficiency of small-scale grain transfers and reduces workload.
