Features of Sludge Shaftless Screw Conveyor

Shaftless Screw Conveyor is often used for conveying sludge, because Shaftless Screw Conveyor has great advantages in conveying materials with high water content, stickiness and entanglement, and sludge is just suitable for conveying materials of Shaftless Screw Conveyor. So what are the features of the Sludge Shaftless Screw Conveyor?

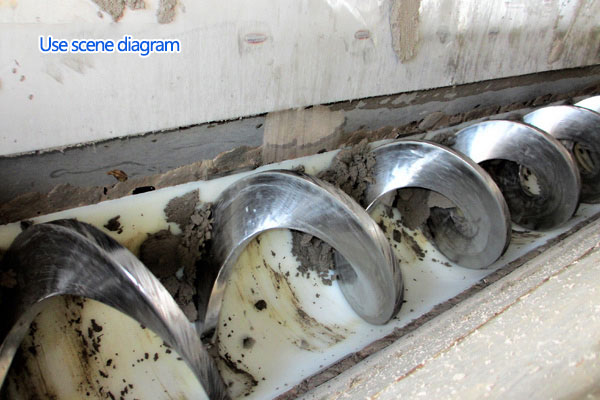

1. Anti-winding, strong anti-adhesive, no material blocking

Sludge is a mixed sludge of sedimentation sludge, sand and gravel, waste water, etc. It contains more impurities and is highly viscous. If ordinary Screw Conveyor is used to deliver sludge, the sludge may be entangled and stuck to the spiral blades, The Sludge Shaftless Screw Conveyor just solves the problem of the shafted Screw Conveyor for conveying sludge. The Sludge Shaftless Screw Conveyor adopts a special design without a central shaft, so it has special advantages in conveying belt-shaped, viscous materials, and easily entangled materials. Sex, and there will be no clogging when transporting sludge.

2. Fully enclosed structure, no leakage and no pollution

Sludge Shaftless Screw Conveyor adopts a fully enclosed structure, the spiral surface is easy to clean, and the sludge will not leak during sludge transportation. It also has environmental sanitation. Protection kills two birds with one stone.

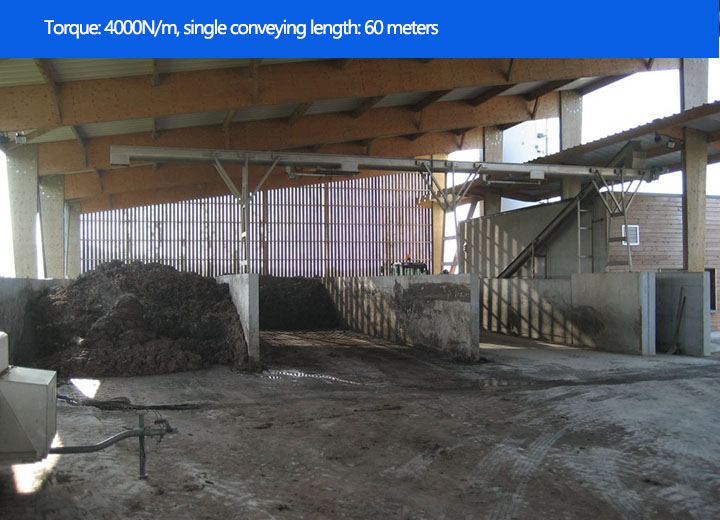

3. Large torque without center shaft, long conveying distance

Sludge has a high water content, so there are certain requirements for the carrying capacity of the conveyor, and there are corresponding requirements for the conveying volume. The torque of the Sludge Shaftless Screw Conveyor can reach 4000N/m, and the conveying length of a single machine can reach 60 meters. The conveying capacity is the same diameter as the shaft 1.5 times that of the screw conveyor.

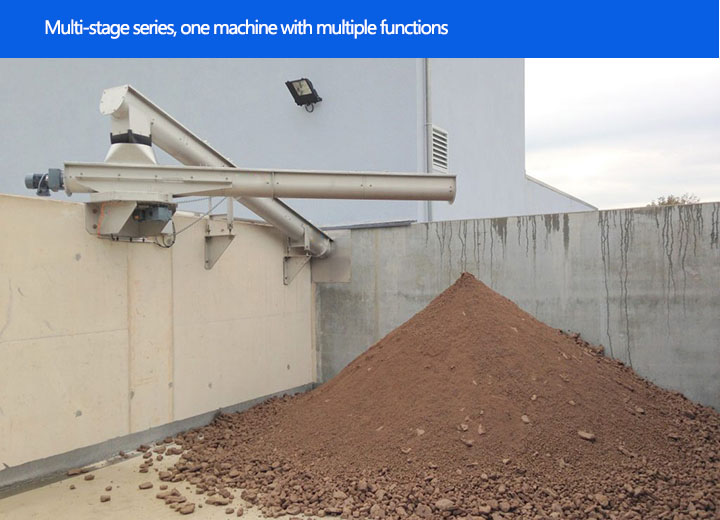

4. Multi-stage series connection, one machine with multiple functions

Sludge conveying can be installed in series in multiple stages, conveying materials at super-long intervals; the amount of sludge is generally relatively large, such as the mobile Sludge Shaftless Screw Conveyor produced by Dahan manufacturer, which can work mobile and use one machine for multiple purposes. Both bottom discharge and top discharge can be used to reduce the limitation of the working environment of Sludge Shaftless Screw Conveyor and save a lot of time for sludge transportation.

In short, Sludge Shaftless Screw Conveyor has an absolute advantage in conveying sludge, which is a viscous, easily entangled, and semi-fluid material. It has a large conveying capacity, no material blocking, long conveying distance, and elastic conveying. If the customer is a sticky, entangled material like sludge, you can choose the Sludge Shaftless Screw Conveyor.
