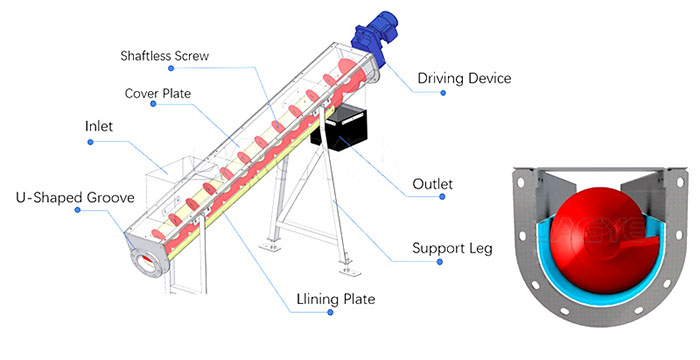

U-shaped Shaftless Screw Conveyor is a conveyor with a screw as the transmission element. It is characterized by no central shaft and no oxidation, heat and wear during the conveying process. Therefore, it is widely used in chemical industry, metallurgy, mining, building materials and other industries, especially suitable for conveying volatile, agglomerated and viscous materials.
1. Shaftless design, no lubrication required, reducing maintenance costs and energy consumption.
2. The U-shaped structure makes the material have no dead angle during the conveying process, ensuring the continuity and stability of conveying.
3. The transmission mechanism adopts the direct drive method, which greatly reduces energy consumption and noise level, and improves the transmission efficiency.
4. Two conveying modes can be realized: horizontal and inclined, adapting to different working environments and materials.
5. It can be customized according to user requirements to meet different material conveying needs.

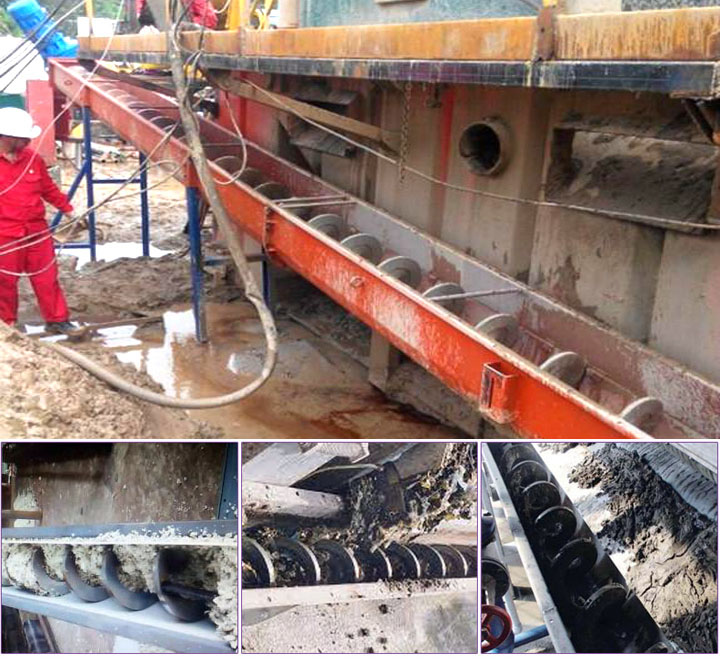

1. Chemical industry: It is often used to transport granular, powdery and viscous materials, such as chemical fertilizers, chlorine water, etc.
2. Metallurgical industry: mainly used to transport concentrate, slag, dust and other materials.
3. Mining industry: mainly used to transport coal, iron, copper and other mining materials.
4. Building materials industry: mainly used for conveying cement, lime, stone powder and other materials.
The principle of U-shaped Shaftless Screw Conveyor is to use the rotation of the screw blade to push or lift the material into the conveying pipe, and then convey the material to the destination through the conveying pipe. During the conveying process, momentum is transferred between the material and the screw blades of the conveyor through frictional and gravitational interactions.
1. Conveying distance: usually 10~60 meters.
2. Conveying capacity: generally 0.2~350m³/h.
3. Conveying inclination: generally 0°~45°.
4. Conveying height: generally 2~30 meters.
5. Conveying granularity: can be customized according to user requirements.
In conclusion, the U-shaped Shaftless Screw Conveyor is a conveyor with modern features, and its shaftless, U-shaped structure and direct drive method make it a leading conveyor at present. In the field of industrial production, it is widely used in the transportation and processing of various materials, and has become an important part of the modern industrial production process.
