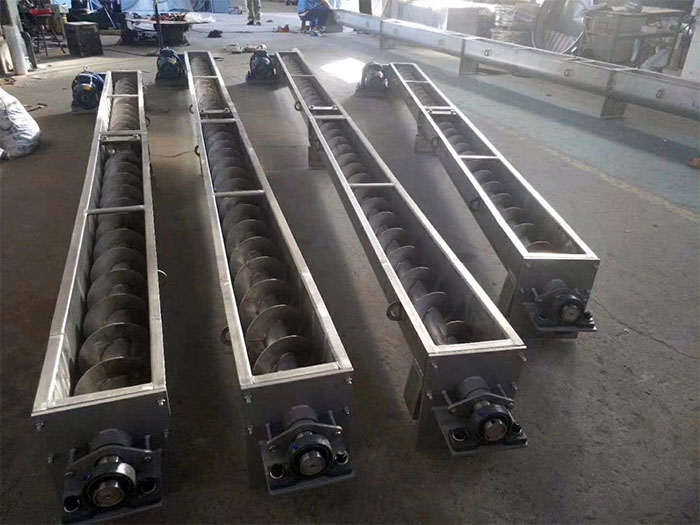

Stainless Steel U-shaped Screw Conveyor is a reliable material conveying equipment, which uses screw blades and screw shafts to push materials to be transported in the pipeline. Stainless Steel U-shaped Screw Conveyor is a variant of it. The main material is stainless steel, which makes it corrosion-resistant, easy to clean, hygienic and safe. It is widely used in food, chemical, pharmaceutical and other industries.
1. Compact structure, small footprint, can be designed as multi-layer conveying, saving production space.
2. It is suitable for industries with high quality requirements, such as food, medicine and other industries, with high precision, hygiene and safety.
3. It can be transported in two directions, with a large transport volume and a wide range, and can transport various materials such as powder, granule, and sheet.
4. Stable operation, low noise and long service life.

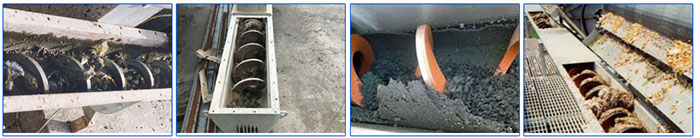

1. Food industry: It is suitable for conveying materials such as flour milling, granulation, and food additives.
2. Chemical industry: suitable for conveying petroleum, chemical raw materials, fertilizers, pigments and other materials.
3. Pharmaceutical industry: suitable for conveying medicine powder, capsules, tablets and other materials.
In addition, Stainless Steel U-shaped Screw Conveyor is also widely used in other industries, such as papermaking, electric power, building materials and other industries.
The models of Stainless Steel U-shaped Screw Conveyor are different according to different material conveying requirements and places of use, and can be customized according to the process flow. Among them, the models are classified according to the outer diameter of the fuselage and the processing accuracy. There are 159mm, 219mm, 273mm, 323mm and other models, which can also be customized according to customer needs.
| Specification | Main technical performance | drive unit | drive unit | Weight (kg) | |||
| diameter | length (m) | Output (cement) t/h | speed(min) | reducer | electric motor | ||
| model | speed ratio | Power(kw) | |||||
| U 200 | -10 | 9 | 60 | ZQ250 | 23.34 | 1.1 | 726 |
| U 200 | -20 | 9 | 60 | ZQ250 | 23.34 | 1.5 | 1258 |
| U 250 | -10 | 15.6 | 60 | ZQ250 | 23.34 | 2.2 | 960 |
| U 250 | -20 | 15.6 | 60 | ZQ250 | 23.34 | 3 | 1750 |
| U 300 | -10 | 21.2 | 60 | ZQ350 | 23.34 | 3 | 1373 |
| U 300 | -20 | 21.2 | 60 | ZQ350 | 23.34 | 4 | 2346 |
| U 400 | -10 | 51 | 60 | ZQ400 | 23.34 | 5.5 | 1911 |
| U 400 | -20 | 51 | 60 | ZQ500 | 23.34 | 11 | 2049 |
| U 500 | -10 | 87.5 | 60 | ZQ400 | 23.34 | 7.5 | 2381 |
| U 500 | -20 | 87.5 | 60 | ZQ650 | 23.34 | 18.5 | 5389 |
| U 600 | -10 | 134.2 | 45 | ZQ750 | 23.34 | 22 | 3880 |
| U 600 | -10 | 134.2 | 45 | ZQ850 | 23.34 | 55 | 7090 |
In short, the Stainless Steel U-shaped Screw Conveyor is a material conveying equipment widely used in various industries. It has the characteristics of compact structure, corrosion resistance, and easy cleaning, and can meet the requirements of different industries for conveying equipment.
