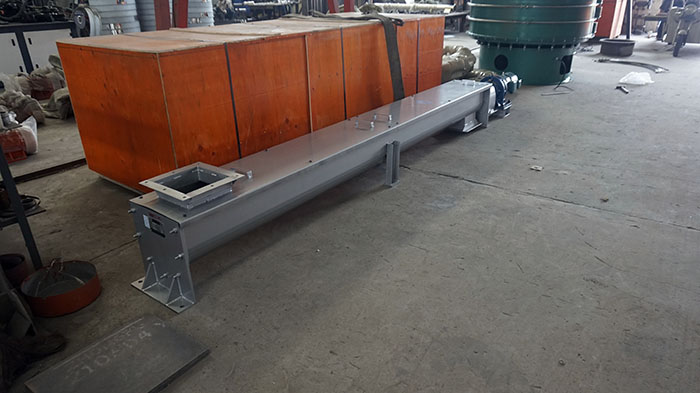

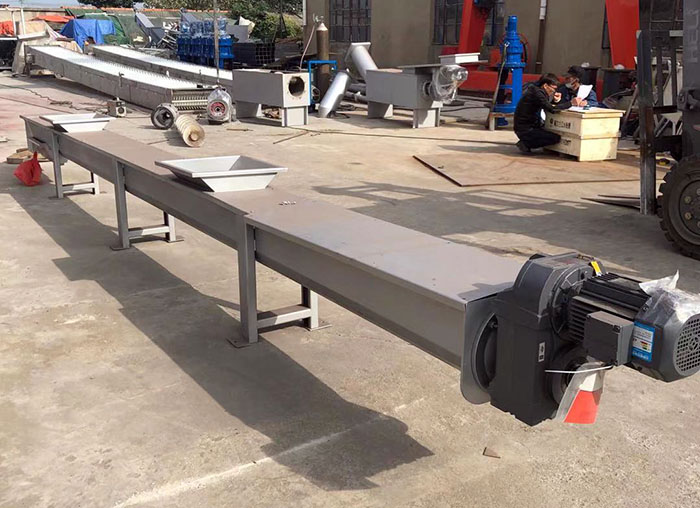

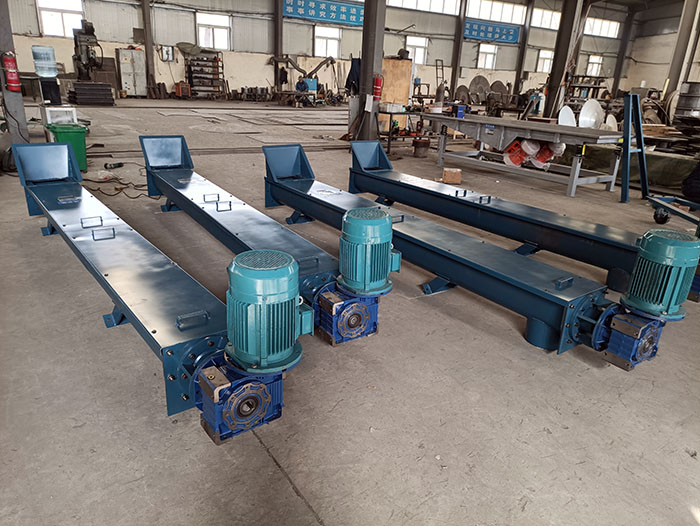

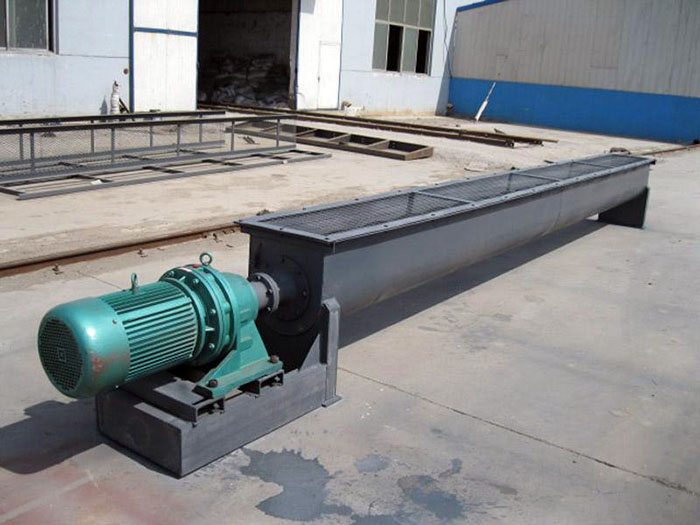

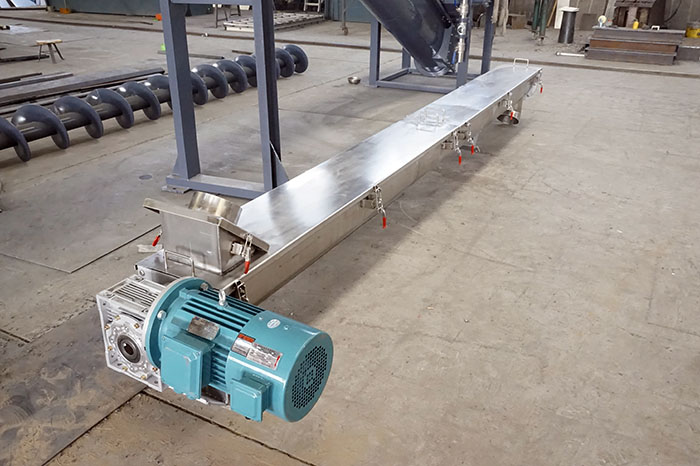

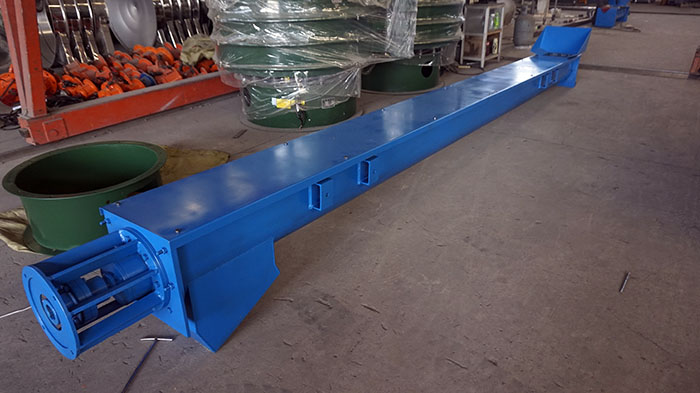

U-Shaped Screw Conveyor is a commonly used conveying equipment, which can be widely used in bulk material conveying in cement, fertilizer, coal, food, grain and other industries. The conveying capacity of U-Shaped Screw Conveyor refers to the mass of material conveyed per unit time, usually expressed in tons/hour (t/h). The conveying capacity of U-Shaped Screw Conveyor depends on many factors, including screw diameter, screw speed, conveying angle, material type, material density, etc. The following will specifically explain the different conveying volumes and conveying lengths of U-Shaped Screw Conveyor models U200, U250, U300, U400, U500, and U600.
The screw diameter of the U200 Screw Conveyor is 200mm, the screw speed is 50r/min, the conveying angle is 0-45 degrees, and the material type is powdery or small granular bulk material. According to the density of different materials, the conveying capacity is between 5-10t/h, and the conveying length does not exceed 20m.
The screw diameter of the U250 Screw Conveyor is 250mm, the screw speed is 110r/min, the conveying angle is 0-45 degrees, and the material type is powdery or small granular bulk material. According to the density of different materials, its conveying capacity is between 15-30t/h, and the conveying length does not exceed 25m.
The screw diameter of the U300 Screw Conveyor is 300mm, the screw speed is 100r/min, the conveying angle is 0-45 degrees, and the material type is powdery or small granular bulk material. According to the density of different materials, its conveying capacity is between 25-50t/h, and the conveying length does not exceed 30m.
The screw diameter of the U400 Screw Conveyor is 400mm, the screw speed is 90r/min, the conveying angle is 0-45 degrees, and the material type is powdery or small granular bulk material. According to the density of different materials, its conveying capacity is between 50-100t/h, and the conveying length does not exceed 35m.
The screw diameter of U500 Screw Conveyor is 500mm, the screw speed is 80r/min, the conveying angle is 0-45 degrees, and the material type is powdery or small granular bulk material. According to the density of different materials, the conveying capacity is between 100-150t/h, and the conveying length does not exceed 40m.
The screw diameter of the U600 Screw Conveyor is 600mm, the screw speed is 70r/min, the conveying angle is 0-45 degrees, and the material type is powdery or small granular bulk material. According to the density of different materials, its conveying capacity is between 150-200t/h, and the conveying length does not exceed 50m.
In short, the conveying capacity and conveying length of U-Shaped Screw Conveyor are affected by many factors, and different types of conveyors are suitable for different types of materials and conveying distances. In the selection process, it is necessary to comprehensively consider according to the actual situation to ensure the transmission efficiency and economy.
