U-Shaped Screw Conveyor is a kind of screw conveyor. It is called U-Shaped Screw Conveyor because its shape resembles the English letter U. And the production of U-Shaped Screw Conveyor is manufactured in strict accordance with DIN15261-1986 standard, and the design conforms to the professional standard of JB/T7679-2008 "Screw Conveyor". At present, it is widely used in food, chemical industry, building materials, metallurgy, mining, electric power and other departments. Most of the conveyed materials are small granular, powdery and small lump materials.
In order to facilitate everyone's understanding, I will first talk about the common points of the two, and then talk about the advantages of U-Shaped Screw Conveyor. You will know how U-Shaped Screw Conveyor is better than Tubular Screw Conveyor.
1. What they have in common
Both U-Shaped Screw Conveyor and Tubular Screw Conveyor can convey materials horizontally and obliquely, and both are sealed structures to eliminate dust pollution and are environmentally friendly. And the delivery volume is roughly the same, and the two are basically the same from a functional point of view.
There is no difference between the two in terms of function and delivery capacity, but U-Shaped Screw Conveyor is more convenient and faster to operate in terms of appearance. Compared with Tubular Screw Conveyor, I think U-Shaped Screw Conveyor is better in the following aspects.

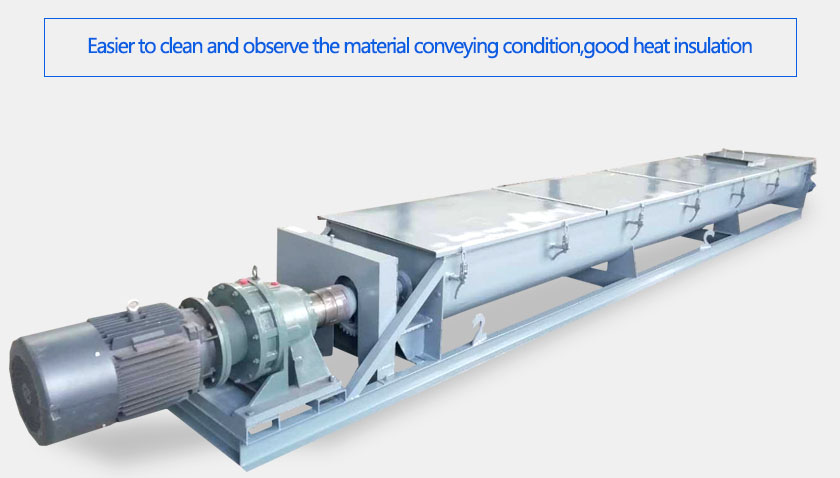

①It is easier to clean and check the blocking situation
Compared with Tubular Screw Conveyor, U-Shaped Screw Conveyor can be fully enclosed or open. It not only eliminates dust pollution, but is also beneficial to environmental protection and easy to clean up afterwards.
②Easy maintenance
Since the U-Shaped Screw Conveyor can check the situation at any time, it is destined that when the U-Shaped Screw Conveyor fails, it can be repaired or replaced in time, while the Tubular Screw Conveyor does not have this advantage.
③Good heat insulation, no need for cooling device
Since the U-Shaped Screw Conveyor can open the cover, when the mechanical blockage generates high temperature, it can dissipate heat in time and does not need an additional cooling device.
The conveying principle of the U-Shaped Screw Conveyor is the same as that of the Tubular Screw Conveyor. The driving device drives the screw shaft to rotate, and the torque generated by the screw shaft rotates to push the material forward, thereby realizing the material conveying.

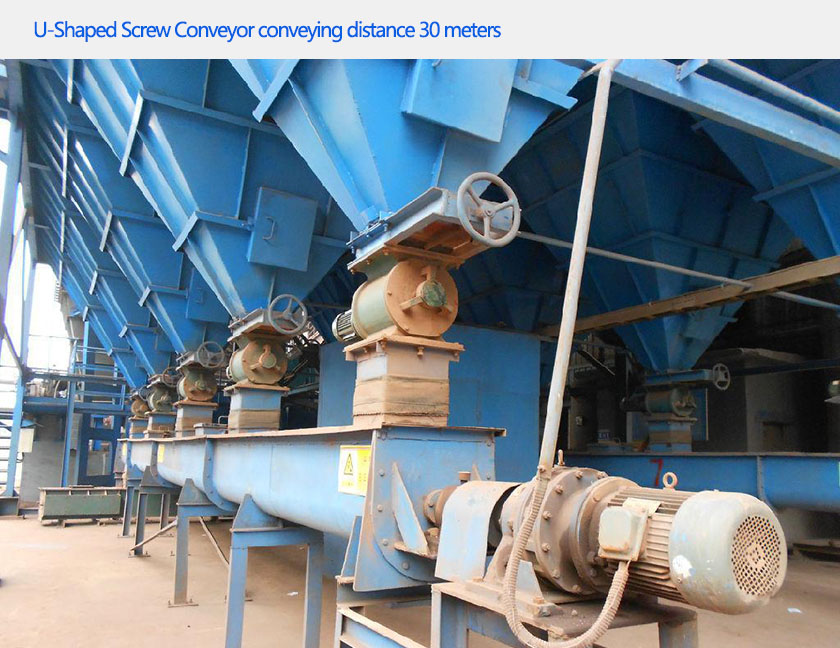

The U-Shaped Screw Conveyor single machine can reach a conveying distance of about 60 meters. If the distance needs to be enhanced, a multi-level soft connection is required. The user can connect as many meters as the user needs.
The maintenance method of U-Shaped Screw Conveyor is the same as that of Tubular Screw Conveyor, and it is easier to operate than Tubular Screw Conveyor. The maintenance method of U-Shaped Screw Conveyor is as follows:
1. Before starting the machine, check whether there is any material left in the U-Shaped Screw Conveyor.
2. Check U-Shaped Screw Conveyor body casing, screw shaft and other components after use.
3. Check the lubrication of the driving device and the tightness of the electronic components
4. Check the wear of the spiral blade
5. Clean the U-Shaped Screw Conveyor in time after use.
