U-Shaped Screw Conveyor Model and Parameters

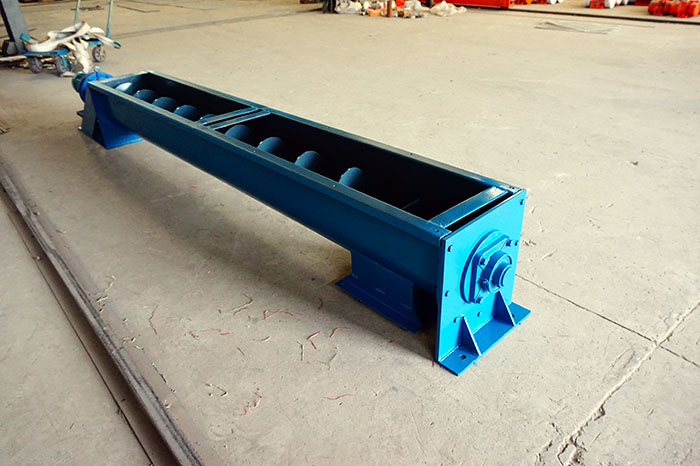

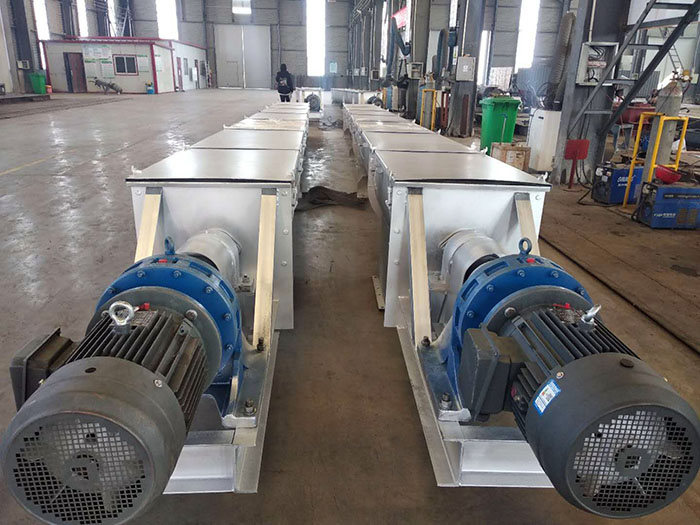

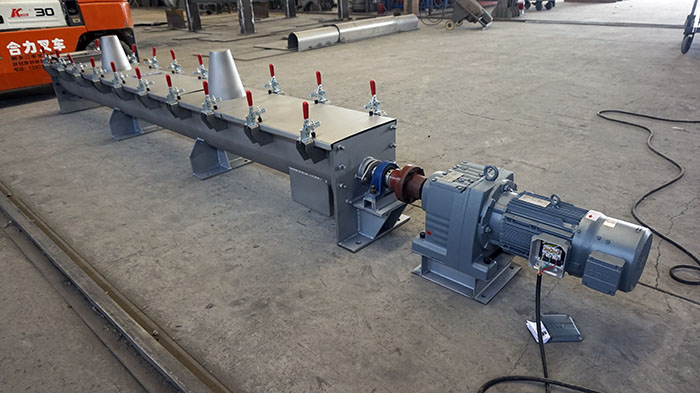

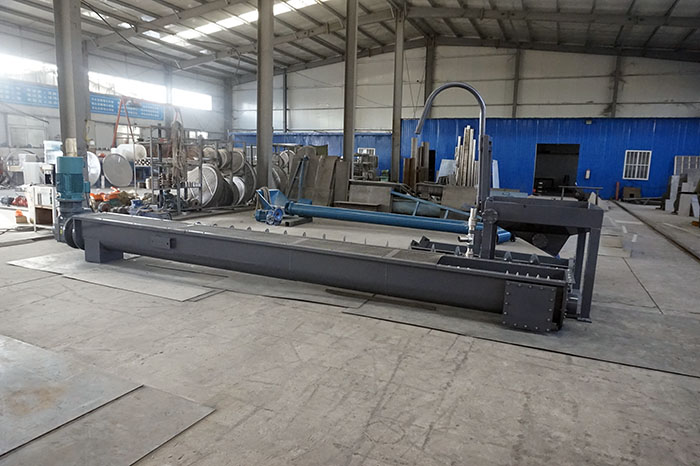

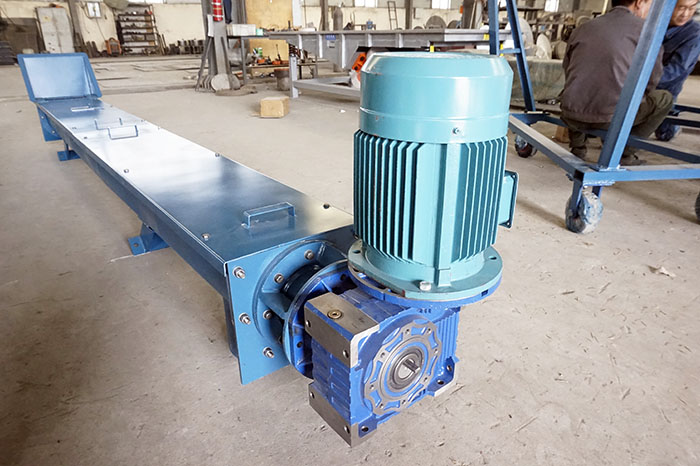

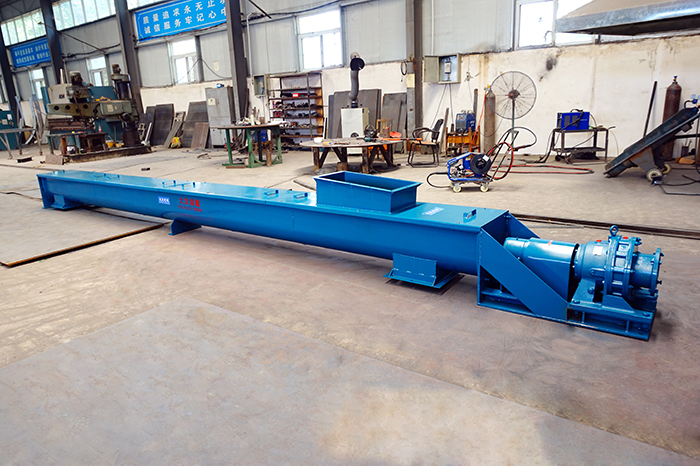

U-Shaped Screw Conveyor is a commonly used conveying equipment, which can convey powdery, granular and block materials from low to high, and can also convey materials from horizontal to oblique or vertical. According to its different models, it can meet the application requirements of different fields.

U-Shaped Screw Conveyor Model

1. U200: The middle diameter of this type of U-Shaped Screw Conveyor is 200mm, suitable for conveying materials with a flow rate of less than 2.5m³/h, and a maximum conveying length of 6m, suitable for powder in chemical, light industry, food and other industries , Transportation of granular materials.

2. U250: The middle diameter of this type of U-Shaped Screw Conveyor is 250mm, which is suitable for conveying materials with a flow rate of less than 6.5m³/h and a maximum conveying length of 9m. It is suitable for particles in building materials, chemical fertilizers, food, chemical industries, etc. Transportation of shape and powder materials.

3. U300: The middle diameter of this type of U-Shaped Screw Conveyor is 300mm, which is suitable for conveying materials with a flow rate of less than 12m³/h and a maximum conveying length of 12m. It is widely used in building materials, chemical fertilizers, food and other industries for granular, Conveying of powdery materials.

4. U400: The middle diameter of this type of U-Shaped Screw Conveyor is 400mm, which is suitable for conveying materials with a flow rate of less than 20m³/h and a maximum conveying length of 15m. It is suitable for granular materials in steel, building materials, metallurgy, and chemical industries. , Transportation of powdery materials.

5. U500: The middle diameter of this type of U-Shaped Screw Conveyor is 500mm, which is suitable for conveying materials with a flow rate of less than 30m³/h and a maximum conveying length of 18m. It is suitable for granular materials in chemical, mining, building materials, food and other industries. , Transportation of powdery materials.

6. U600: The middle diameter of this type of U-Shaped Screw Conveyor is 600mm, which is suitable for conveying materials with a flow rate of less than 50m³/h and a maximum conveying length of 20m. It is suitable for granular materials in chemical, mining, building materials, food and other industries. , Transportation of powdery materials.

U-Shaped Screw Conveyor Parameter

Model | Intermediate Diameter (mm) | Diameter Length (mm) | Pitch (mm) | Rotational Speed (r/min) |

U200 | 200 | 500 | 200 | 120 | 2.5 | 6

U250|250|500|250|120|6.5|9

U300 | 300 | 500~630 | 300 | 90~120 | 12 | 12

U400 | 400 | 820~1000 | 400 | 75~100 | 20 | 15

U500 | 500 | 820~1000 | 500 | 60~90 | 30 | 18

U600 | 600 | 820~1000 | 600 | 45~75 | 50 | 20

The above are the models and parameters of U-Shaped Screw Conveyor. Users can choose the appropriate model according to their actual needs. At the same time, they also need to pay attention to the characteristics and applicable industries of each model. In addition, it is also necessary to pay attention to the parameters of U-Shaped Screw Conveyor such as material, motor power, and conveying speed. The selection of these parameters will directly affect the working efficiency and service life of U-Shaped Screw Conveyor.
