When customers purchase Auger Feeder, in addition to considering whether the screw feeder can achieve the handling capacity of the materials they want to convey, the conveying efficiency and service life of the screw feeder, they will also consider whether the purchased screw feeder can Installed in its production space, then you need to know the size and model of Auger Feeder. The following are specific instructions on Auger Feeder Size and Model:

Dahan Auger Feeder mainly includes GX Auger Feeder, LS Auger Feeder, WLS Auger Feeder and U Auger Feeder.

1. GX Auger Feeder

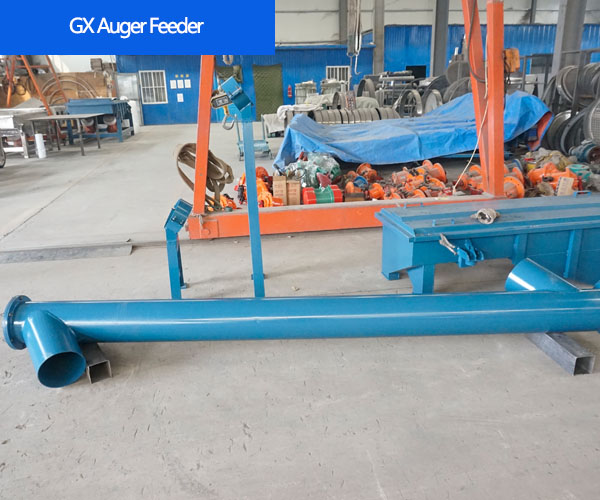

GX Auger Feeder

Its models mainly include: GX150, GX200, GX250, GX300, GX400, GX500, GX600.

GX Auger Feeder is widely used in chemical industry, building materials, metallurgy and other industries. It is suitable for conveying horizontal or inclined powdery and granular materials, and the inclination angle is less than 20 degrees. The advantages of its conveying are that it can load and unload materials at multiple points, has high sealing performance, simple operation and low cost.

The detailed technical parameters are as follows:

Specification		Main technical performance	drive unit	drive unit				weight (kg)
diameter	length （m）	Conveying capacity (cement) t/h	Rotating speed min^-1	reducer		electric motor
diameter	length （m）	Conveying capacity (cement) t/h	Rotating speed min^-1	model	speed ratio	model	power （kw）
GX200	-10	9	60	JZQ250	23.34	Y90S-4	1.1	726
GX200	-20	9	60	JZQ250	23.34	Y90L-4	1.5	1258
GX250	-10	15.6	60	JZQ250	23.34	Y100L₂-4	2.2	960
GX250	-20	15.6	60	JZQ250	23.34	Y100L₁-4	3	1750
GX300	-10	21.2	60	JZQ350	23.34	Y100L₂-4	3	1373
GX300	-20	21.2	60	JZQ350	23.34	Y112M-4	4	2346
GX400	-10	51	60	JZQ400	23.34	Y132S-4	5.5	1911
GX400	-20	51	60	JZQ500	23.34	Y160M-4	11	2049
GX500	-10	87.5	60	JZQ400	23.34	Y132M-4	7.5	2381
GX500	-20	87.5	60	JZQ650	23.34	Y180M-4	18.5	5389
GX600	-10	134.2	45	JZQ750	23.34	Y180L-4	22	3880
GX600	-10	134.2	45	JZQ850	23.34	Y250M-4	55	7090

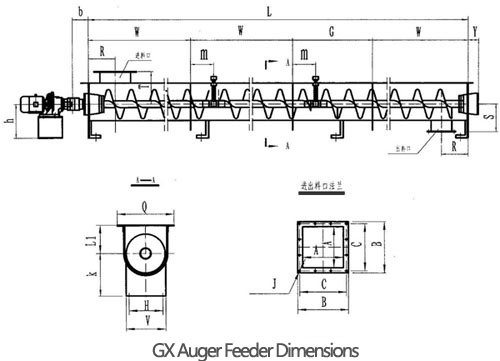

The design drawing of GX Auger Feeder is as follows:

The size table is as follows

model	W	A	B	C	D	N	R	Y	L	K	M	S	P	O	H	V	J	T	G
GX150	2000	170	236	216	10	8	190	190	112	140	100	135	17	270	110	160	16	195	1000、1500、2000
GX200	2500	220	306	272	10	8	220	190	112	180	200	165	25	308	140	200	16	250	1500 2000 2500
GX250	2500	270	356	330	10	8	270	190	140	220		195	28	356	200	260	20	300
GX300	2500	320	428	385	14	8	300	190	214	270		225	28	443	240	320	20	350
GX400	3000	420	528	492	14	8	350	190	224	340	300	280	30	533	320	400	25	430	1500 2000 3000
GX500	3000	528	662	612	17	8	450	190	280	400		340	35	662	400	500	25	490
GX600	3000	628	762	720	17	8	550	190	255	500		430	40	760	500	600	30	560

2. LS Auger Feeder

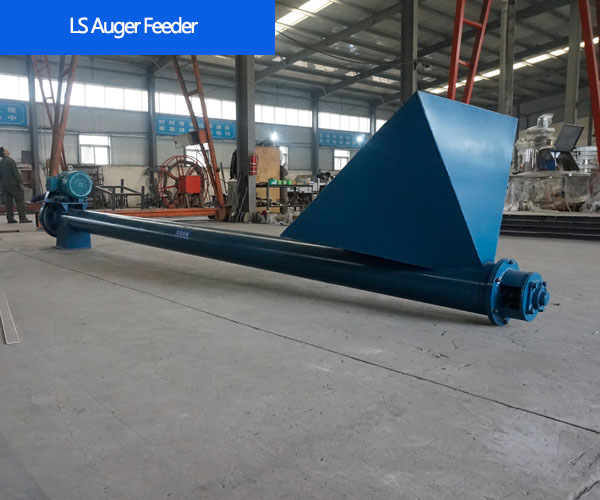

LS Auger Feeder

Model: LS100, LS200, LS250, LS315, LS400, LS500, LS600, etc.

LS-type Auger Feeder is an improved Auger Feeder of GX, mainly used to transport granular and powdery materials, such as: cement, sewage, fertilizer, etc., and the inclination angle does not exceed 15 degrees. Its transportation advantages are large transportation capacity, large bearing capacity, convenient installation and maintenance, and long service life.

The detailed technical parameters are as follows:

LS Auger Feeder outline dimension design drawing is as follows:

The size table is as follows:

model	W	A	B	C	D	N	Q	Y	L	K	R	S	P	O	H	V	J	T	G	L
LS100	2500	100	180	146	10	4	180	190	90	112	180	112	60	178	120	160	14	163	1500 2000 2500	3500- 40000
LS160	2500	160	240	206	10	4	200	190	112	150	200	150	60	270	120	160	14	190
LS200	3000	200	300	256	14	8	225	190	112	180	225	180	60	308	160	200	14	212
LS250	3000	250	350	306	14	8	250	190	140	224	250	224	60	336	200	250	18	240		40000- 80000
LS315	3000	315	425	370	14	8	330	190	214	280	390	250	60	443	300	350	20	340
LS400	3000	400	500	456	14	8	3580	190	224	355	390	280	60	533	320	400	24	384
LS500	3000	500	600	556	14	8	400	190	280	400	400	340	80	662	400	500	24	440	2000 2500 3500	5500- 80000
LS630	3000	630	730	686	14	8	450	190	355	500	450	420	80	763	500	630	24	555
LS800	3000	800	920	868	18	16	550	340	450	630	550	520	80	970	632	800	30	650
LS1000	3000	1000	1120	1068	18	16	650	360	560	710	650	630	80	1190	710	1000	30	760		6000-60000
LS1250	3000	1250	1370	1318	18	16	800	380	710	800	800	760	80	1440	800	1250	30	910		6000-60000

3.WLS Auger Feeder

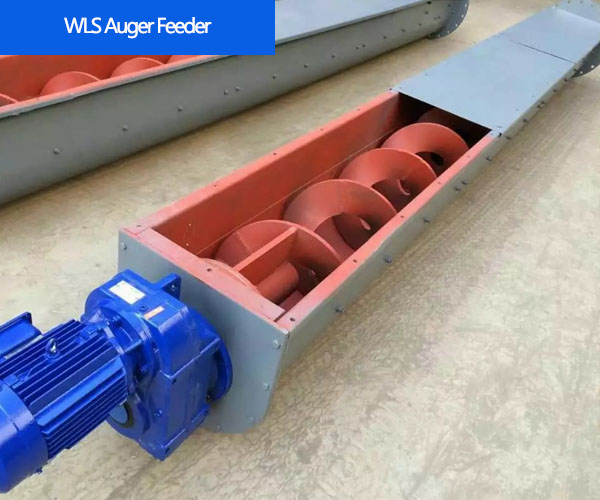

WLS Auger Feeder

Model: WLS100, WLS160, WLS200, WLS250, WLS500, WLS800, WLS1000, WLS1250, etc.

WLS Auger Feeder is mainly used to transport the dirt separated from the grid decontamination, such as: sludge, semi-fluid and other substances. The advantage of its conveying is that the conveying volume is larger, which is 1.5 times that of the LS type with the same diameter, the conveying without bearing is smoother, it can be sealed with a cover, and the pollution is less.

The detailed technical parameters and size chart are as follows:

Model	WLS150	WLS200	WLS250	WLS300	WLS400	WLS500
Spiral diameter(mm)	150	184	237	284	365	470
Outer diameter(mm)	180	219	273	351	402	500
Incline degree(a)	0 °-30 °	0 °-30 °	0 °-30 °	0 °-30 °	0 °-30 °	0 °-30 °
Max Length(m)	12	13	16	18	22	25
Capacity(t/h)	2.4	7	9	13	18	28

Motor	Model	L ≤ 7	Y90L-4	Y100L1-4	Y100L2-4	Y132S-4	Y160M-4	Y160M-4
	Power kW	L ≤ 7	1.5	2.2	3	5.5	11	11
	Model	L>7	Y100L1-4	Y100L2-4	Y112M-4	Y132M-4	Y160L-4	Y160L-4
	Power kW	L>7	2.2	3	4	7.5	15	15Notes : The parameter above is just for reference, Model please inquiry us directly. We accept customization.

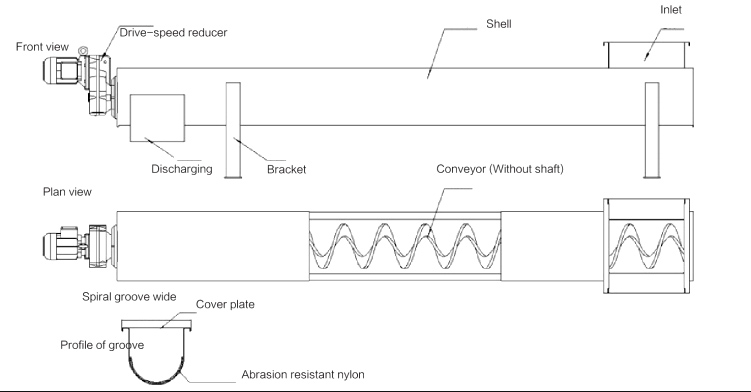

The design drawing of WLS Auger Feeder is as follows:

4.U-shaped Auger Feeder

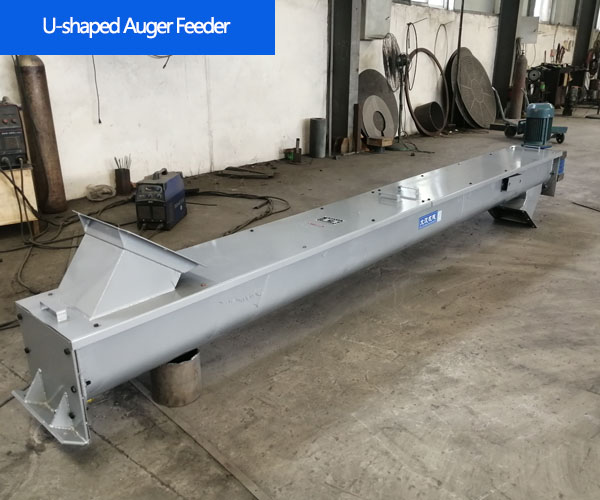

U-shaped Auger Feeder

Model: U200, U250, U300, U400, U500, U600, etc.

The U-shaped Auger Feeder is conveyed horizontally, fed openly, and the inclination angle does not exceed 25 degrees. It can be divided into single-axis drive screw and double-axis drive screw. Its biggest advantage is good sealing, dust will not fly, and it is suitable for the transportation of materials with certain requirements on the environment.

The detailed technical parameters are as follows:

Specification		Main technical performance	drive unit	drive unit			Weight (kg)
diameter	length (m)	Output (cement) t/h	speed(min)	reducer		electric motor
diameter	length (m)	Output (cement) t/h	speed(min)	model	speed ratio	Power(kw)
U 200	-10	9	60	ZQ250	23.34	1.1	726
U 200	-20	9	60	ZQ250	23.34	1.5	1258
U 250	-10	15.6	60	ZQ250	23.34	2.2	960
U 250	-20	15.6	60	ZQ250	23.34	3	1750
U 300	-10	21.2	60	ZQ350	23.34	3	1373
U 300	-20	21.2	60	ZQ350	23.34	4	2346
U 400	-10	51	60	ZQ400	23.34	5.5	1911
U 400	-20	51	60	ZQ500	23.34	11	2049
U 500	-10	87.5	60	ZQ400	23.34	7.5	2381
U 500	-20	87.5	60	ZQ650	23.34	18.5	5389
U 600	-10	134.2	45	ZQ750	23.34	22	3880
U 600	-10	134.2	45	ZQ850	23.34	55	7090
