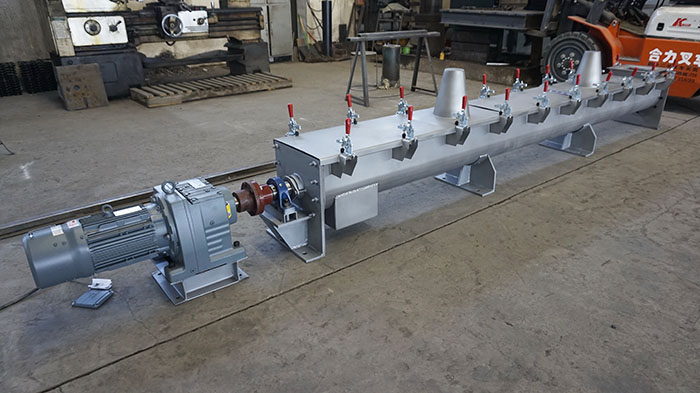

Screw conveyor is a kind of equipment for continuously conveying materials. It is a mechanical transmission device that uses spiral blades to convey materials from the input end to the output end. Screw conveyor is widely used in various industrial fields, such as mining, building materials, chemical industry, metallurgy, etc. Its inherent advantages are simple structure, wide range of conveying materials, large conveying capacity, and high cost performance.

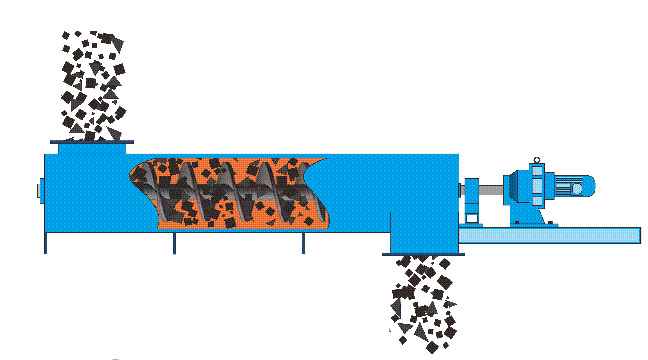

The working principle of the Screw conveyor is to use the screw blade to transport the material from the input end to the output end, and at the same time make the material rotate during the conveying process, so as to realize the conveying and mixing of the material. Screw conveyor is actually a kind of mechanical transportation equipment that uses the special structure of the spiral blade to continuously convey materials by using the gap between the spiral blade and the fixed spiral groove.
When the Screw conveyor is running, the screw blades will rotate in the spiral groove and convey the material from the input end to the output end. The material will be in constant contact with the screw blade during the conveying process, so it will continue to advance forward by relay. During the whole conveying process, the spiral blade plays a very important role, which can push, compress, turn over and mix the material.
The conveying capacity of the Screw conveyor depends on the length, diameter and peripheral speed of the screw blade. Generally speaking, the speed of the screw conveyor conveying materials does not exceed 1.5m/s, and the conveying distance usually does not exceed 70m. At the same time, due to the different materials, parameters such as spiral direction, slope, and spiral blade material are also different, and it needs to be selected according to the actual situation.
In short, the Screw conveyor is a widely used mechanical conveying equipment, which has the advantages of simple structure, large conveying capacity, stable operation, and convenient maintenance. Therefore, it has been widely used and recognized in many fields.
