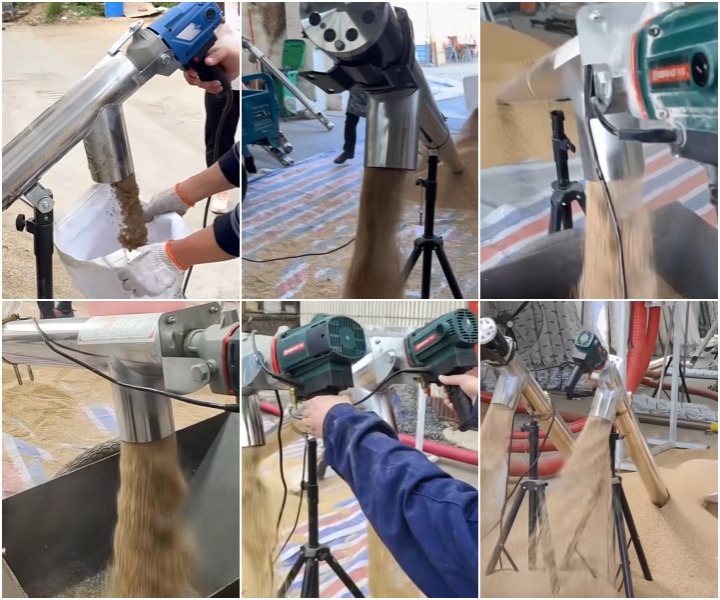

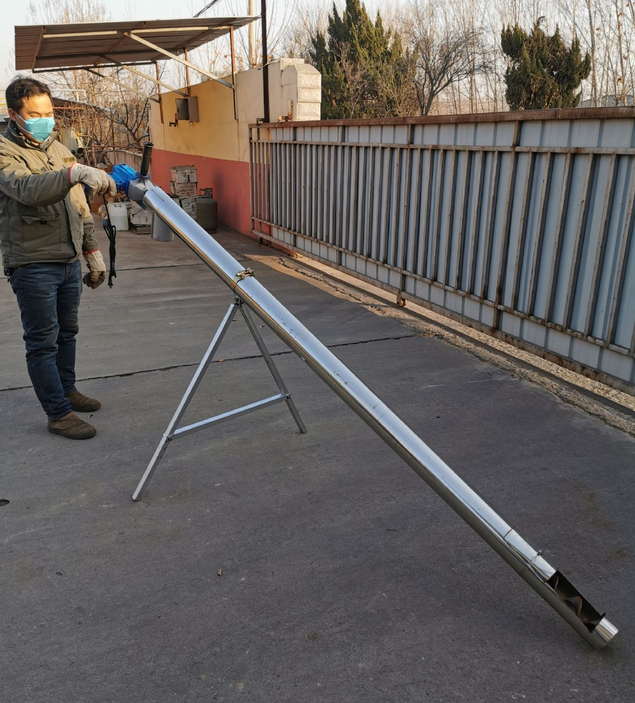

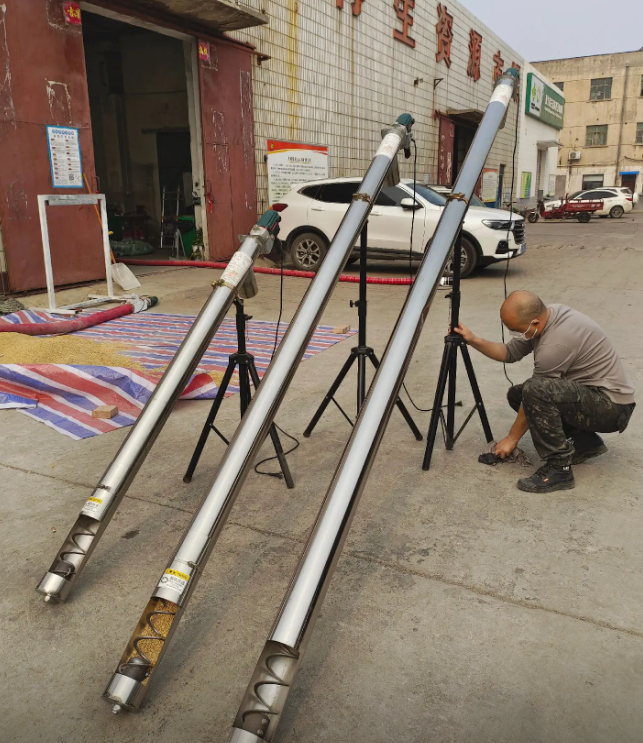

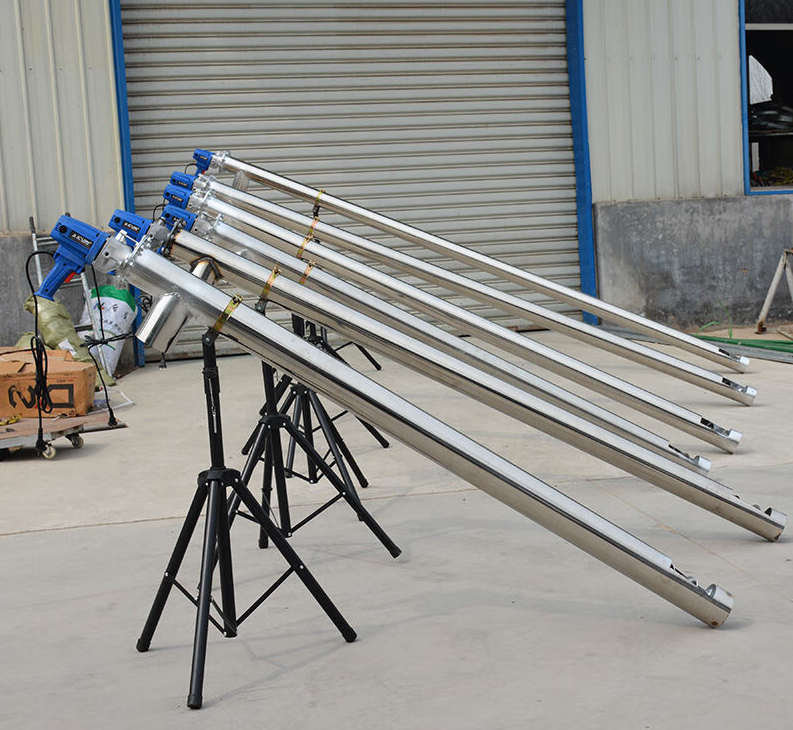

Baobab Powder Handheld Stainless Steel Grain Sucker is a handheld conveying equipment for absorbing, conveying and storing baobab powder or other grains. It is made of stainless steel and has the characteristics of corrosion resistance, easy cleaning and durability. It is particularly suitable for small-scale baobab powder production, home use or other occasions where grain suction is required.
Baobab powder handheld stainless steel grain sucker has diverse and practical functions and can meet the needs of multiple fields such as agriculture, food processing, and feed production.
Fast transportation: Through the principle of negative pressure airflow, baobab powder, grain, feed and other materials can be quickly sucked out from grain storage bins, trucks or warehouses and transported to designated locations.
Handheld operation: The equipment adopts a handheld design, which is light and easy to operate, and users can move it to different work scenes at will.
Made of stainless steel: hygienic and safe, corrosion-resistant, easy to clean, and in line with food-grade hygiene standards.
Reduced labor costs: Compared with traditional manual handling, grain suckers can greatly reduce manpower input and reduce labor intensity.
Multifunctional application: not only suitable for baobab powder, but also can be used for conveying other powdered and granular materials, such as feed, fertilizer, seeds, etc.
The operating mechanism of the handheld stainless steel grain sucker is ingenious and efficient. Its core component is the built-in high-efficiency fan. When the equipment is started, the fan starts to run at high speed. The rapid rotation of the impeller causes the air to be discharged quickly, forming a high-speed airflow at the fan outlet. At the inlet end of the fan, a relative vacuum is formed due to the large amount of air flowing out, and then a negative pressure environment is built in the pipe connected to the fan inlet. When the operator brings the suction nozzle of the grain sucker close to the baobab powder pile, under the action of this strong negative pressure, the air around the baobab powder is quickly sucked into the pipe together with the baobab powder particles. After entering the pipe, the baobab powder moves rapidly along the inner wall of the pipe under the continuous high-speed airflow, and is finally smoothly transported to the designated location.

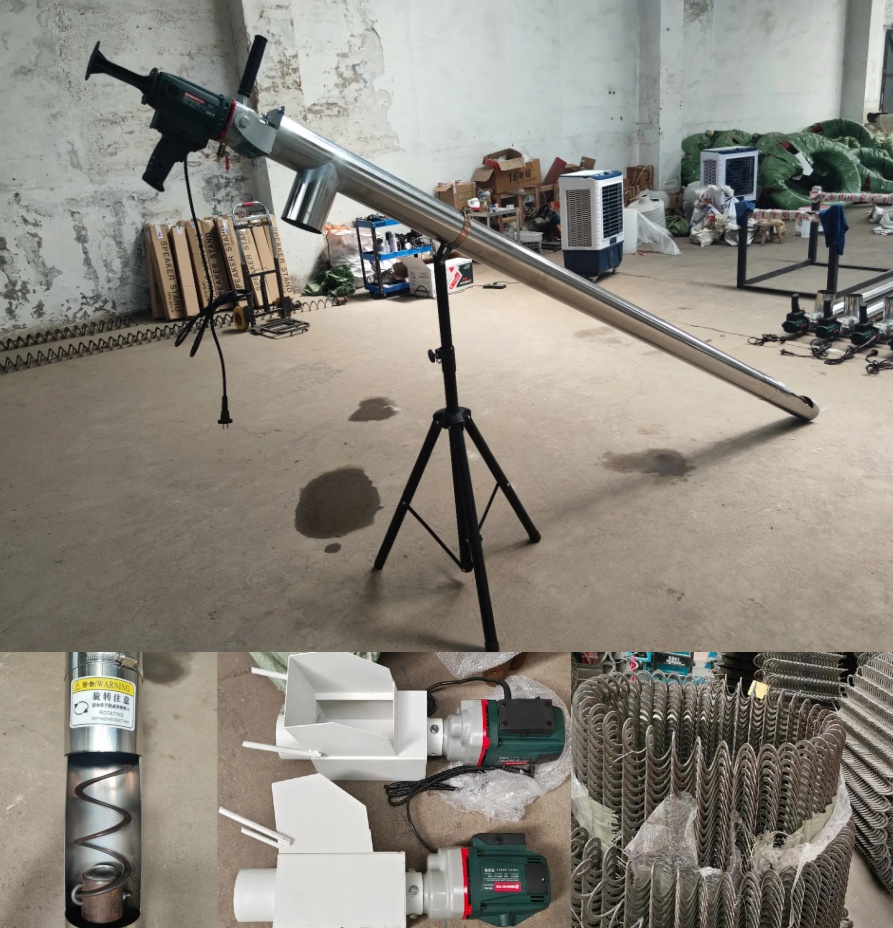

The Baobab powder handheld stainless steel grain sucker is mainly composed of three parts: power system, conveying system and control system.
The core of the power system is the built-in high-efficiency fan, which is usually driven by a high-quality motor, which can provide strong and stable power, prompting a large amount of air to flow quickly, thereby generating the required negative pressure environment in the conveying pipeline.
The conveying system covers the suction nozzle, conveying pipeline and discharge port. The suction nozzle is exquisitely designed, and the caliber is accurately calculated. It can effectively use negative pressure to quickly inhale powder when approaching the baobab powder pile.
The discharge port is set at the end of the conveying, which can flexibly control the discharge of materials.
The control system is relatively simple but fully functional. It is generally equipped with a motor controller, which can adjust the fan speed and accurately control the negative pressure according to the actual conveying needs.
| Model | Length | Pipe diameter | Motor power(kw) |
| RLS-100 | 2m | 100mm | 1.9KW |
| RLS-100 | 3m | 100mm | 1.9KW |
| RLS-100 | 4m | 100mm | 2.2KW |
Baobab powder handheld stainless steel grain sucker has a wide range of application scenarios in the production, processing and transportation of baobab powder.
Baobab powder raw material transportation: quickly transport baobab fruit raw materials from warehouses or storage areas to processing equipment to reduce the time and cost of manual handling.
Ingredient addition: In food processing where baobab powder is used as a raw material, baobab powder is accurately conveyed to the mixer or blender to ensure accurate ingredient ratio.
Loading and unloading operations: Baobab powder is quickly unloaded from a truck or container, or loaded for shipment, greatly improving loading and unloading efficiency.
Small-scale production: Suitable for small baobab powder processing workshops, the handheld design is flexible and convenient, and can meet the needs of small-scale production.
Packaging operations: Large packages of baobab powder are divided into small packages, and the grain sucker can accurately control the conveying volume to avoid waste.
Laboratory application: In food research and development laboratories, it is used for small-scale conveying and ingredient addition of baobab powder to ensure the accuracy and hygiene of the experimental process.
As a convenient and practical device, the Baobab powder handheld stainless steel grain sucker provides a convenient grain collection solution for small-scale baobab powder producers and families. Its portable design, easy cleaning and high efficiency make it an ideal choice for collecting and storing baobab powder or other granular grains.
