Fertilizer Granule Hose Screw Conveyor

Fertilizer Granule Hose Screw Conveyor is a mechanical equipment specially used for conveying fertilizer granules. It combines the flexibility of the hose and the conveying capacity of the screw conveyor. It can change the conveying angle at will and can adapt to some special scenes. It plays an important role in fertilizer production, storage and fertilization.

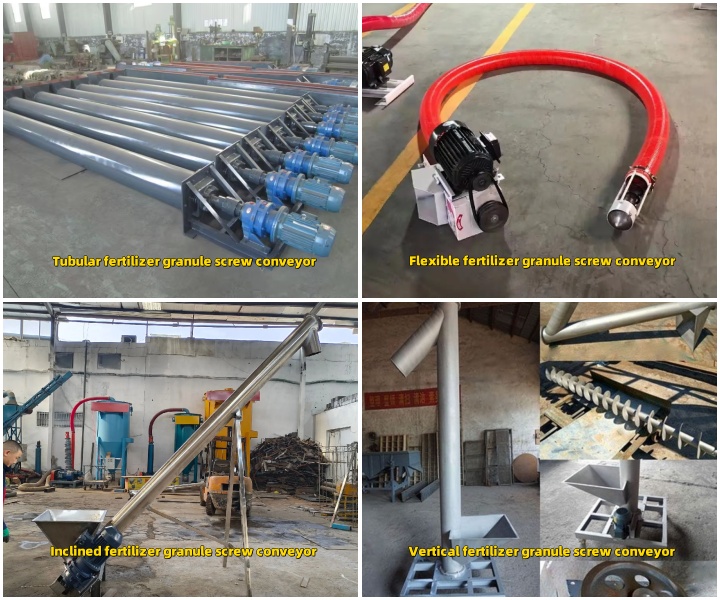

Different types of fertilizer granule screw conveyors for sale

We provide various types of fertilizer granule hose screw conveyors to meet customers with different scenes and needs.

1. Tubular fertilizer granule screw conveyor: It adopts rigid pipes and is suitable for scenes with long distances and large conveying volumes.

2. Flexible fertilizer granule screw conveyor: It adopts flexible hoses, which can be bent to adapt to complex terrain and space restrictions.

3. Inclined fertilizer granule screw conveyor: It is suitable for scenes where materials need to be conveyed from low to high places. The angle of the spiral blades is optimized to ensure that the materials can be stably conveyed even in an inclined state. The inclined design reduces the floor space and is suitable for places with limited space.

4. Vertical Fertilizer Pellet Screw Conveyor: Designed for conveying materials vertically from low to high places.

Advantages of Fertilizer Pellet Hose Screw Conveyor

Compared with traditional conveying equipment, the Fertilizer Pellet Hose Screw Conveyor has the following significant advantages.

Bendable hose: Unlike traditional rigid pipes, the Fertilizer Pellet Hose Screw Conveyor uses a flexible hose that can be easily bent to adapt to various complex terrains and space restrictions.

Avoid fertilizer moisture: Fertilizer granules are always in a closed environment during the conveying process, which can effectively avoid moisture, agglomeration and dust.

Quickly complete fertilization: In the fertilizer application process, fertilizer granules can be quickly transported to the fields to improve fertilization efficiency.

Reduce waste: Closed transportation avoids the spillage and waste of fertilizer granules and reduces production costs.

Working principle of Fertilizer Pellet Hose Screw Conveyor

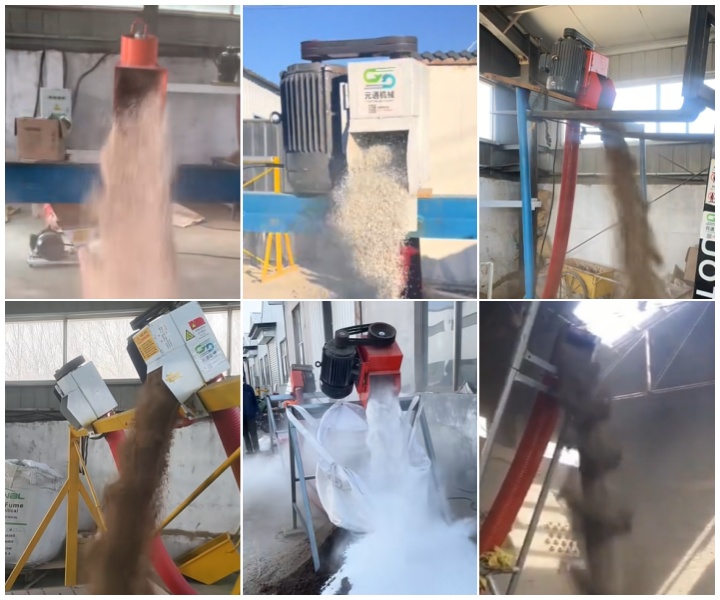

Fertilizer granules enter the hose through the feed port. The feed port is usually located at one end of the conveyor, and the material naturally falls into the hose under the action of gravity. After the drive device is started, it drives the spiral shaft and spiral blades to rotate, contact with the fertilizer particles and generate thrust. Due to the special design of the spiral blades, the material is pushed in sections in the hose and moves forward along the spiral direction of the spiral blades. When the fertilizer particles are transported to the discharge port, the material is discharged from the discharge port under the action of gravity, completing the entire conveying process.

Model parameters

Application of Fertilizer Particle Hose Screw Conveyor

The fertilizer particle hose screw conveyor plays an important role in fertilizer production, warehousing, transportation and application due to its flexibility, high efficiency and environmental protection.

Fertilizer production line: On the fertilizer production line, after the fertilizer particles are produced from the granulator, they need to be transported to the packaging machine for packaging, or transported to the storage bin for storage. The fertilizer particle hose screw conveyor can complete this conveying task efficiently and airtightly, avoiding moisture, agglomeration and dust of fertilizer particles, and ensuring the quality of fertilizer.

Raw material transportation: In addition to finished fertilizer granules, the fertilizer granule hose screw conveyor can also be used to transport the raw materials required for fertilizer production, such as urea, ammonium phosphate, potash fertilizer, etc., to meet the raw material transportation needs on the production line.

Transportation in the warehouse: In the fertilizer warehouse, fertilizer granules need to be transported from different locations in the warehouse to the loading point or application equipment. The fertilizer granule hose screw conveyor can be flexibly arranged in the warehouse to transport fertilizer granules to the designated location as needed.

Loading transportation: Transporting fertilizer granules from the warehouse to the transport vehicle is an important part of fertilizer storage.

Transportation from transport vehicles to fields: In the fertilizer transportation link, fertilizer granules need to be transported from the transport vehicle to the field. The fertilizer granule hose screw conveyor can be easily connected to the transport vehicle to transport fertilizer granules to the designated location, which is convenient for farmers to carry out fertilization operations.

The fertilizer granule hose screw conveyor has become an indispensable equipment in the fertilizer industry with its advantages of flexibility, high speed and convenience. Selecting appropriate equipment and using it correctly will significantly improve the efficiency of fertilizer production and application, and provide strong support for the modernization of agriculture.
