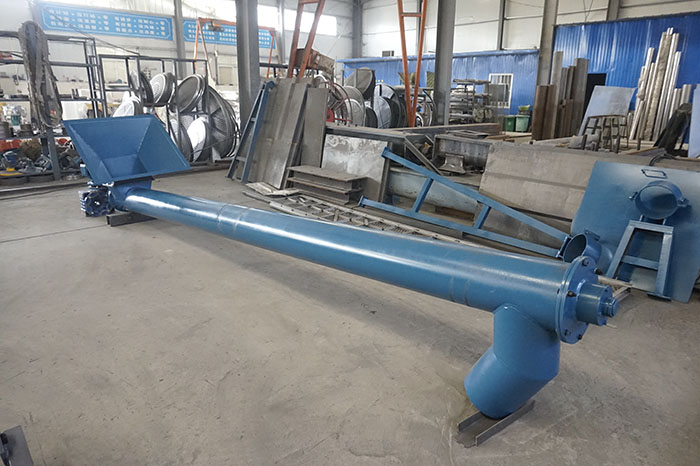

Introduction of Pipe Screw Conveyer

Pipe Screw Conveyer is a common conveyor. The entire transportation process is carried out in a closed round tube, which is evenly conveyed, uniformly conveyed, not easy to jam, and does not generate dust.

GX, single tube, double tube stainless steel Pipe Screw Conveyer

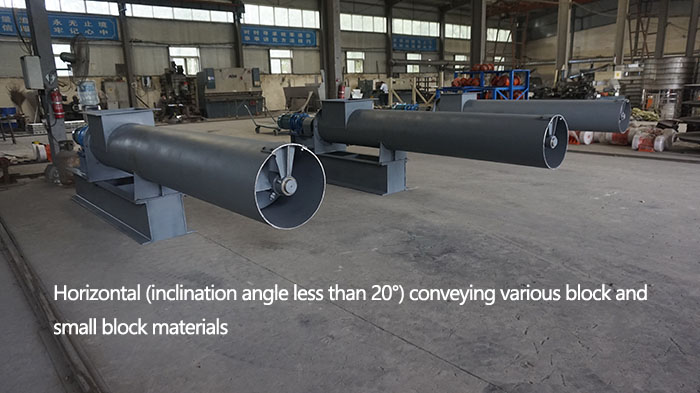

1. The Pipe Screw Conveyer is used in a horizontal state, and the inclination angle is less than 20° to convey various block and small block materials, such as acid-base chemical raw materials in chemical pharmaceuticals, grain and pulp in the food industry, etc.

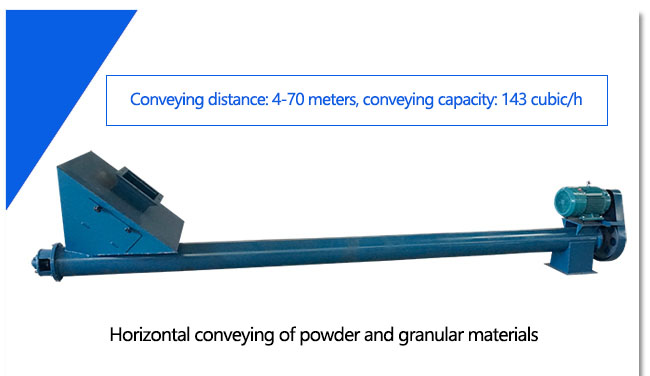

2. According to the needs of the length, every 3 meters ranges from 0.5 meters to 70 meters. It has the characteristics of choosing a series of lengths within the specified range.

3. The Pipe Screw Conveyer is not suitable for conveying materials that are perishable, highly viscous, and easy to agglomerate. The working environment temperature should be within the range of -20°C—+50°C, and the temperature of the conveying materials should be lower than +200°C.

LS, U-shaped Pipe Screw Conveyer

1. Features: novel structure, advanced technical indicators, low noise, strong adaptability, easy operation and maintenance, and flexible layout of import and export.

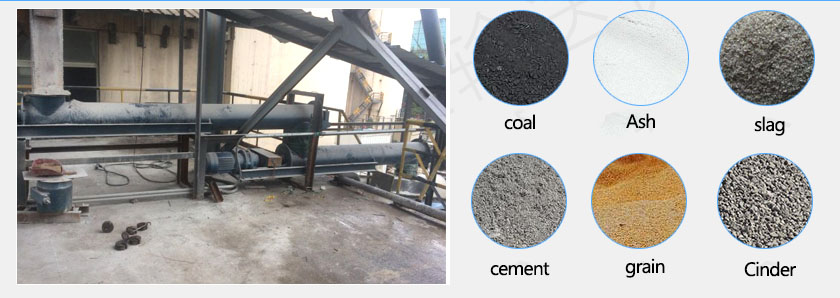

2. Scope of application: building materials, electric power, chemical industry, metallurgy, coal, aluminum magnesium, machinery, light industry, food and food industry, installation level or less than 20 degrees, material temperature lower than 200 degrees.

3. Commonly used spiral diameters are 100mm, 200mm, 250mm, 315mm, 400mm, 500mm, 600mm, etc., and the length is less than 70 meters. Special sizes and materials can be customized. High efficiency, simple structure, convenient use and maintenance, universal wheels at the bottom, flexible movement, can be manually pushed, commonly used screw diameter 100mm ~ 600mm, generally made of carbon steel or stainless steel, structural form, conveying capacity, can be customized according to user requirements length and lifting height.

The Pipe Screw Conveyer is a device that uses a motor to drive the screw to rotate and achieve the purpose of conveying through the material. It can be transported horizontally, inclined or vertically. These are common operations of the Pipe Screw Conveyer, so what exactly makes it hot?

Pipe Screw Conveyer is commonly used in working conditions and industries, especially cement and sludge processing and production. In fact, there are many transportation equipment sold in the market, but customers prefer this type when purchasing, which can be said to be very hot. The following small series summarizes why.

1. High conveying efficiency

The efficiency of the Pipe Screw Conveyer is still very strong compared to other types of belt conveyors. This may be related to the strength of the manufacturer. In general, strong manufacturers use high-quality spirochetes. In use, the screw pitch can be changed to make the resistance less and the whole conveying process smoother. Of course, the transmission efficiency is much higher.

2. Safe sealing without leakage

In the process of conveying materials, the sealing performance of various types of conveyors is relatively limited, so leakage often occurs when conveying materials. However, the pipeline screw conveyor is different in that its sealing performance is very reliable, and it is also very good from an environmental point of view.

Advantages of Pipe Screw Conveyer

Ideal for conveying dry or semi-fluid bulk materials in fully enclosed spaces, thereby reducing the threat of hazardous contamination, dust, spills and subsequent waste for flexible movement and transport from 0 to 90 degrees. Thanks to high-quality stainless steel and steel sealing technology, the interior is easy to install and requires little maintenance and cleaning.

Cons of Pipe Screw Conveyer

The conveying distance is limited to 30m, which may limit the efficiency of larger-scale manufacturing processes. Not every type of material can be transported with this type of in-line screw conveyor. It is best to avoid transporting material that sticks together or particles with high moisture content or buildup in the belt, which can cause the conveyor to clog.

As a commonly used conveying equipment, the Pipe Screw Conveyer can complete centralized conveying, separate conveying, material mixing, mixing, dehydration, customized batching, and unloading. Compared with other conveying equipment, the stacking structure is simple, the structure is simple, and the sealing is good. The advantages of multi-point loading and unloading, safe and convenient operation, and low cost. This article will introduce the pipeline screw conveyor in detail.

Use of Pipe Screw Conveyer

Pipe Screw Conveyer is divided into shaft and shaftless. The shafted Pipe Screw Conveyer is suitable for non-sticky dry powder materials and small granular materials (such as: cement, fly ash, lime, grain, etc.), and the shaftless Pipe Screw Conveyer is suitable for conveying viscous conveyors. Risk of clogging on the shaft (for example: sludge, pulp, biomass, garbage, etc.), with fully enclosed transport and easy-to-clean helical surfaces, ensuring a hygienic environment and ensuring that the delivered materials are free from contamination and leakage.

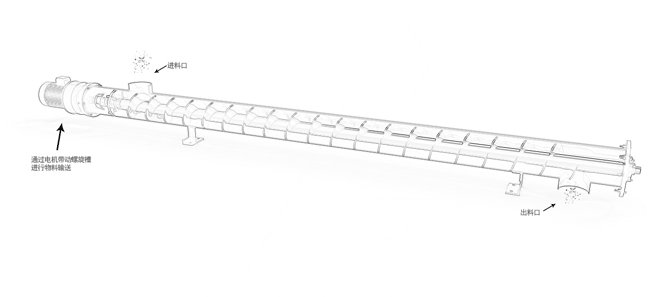

How the Pipe Screw Conveyer works

After the material is conveyed to the Pipe Screw Conveyer shell through the feed port, it is affected by centrifugal force and pipe wall friction in the internal spiral groove. As the spiral blade rotates, it slides along the spiral groove under the action of gravity, so that the material is continuously pushed forward and conveyed, and finally discharged from the outlet evenly.
