Wood Powder Screw Conveyor conveys wood powder from the feed port to the discharge port along the conveying pipe or channel through the rotation of the spiral blade. It can be used to convey wood materials such as wood powder, wood chips, and wood particles.

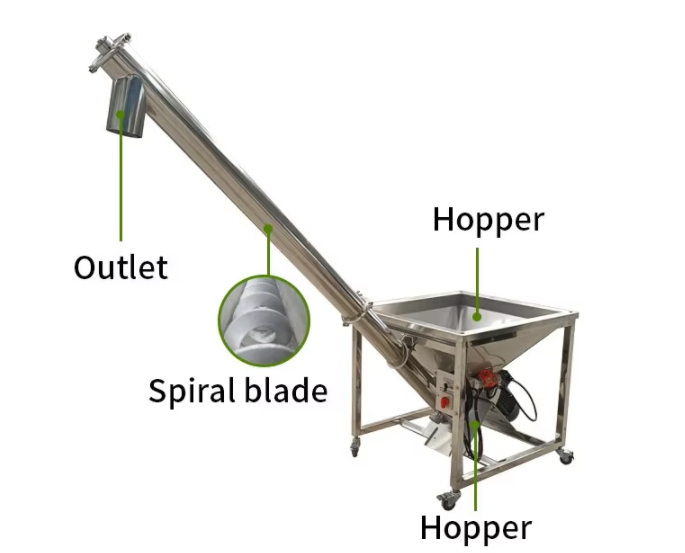

The wood powder screw conveyor has a simple structure and is mainly composed of the following parts
Screw shaft and spiral blade: The spiral shaft supports and drives the spiral blade to promote the conveying of wood powder.
Conveying pipe or channel: The path for accommodating and transmitting wood powder, usually in a spiral shape.
Transmission device: including motor and reducer, providing power and controlling the speed.
Feed port and discharge port: wood powder import and export, realizing the conveying function.
Sealing device and cleaning device: prevent leakage and keep the equipment clean.

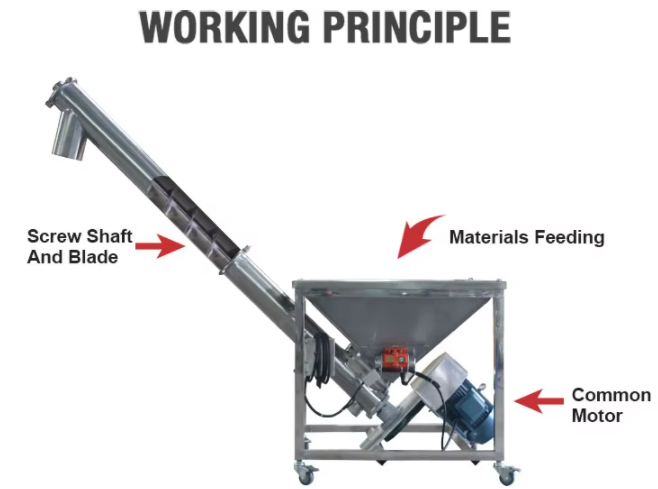

Wood powder enters the conveyor through the feed port and is pushed by the spiral blade to be conveyed along the conveying pipe or channel. The motor drives the spiral shaft to rotate, and the spiral blade rotates accordingly to convey the wood powder to the discharge port,Thereby completing the conveying process of wood powder.

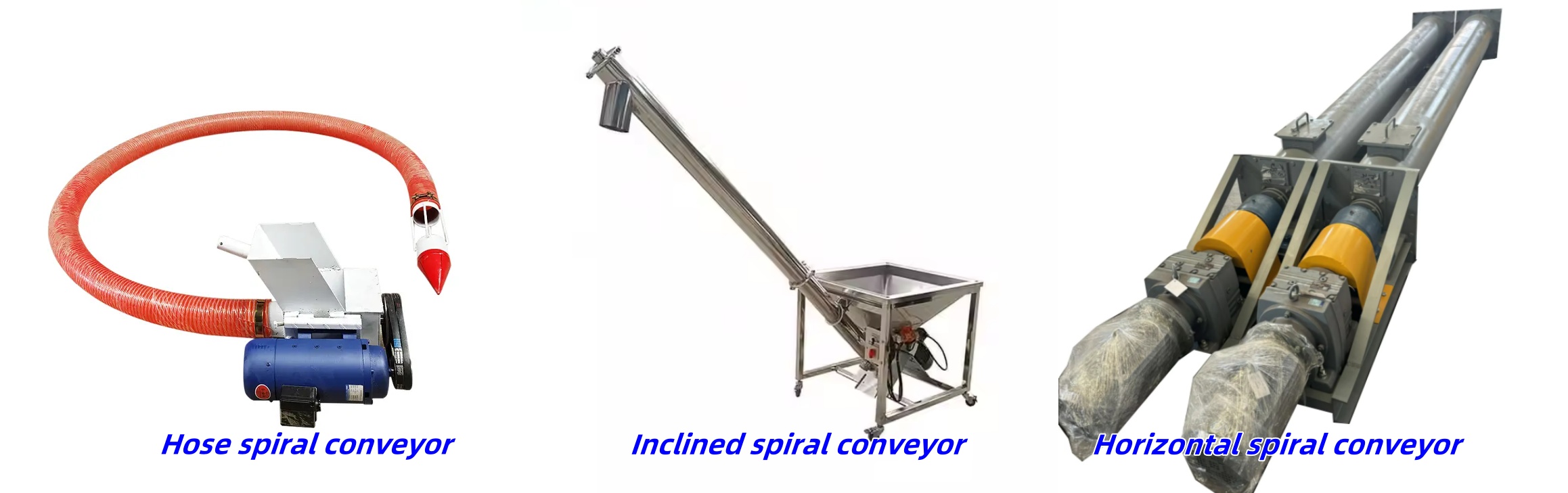

When conveying wood powder, you can choose different types of conveying equipment. We provide three different types of conveying equipment for everyone to use: hose spiral, inclined spiral, and horizontal spiral.
Hose spiral conveyor: Its main feature is that the conveying pipeline adopts a hose structure, which is suitable for scenes that require curved conveying, inclined conveying, or conveying in complex spaces.
Inclined spiral conveyor: A conveying equipment used to convey materials on inclined ground. Its conveying pipeline is inclined at a certain angle, which is suitable for occasions where it is necessary to convey in places with large height differences.
Horizontal spiral conveyor: It is used to convey materials in the horizontal direction. For the conveying of wood powder, horizontal spiral conveyors are usually suitable for occasions where long-distance conveying is required in the horizontal direction.
Wood powder spiral conveyor has different advantages and characteristics in the wood processing industry
Length and angle can be customized according to needs.
Compact structure, can save space, suitable for use in small spaces.
Driven by motor, high energy efficiency, good sealing quality, strong rigidity
High speed to ensure fast and uniform conveying.

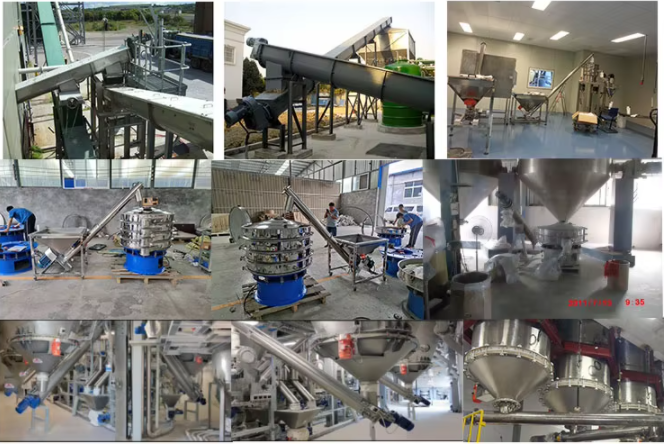

Wood powder screw conveyors are widely used in wood processing plants, woodworking workshops, biomass energy production and other fields to convey wood powder, wood chips, wood particles, etc. In these fields, wood powder screw conveyors play an important role, improving the efficiency of wood powder conveying and reducing labor costs.
Wood processing plant: used for conveying and processing wood powder.
Paper mill: conveying wood fiber, waste, etc.
Woodworking industry: used for conveying and processing wood powder.
As an efficient and reliable conveying equipment, wood powder screw conveyors play an important role in the field of wood powder conveying. Through its efficient and stable conveying capacity and convenient maintenance and cleaning characteristics, it provides a reliable solution for wood powder conveying in wood processing plants and biomass energy production and other fields.
