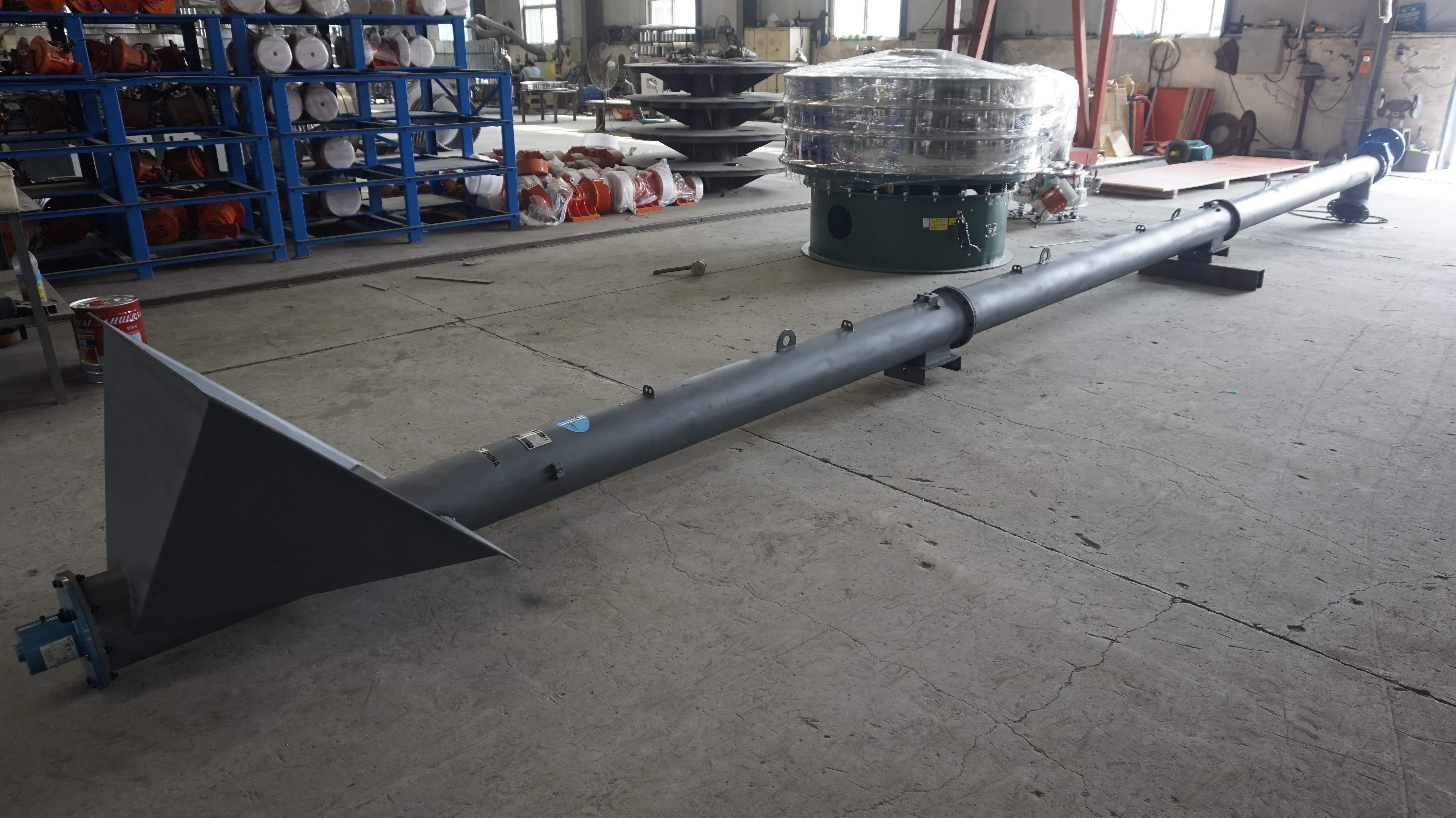

Carbon Black Powder Screw Conveyor is a device specially used for conveying carbon black powder. Since carbon black powder is a fine, loose, and easy-to-fly powdery material, we generally use a closed screw conveyor when conveying carbon black powder. It can also be used to convey soil, powder, fertilizer powder, etc.

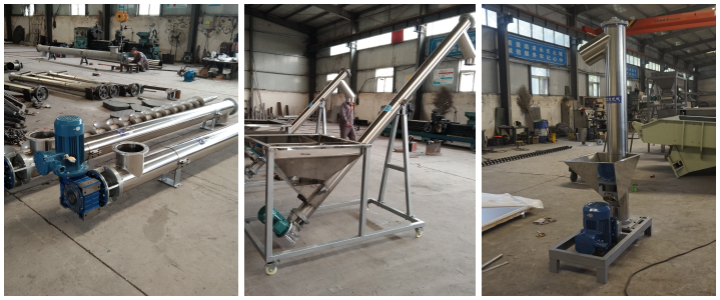

The conveying angle of the carbon black powder screw conveyor is one of the important factors affecting its conveying performance and service life. The following are carbon black powder screw conveyors with different conveying angles.
Horizontal conveying: suitable for long-distance conveying. For easy-to-flow powder materials such as carbon black powder, horizontal conveying is generally selected, which can ensure that the carbon black powder flows smoothly inside the conveyor and reduce the possibility of blockage and poor flow.
Inclined conveying: The conveying angle is generally between 10° and 45°. For easy-to-flow materials such as carbon black powder, a moderate inclination angle can help improve the conveying efficiency.
Vertical conveying: suitable for scenes where vertical upward conveying to the material yard is required, but the conveying effect is not as good as horizontal conveying.
Good sealing: Since carbon black powder is fine and easy to fly, we use a fully enclosed structure and equip it with a dust removal device to reduce environmental pollution.
Conveying at different angles: We have different types of screw conveyors that can convey water, tilt, and vertically.
Customizable: We can customize the appropriate screw conveyor based on your conveying environment to achieve the optimal conveying requirements.

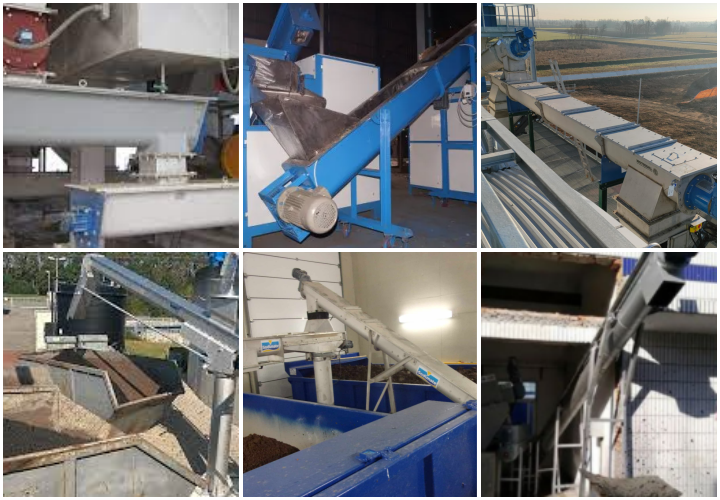

Carbon black production companies: Carbon black powder can be conveyed to storage tanks and processing equipment.
Rubber industry: Rubber powder is conveyed from the production process to the rubber product processing production line.
Plastic industry: The transported carbon black powder is conveyed from the vehicle or warehouse to the plastic raw material processing.
Carbon black powder enters the casing through the feed port, and the drive device drives the screw shaft and the spiral blades to start rotating. The rotating spiral blades push the carbon black powder forward, and the material is stably conveyed along the direction of the spiral pipe and finally discharged from the discharge port.

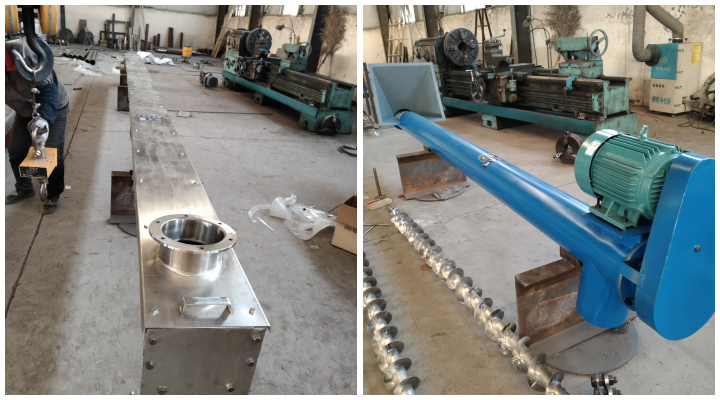

Carbon steel: Suitable for dry and highly corrosive materials, with relatively low prices.

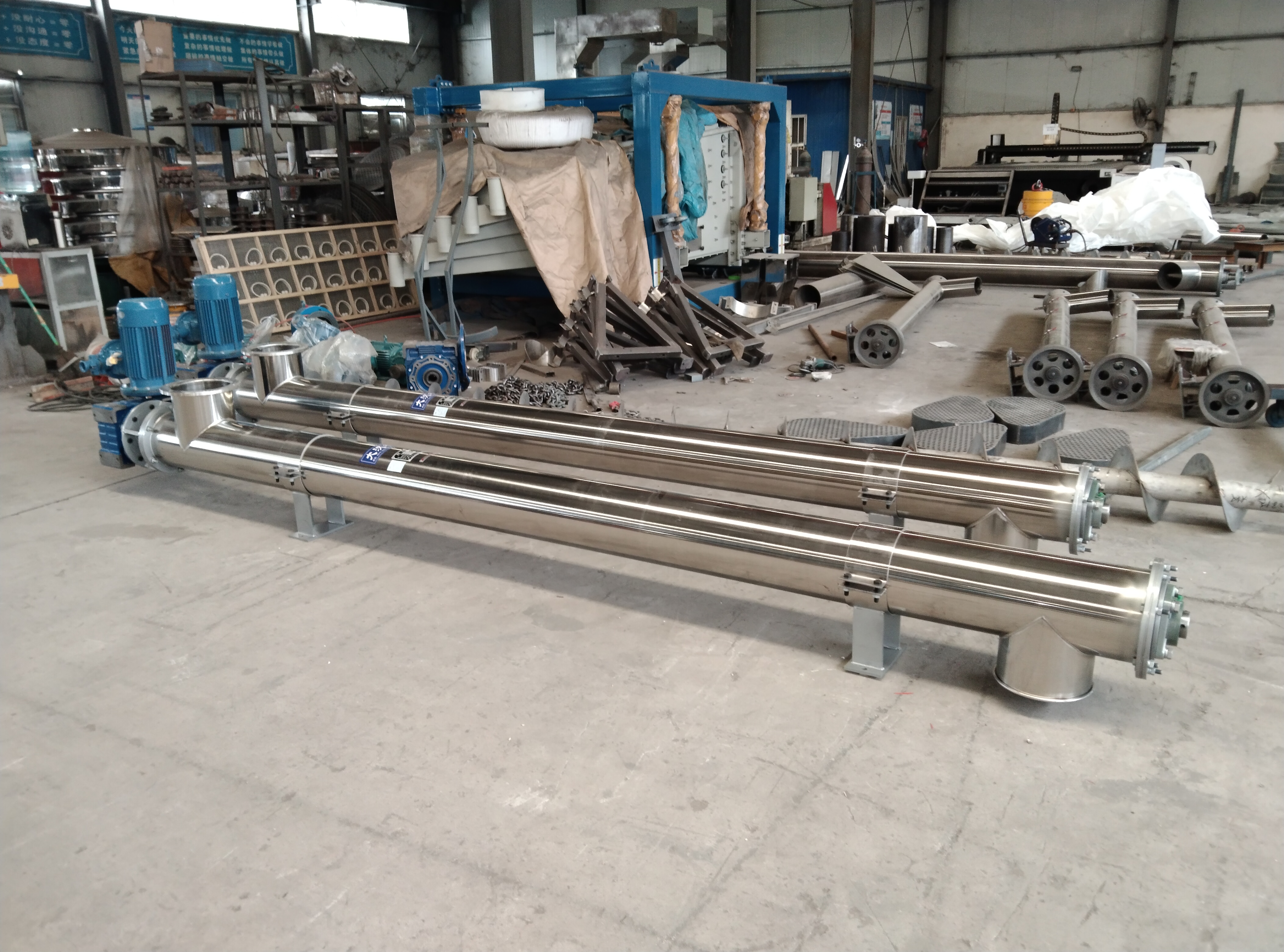

Stainless steel: Suitable for scenarios with high requirements for material purity, good corrosion resistance and high sanitation.
Carbon black powder screw conveyor is an indispensable equipment in the production and processing of carbon black. By reasonably selecting materials, structures and process parameters, safe and efficient carbon black powder transportation can be achieved.
